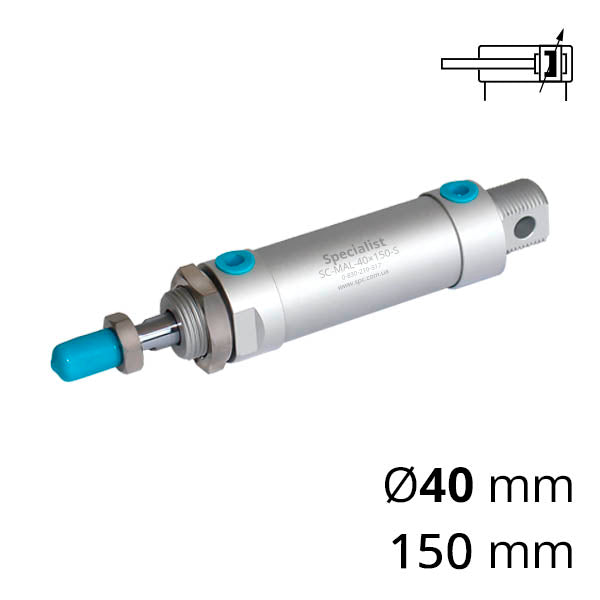

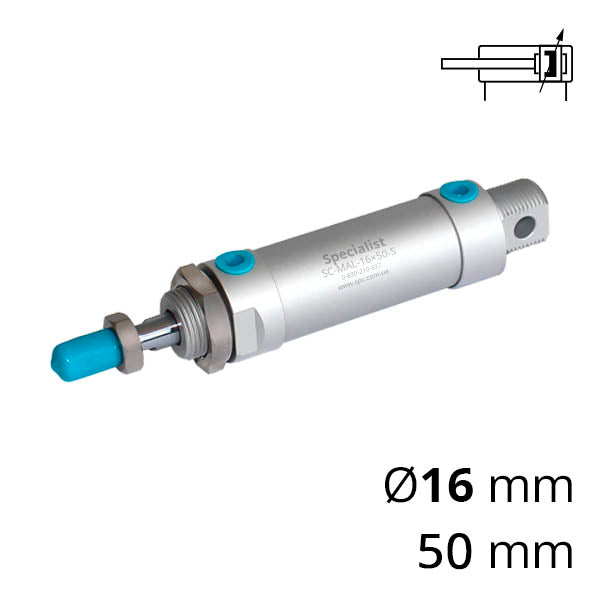

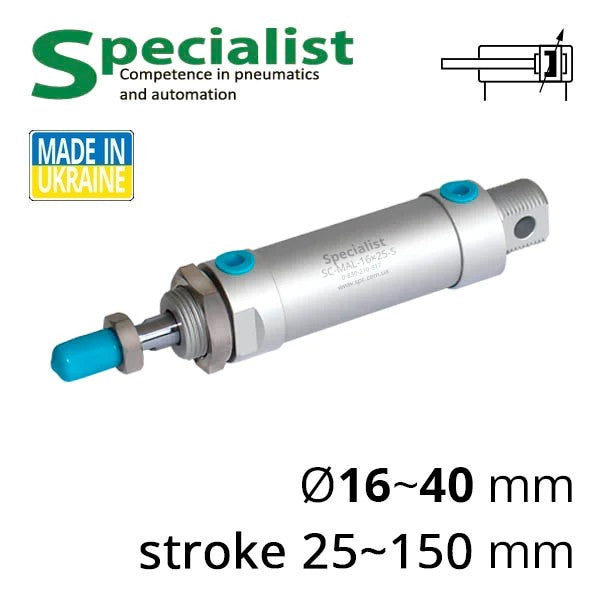

SC-MAL series pneumatic cylinders with double action and piston diameter from 16 to 40 mm differ from standard round pneumatic cylinders ISO 6432 (series SC-MS) as they are demountable and repairable, and also have different dimensions. Such cylinders are often found on Chinese-made machines.
SC-MAL cylinders are supplied with a magnet (by default) and without (upon request).
| Diameter, mm | 16 | 20 | 25 | 32 | 40 |
|---|---|---|---|---|---|
| Connection Thread | M5 | G1/8″ | G1/8″ | G1/8″ | G1/4″ |
| Maximum Stroke Length | 500 mm | 800 mm | 1200 mm | ||
| Action | single or double action | ||||
| Working Medium | Air after 40 μm filter | ||||
| Operating Pressure Range | 1~9 bar | ||||
| Max. Input Pressure | 12 bar | ||||
| Operating Temperature Range | -10 ~ 70 °C (with dry air free of moisture) | ||||
| Damping | Damping Washer | ||||
| Type of Magnetic Sensor | SC-CMS-G or SC-DMS-G | ||||
| Sensor Mounting Type | SC-MAL-B-S | ||||
The company "Specialist" is a manufacturer of pneumatic cylinders — SC-MAL are manufactured within 1-3 working days. It is possible to design other non-standard products based on the series — pneumatic cylinders with specific mounts, sizes and materials upon customer request.
Please note that pneumatic cylinders are goods that can only be returned in case of malfunction.
