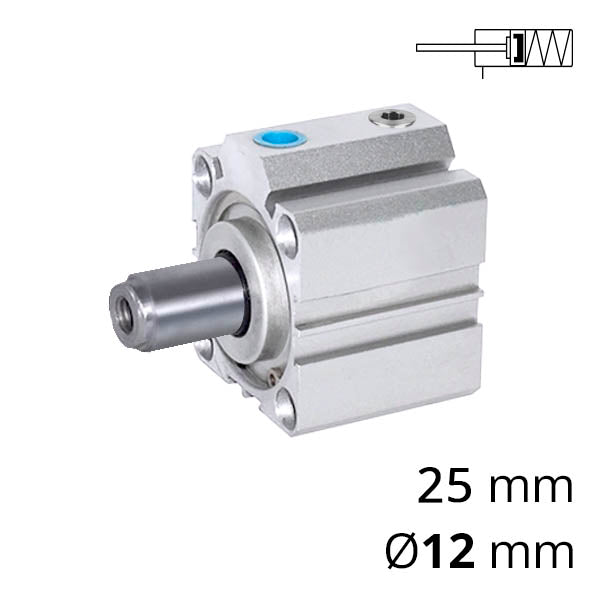

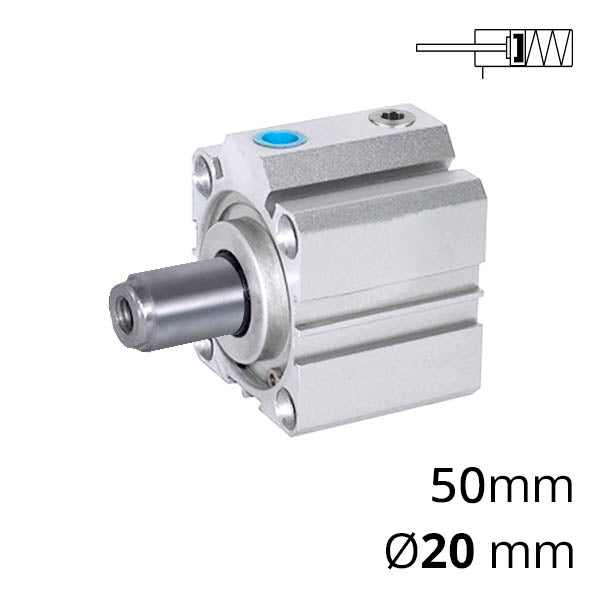

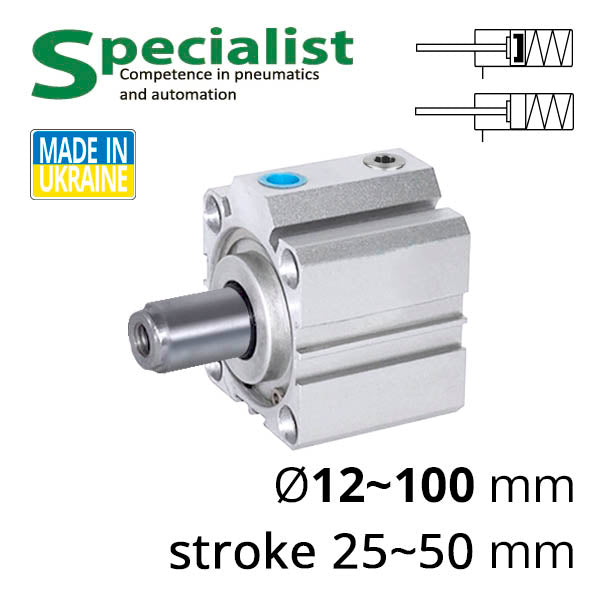

Compact Pneumatic Cylinders single-acting with return spring in rod-less chamber and single-ended piston rod of the SC-STA series have an extended piston rod in the absence of air supply.
These cylinders are manufactured with a piston diameter from 12 to 100 mm and a stroke length in multiples of 5 mm, but not more than 30 mm. This series does not have a built-in cushioning device, and cushioning disks are used to absorb the impact force of the piston against the cap. Short-stroke pneumatic cylinders of this type are frequently found on Chinese made machinery.
At the customer's request, it is possible to manufacture SC-STA pneumatic cylinders:
- with a magnet to allow piston position control using a hall switch (denoted by the letter "S" in the code)
- without a magnet on the piston, allowing for further reduction in overall dimensions.
Table 1 — Technical Specifications of SC-STA Single-Acting Pneumatic Cylinders (normally extended)
| Piston diameter, mm |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
| Maximum stroke length, mm |
60 |
100 |
120 |
130 |
| Connection thread |
M5×0.8 |
G1/8" |
G1/4" |
G3/8" |
| Type of action |
Single-acting with return spring in rod-less chamber |
| Operating medium |
Compressed air filtered to no less than 40 microns |
| Operating pressure range |
0.1-10 bar |
| Maximum input pressure |
12 bar |
| Operating temperature range |
−10-70℃ |
| Cushioning |
Cushioning disk |
| Sensor type (for SC-STA cylinder with magnet on piston) |
SC-CS1-J |
The SC-STA single-acting pneumatic cylinder with return spring in rod-less chamber ensures extension of the piston rod when pressure is released. The pneumatic cylinder has a single inlet port for connection to the pneumo circuit. When compressed air is supplied to the piston chamber, the rod extends.
