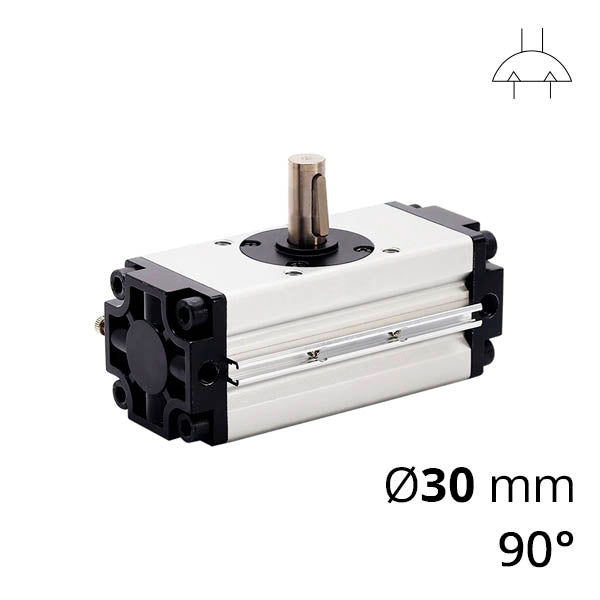

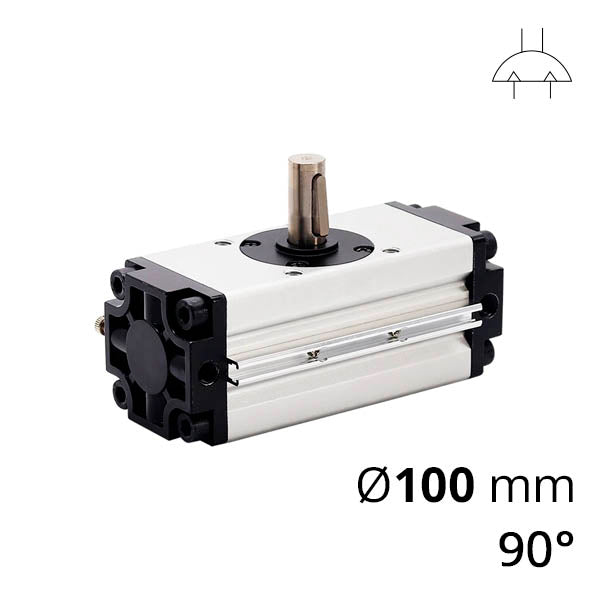

SC-CDRA rotary pneumatic cylinder 90 degrees

Do you have any questions about the product?
We will be happy to answer them in messengers

SC-CDRA rotary pneumatic cylinder 90 degrees

Name: SC-CDRA rotary pneumatic cylinder 90 degrees
Brand: Specialist
SKU: SC-CRA-30×90

On order

Piston diameter

100 mm 80 mm 63 mm 50 mm 30 мм

Кут повороту

90°

Model

Manufacturer

Specialist

from 0,00 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 5 variants


Name

Model Price Availability Qty

Action

SC-CRA-30×90

SC-CDRA rotary pneumatic cylinder 90 degrees

Piston diameter=30 мм Кут повороту=90°

SC-CRA-30×90

0,00 UAH

Pre-Order

SC-CRA-50×90

SC-CDRA rotary pneumatic cylinder 90 degrees

Piston diameter=50 mm Кут повороту=90°

SC-CRA-50×90

0,00 UAH

Pre-Order

SC-CRA-63×90

SC-CDRA rotary pneumatic cylinder 90 degrees

Piston diameter=63 mm Кут повороту=90°

SC-CRA-63×90

0,00 UAH

Pre-Order

SC-CRA-80×90

SC-CDRA rotary pneumatic cylinder 90 degrees

Piston diameter=80 mm Кут повороту=90°

SC-CRA-80×90

0,00 UAH

Pre-Order

SC-CRA-100×90

SC-CDRA rotary pneumatic cylinder 90 degrees

Piston diameter=100 mm Кут повороту=90°

SC-CRA-100×90

0,00 UAH

Pre-Order

Technical specifications

Кут повороту

90°

Діаметр поршню

from 30 to 100 mm

Delivery time

from 60 to 90 days

Description

The rotary pneumatic cylinders of the SC-CDRA series are supplied with a rotation angle of 90° or 180°. With single and double-ended output shaft with keyway. Cylinders of this series can also be manufactured with adjustable rotation angle. A reed switch mounted on the cylinder body is used to determine the piston position.

Specifications of Rotary Pneumatic Cylinders SC-CDRA
Diameter, mm		30	50	63	80	100
Operating Medium		Air
Mode of Operation		Double acting
Maximum Operating Pressure		10 bar (1 MPa)
Minimum Operating Pressure		1 bar (0.1 MPa)
Ambient and Operating Temperature		0—60° C (non-freezing)
Backlash		within 1° (Ø30 has no backlash under pressure due to built-in restrictor)
Angle Tolerance		+4° 0
*Lubrication		No lubricant supply required
Output Torque (N⋅m)		1.9	9.3	17	32	74
Allowable Kinetic Energy	Without Cushioning	0.01	0.05	0.12	0.16	0.54
Allowable Kinetic Energy	With Air Cushioning	—	0.98	1.5	2.0	2.9
Oscillation Time Range, s/90°		0.2~1	0.2~2	0.2~3	0.2~4	0.2~5
Connection		M5×0.8	Rc1/8″	Rc1/8″	Rc1/4″	Rc3/8″
