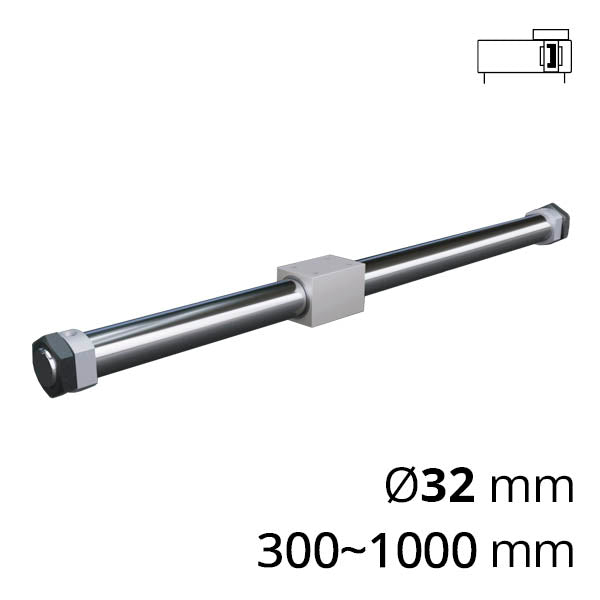

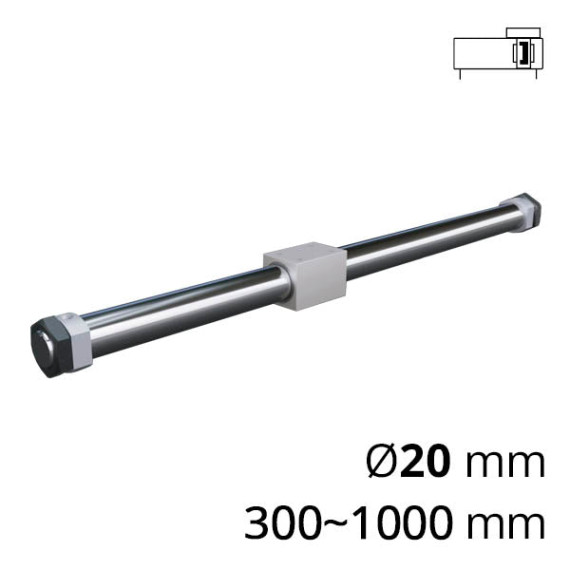

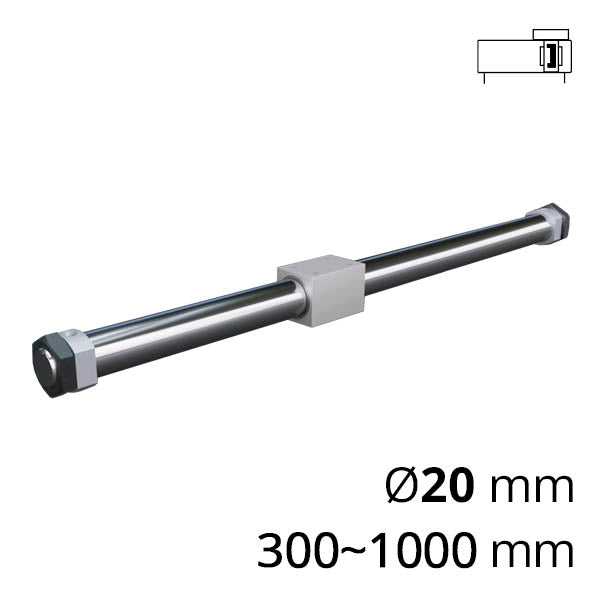

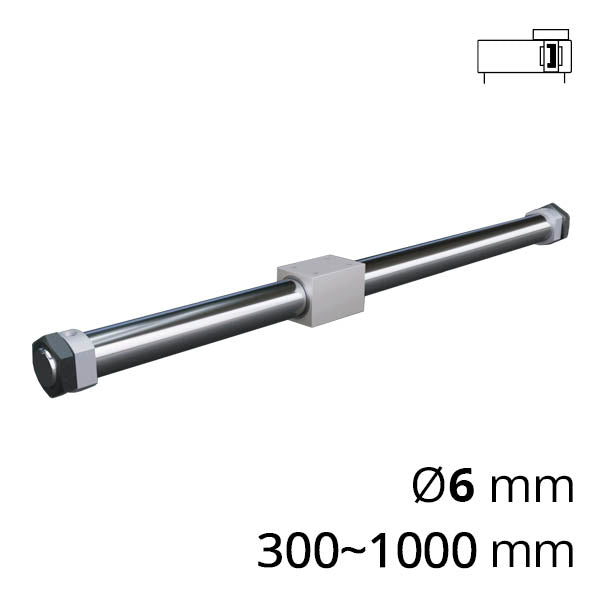

Magnetic Linear Rodless Pneumatic Cylinders SC-CG Series are pneumatic cylinders with a magnetic connection between the piston and the moving carriage, making their length twice as short, and their sealing improved due to the absence of a rod aperture that can cause air leakage when the gaskets wear out.
Company "Specialist" directly imports these magnetic air cylinders to Ukraine with piston diameters from 6 to 63 mm.
| Diameter | 6 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 63 |
|---|---|---|---|---|---|---|---|---|---|
| Maximum Stroke, mm | 300 | 500 | 600 | 1000 | |||||
| Action | Double Action, Linear Action | ||||||||
| Working Medium | Air (after 40 μm filtration) | ||||||||
| Working Pressure Range | 1.8 ~7 Bar | ||||||||
| Working Temperature Range | -10 ~ +60 °C (with dry air without moisture) | ||||||||
| Speed of Movement | 50 ~ 1000 mm/s | ||||||||
| Damping | Rubber washers | ||||||||
| Connection Thread | M5x0.8 | G1/8″ | G1/4″ | ||||||
