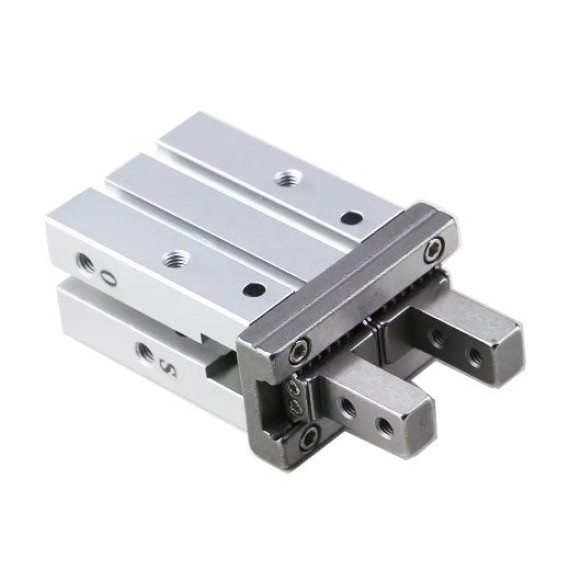

Pneumatic gripper with jaws of parallel type SC-MZH2 series
On order
Piston diameter
Model
SC-MZH2
Manufacturer
Specialist
from 0,00 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Models
Found 7 variants
Name
Model
Price
Availability
Qty
Action
Pneumatic gripper with jaws of parallel type SC-MZH2 series

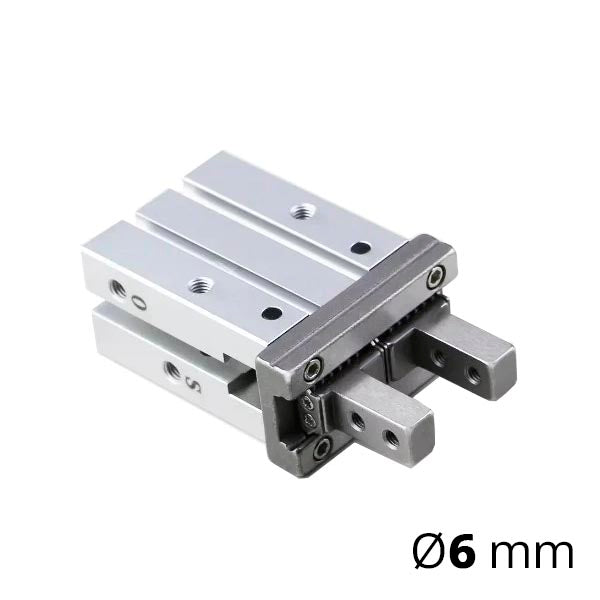

Piston diameter=6 mm
0,00 UAH
In Stock
Pneumatic gripper with jaws of parallel type SC-MZH2 series
Piston diameter=10 mm
0,00 UAH
In Stock
Pneumatic gripper with jaws of parallel type SC-MZH2 series

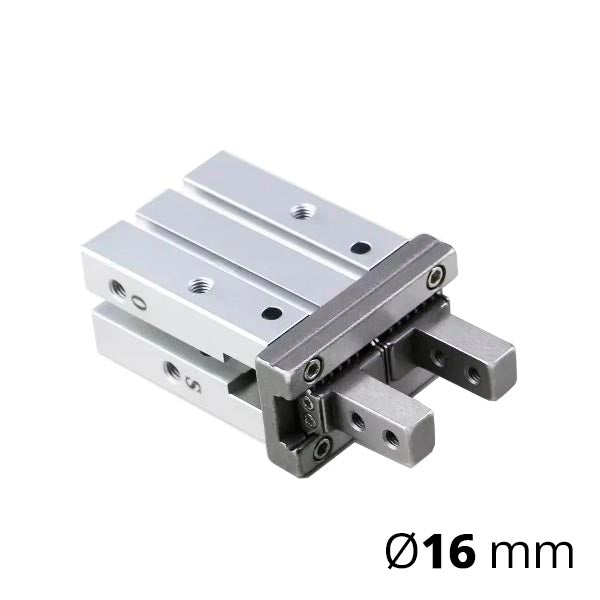

Piston diameter=16 mm
0,00 UAH
In Stock
Pneumatic gripper with jaws of parallel type SC-MZH2 series
Piston diameter=20 mm
0,00 UAH
In Stock
Pneumatic gripper with jaws of parallel type SC-MZH2 series
Piston diameter=25 mm
0,00 UAH
In Stock
Pneumatic gripper with jaws of parallel type SC-MZH2 series

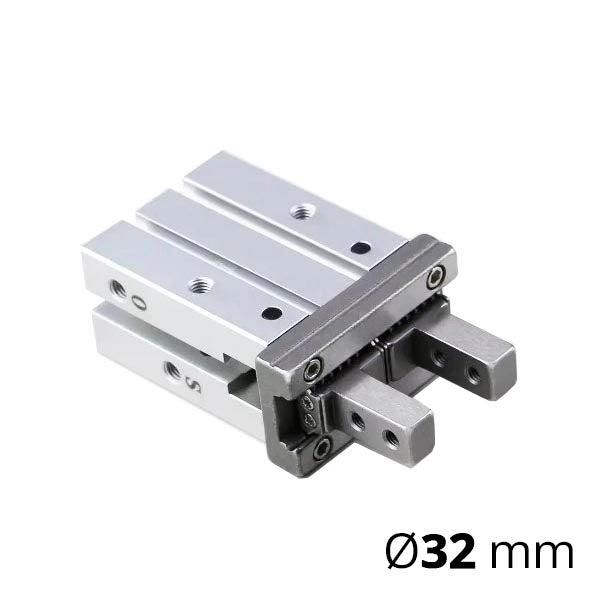

Piston diameter=32 mm
0,00 UAH
In Stock
Pneumatic gripper with jaws of parallel type SC-MZH2 series
Piston diameter=40 mm
0,00 UAH
In Stock
Request a variant
Fill in the form and we will get back to you regarding this variant.
Technical specifications
Description
SC-MZH2 series pneumatic grippers are part of the parallel-type slider pneumatic grippers, designed for gripping objects with two parallel "jaws" on which inserts can be attached to mimic the shape of the object that needs to be held.
The SC-MZH2 grippers are classified into three types according to their operation:
- Double-acting, with two metric-threaded holes for connection to the pneumatic line;
- Normally closed single-acting, with one hole for compressed air supply and a return spring, where the jaws close when air is supplied;
- Normally open.
The presence of guides in these grippers enhances the precision of jaw movement and structural rigidity. Grippers of this series are equipped with a magnet and can be used with a jaw state sensor.
| Diameter, mm | 6 | 10 | 16 | 20 | 25 | 32 | 40 | |
|---|---|---|---|---|---|---|---|---|
| Operating Medium | Air | |||||||
| Operating Pressure Range, bar | Double-Acting | 1.5-7 | 2-7 | 1-7 | 1-7 | |||
| Single-Acting | 3-7 | 5-7 | 2.5-7 | 2.5-7 | ||||
| Ambient Temperature | −10…60° C | |||||||
| Repeatability, mm | ±0.01 | ±0.02 | ||||||
| Maximum Operating Frequency, cycles/min | 180 (120 for SC-MHZL2 Series) | 60 | ||||||
| Magnetic Switch (Optional) | Not Required | |||||||
| Connection | M3×0.5 | M5×0.8 | ||||||
