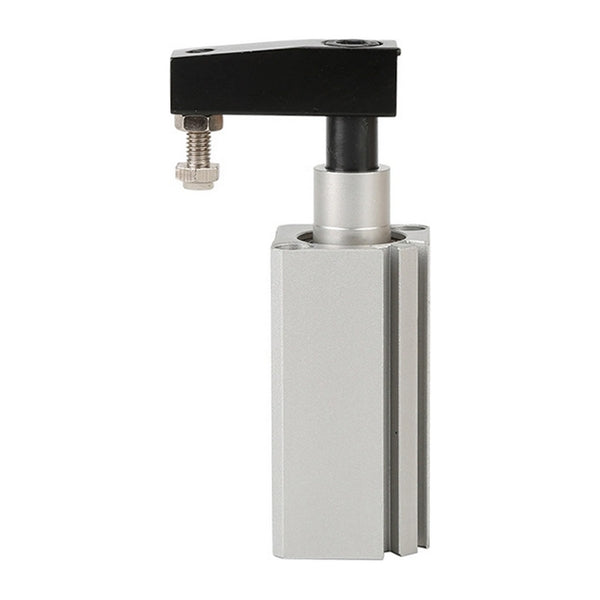

Name: Rotary clamping cylinder SC-SCR
Brand: Specialist
SKU: SC-SKL-12×10

All about the product
Technical specifications
Reviews (0)
Similar Products

Technical specifications

Діаметр

from 12 to 63 mm

Кут повороту

90°

Хід

from 10 to 50 mm

Delivery time

from 60 to 90 days

Description

The SC-SCR series rotary pneumatic cylinder provides simultaneous quick rotation with clamping for assembly, joining, and welding operations. By clamping to another support, they secure a pipe or another object and hold it firmly. Air swing clamps are used in machine building, textile manufacturing, food production, etc.

Features of standard SC-SCR swing clamps:

rotation and clamping in one movement;
aluminium body resistant to corrosion;
NBR rubber seals;
magnet on piston and 4 slots in the body, allowing the use of position sensors (reed switches);

Table 1 — Technical Specifications of SC-SCR Pneumatic Swing Clamp Cylinders
Diameter, mm	12	20	32	50
Action	Double action
Working medium	Air
Pressure range	from 150 to 950 kPa
Ambient and operating temperature	0—60° C
Piston speed, mm/s	from 30 to 400
Rotary stroke, mm	7	10	15	19
Clamping stroke, mm	10,20	10,20	10,20	25,50
Rotating angle	90±10°
Rotation direction	L — left (clockwise) R — right (counterclockwise)
Cushioning	Rubber washer
Lubrication	No lubrication
Connection	M5×0.8		Rc1/8″	Rc1/4″
Magnetic device	With magnetic device
