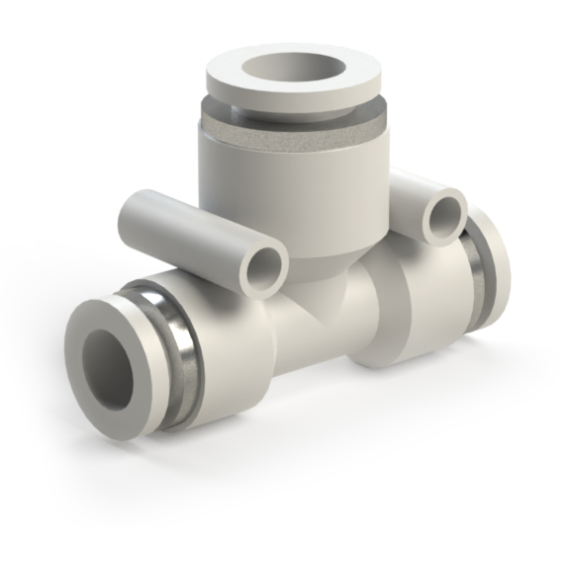

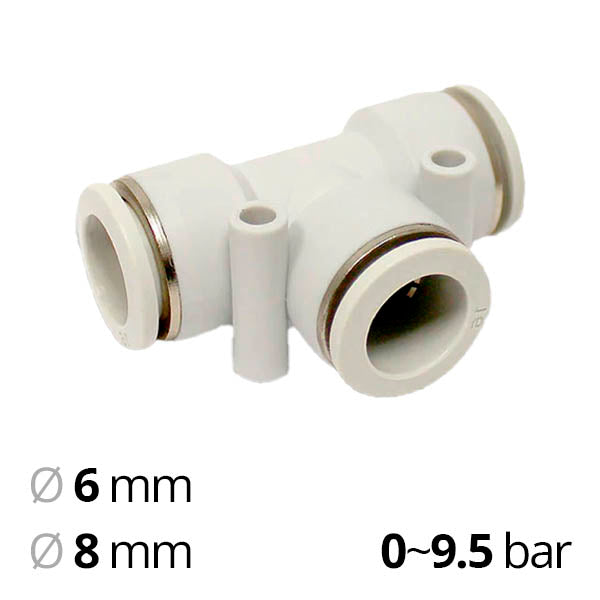

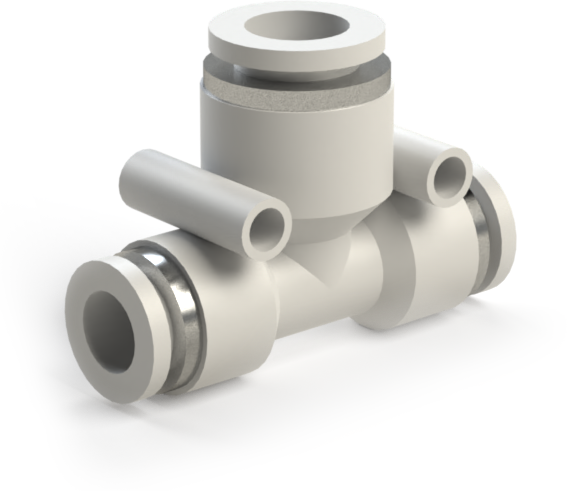

Collet adapter-tee SF-EPEW for pipes

Name: Collet adapter-tee SF-EPEW for pipes
Brand: Specialist
SKU: SF-EPEW 6-4
Price: 46.32 UAH
Availability: InStock

In Stock

Діаметр цанги (більший)

6 мм 8 мм 10 мм 12 мм

Діаметр цанги (меньший)

4 мм 6 мм 8 мм 10 мм

Model

Manufacturer

Specialist

from 46,32 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 4 variants


Name

Model Price Availability Qty

Action

SF-EPEW 6-4

Collet adapter-tee SF-EPEW for pipes

Діаметр цанги (більший)=6 мм Діаметр цанги (меньший)=4 мм

SF-EPEW 6-4

46,32 UAH

In Stock

SF-EPEW 8-6

Collet adapter-tee SF-EPEW for pipes

Діаметр цанги (більший)=8 мм Діаметр цанги (меньший)=6 мм

SF-EPEW 8-6

63,36 UAH

In Stock

SF-EPEW 10-8

Collet adapter-tee SF-EPEW for pipes

Діаметр цанги (більший)=10 мм Діаметр цанги (меньший)=8 мм

SF-EPEW 10-8

75,54 UAH

In Stock

SF-EPEW 12-10

Collet adapter-tee SF-EPEW for pipes

Діаметр цанги (більший)=12 мм Діаметр цанги (меньший)=10 мм

SF-EPEW 12-10

104,76 UAH

In Stock

Technical specifications

Tube O.D.

4mm, 6mm, 8mm, 10mm, 12mm

Connection type

Collet fitting

Body material

Plastic

Inlet pressure

9.5 bar

Variations

Adapter

Fitting type

Tee T

Description

At "Specialist", you can purchase the SF-EPEW tee adapter with a quick-release collet connection for pneumatic tubing. It features two collets for tubes of the same diameter (smaller): 4, 6, 8, 10 mm, and one collet for a tube of larger diameter: 6, 8, 10, 12 mm.

The fittings are made of technical plastic. An NBR seal is used for sealing in the pipeline. The plastic collet fittings are designed for use with compressed air at pressures up to 9.5 bar. The working temperature range is minus 10 to plus 60 °C.

The SF-EPEW plastic fitting is intended for compressed air. Thanks to the collet clamp, the quick-release tee makes the installation of pneumatic lines and connection of pneumatic tools more convenient.
