Manual pneumatic distributor 3/2 series SV-I-H-32 with manual control
In Stock
Thread size
Model
SV-I-H-32-06
Manufacturer
Specialist
from 552,24 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Models
Found 4 variants
Name
Model
Price
Availability
Qty
Action
SV-I-H-32-15
Manual pneumatic distributor 3/2 series SV-I-H-32 with manual control

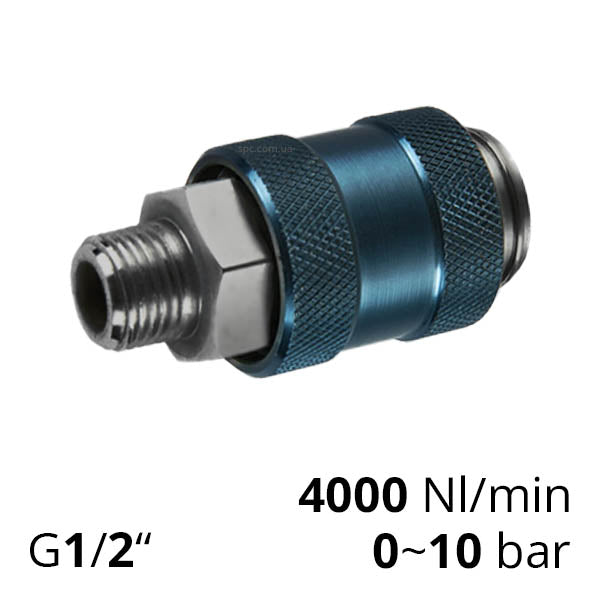

Thread size=G 1/2
SV-I-H-32-15
966,72 UAH
In Stock
SV-I-H-32-10
Manual pneumatic distributor 3/2 series SV-I-H-32 with manual control

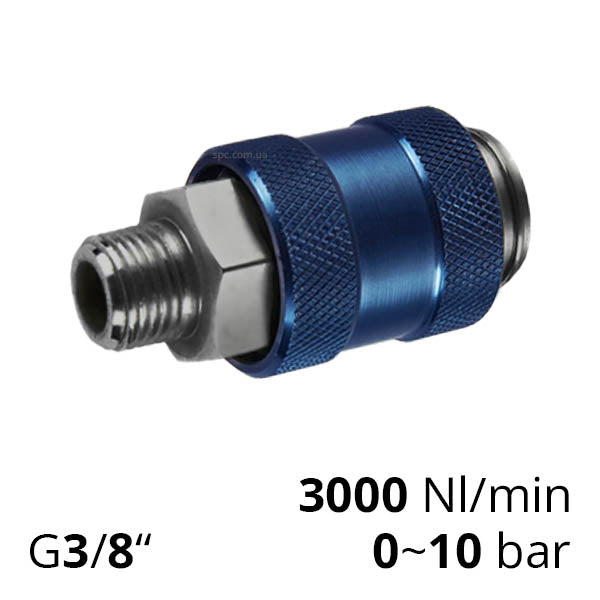

Thread size=G 3/8
SV-I-H-32-10
774,42 UAH
In Stock
SV-I-H-32-08
Manual pneumatic distributor 3/2 series SV-I-H-32 with manual control

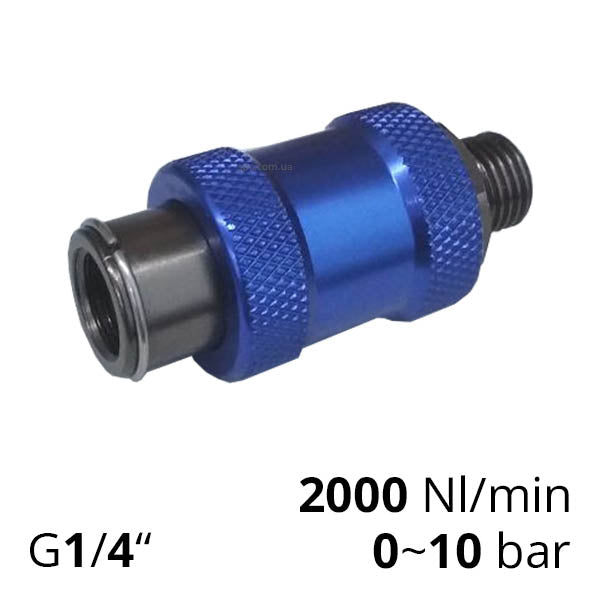

Thread size=G 1/4
SV-I-H-32-08
595,14 UAH
In Stock
SV-I-H-32-06
Manual pneumatic distributor 3/2 series SV-I-H-32 with manual control

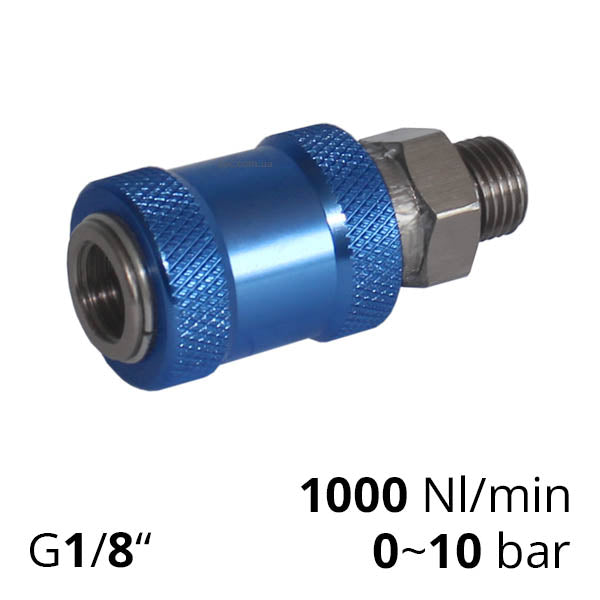

Thread size=G 1/8
SV-I-H-32-06
552,24 UAH
In Stock
Request a variant
Fill in the form and we will get back to you regarding this variant.
Technical specifications
Description
Miniature pneumatic distributors 3/2 series SV-I with manual control (manual sliding/pulling valve) are designed for use with compressed air at a working pressure of 0-10 bar. These pneumatic distributors are not sensitive to air contamination and are often used before compressed air preparation units and directly in front of manual pneumatic tools as a manual pneumatic on/off valve.
For connection to the pneumatic line, the 3/2 series SV-I distributors have internal or external cylindrical pipe threads at the input-output G1/8″, G1/4″, G3/8″ or G1/2″. When the air supply is disconnected, the pressure is relieved from the consumer by venting the compressed air from the output through a special hole.
Package Contents
- Pneumatic distributor 3/2 series SV-I
Advantages
- High capacity with very compact miniature size
- Convenient for use with manual pneumatic tools
- Can work with coarsely purified compressed air
- Fair price-quality ratio

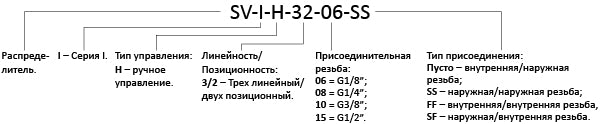

Valve Code Explanation
Specifications of Manual Valve SV-I
| Model | SV-I-H-32-06 | SV-I-H-32-08 | SV-I-H-32-10 | SV-I-H-32-15 |
|---|---|---|---|---|
| Input-output connection thread | G1/8″ | G1/4″ | G3/8″ | G1/2″ |
| Effective cross-sectional area | 23 mm2 (CV=1.28) |
40 mm2 (CV=2.22) |
65 mm2 (CV=3.5) |
140 mm2 (CV=7.8) |
| Number of lines/positions | 3/2 | |||
| Working medium | Air, filtration fineness not less than 40 microns | |||
| Control type | Manual | |||
| Working pressure range | 0-10 bar | |||
| Operating temperature range | 0...60 °C (in dry air with no moisture) | |||
