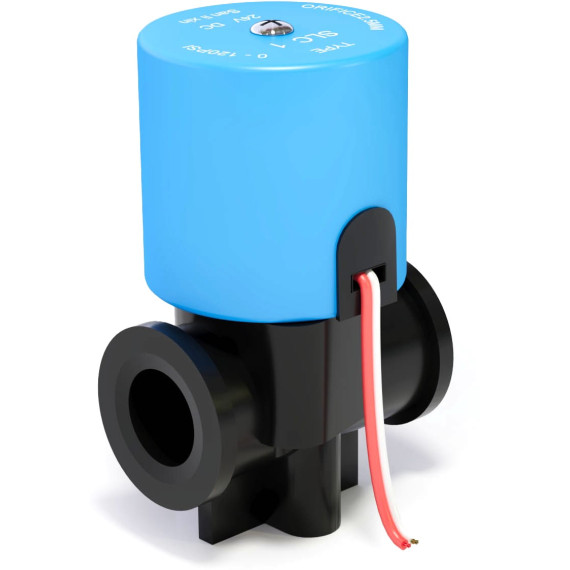

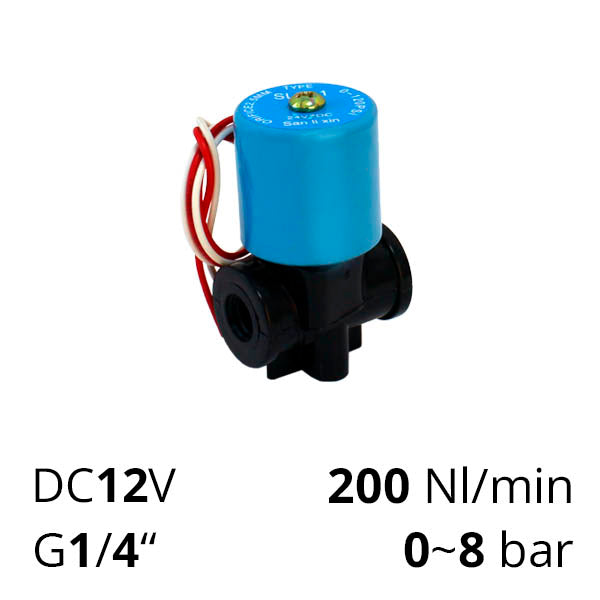

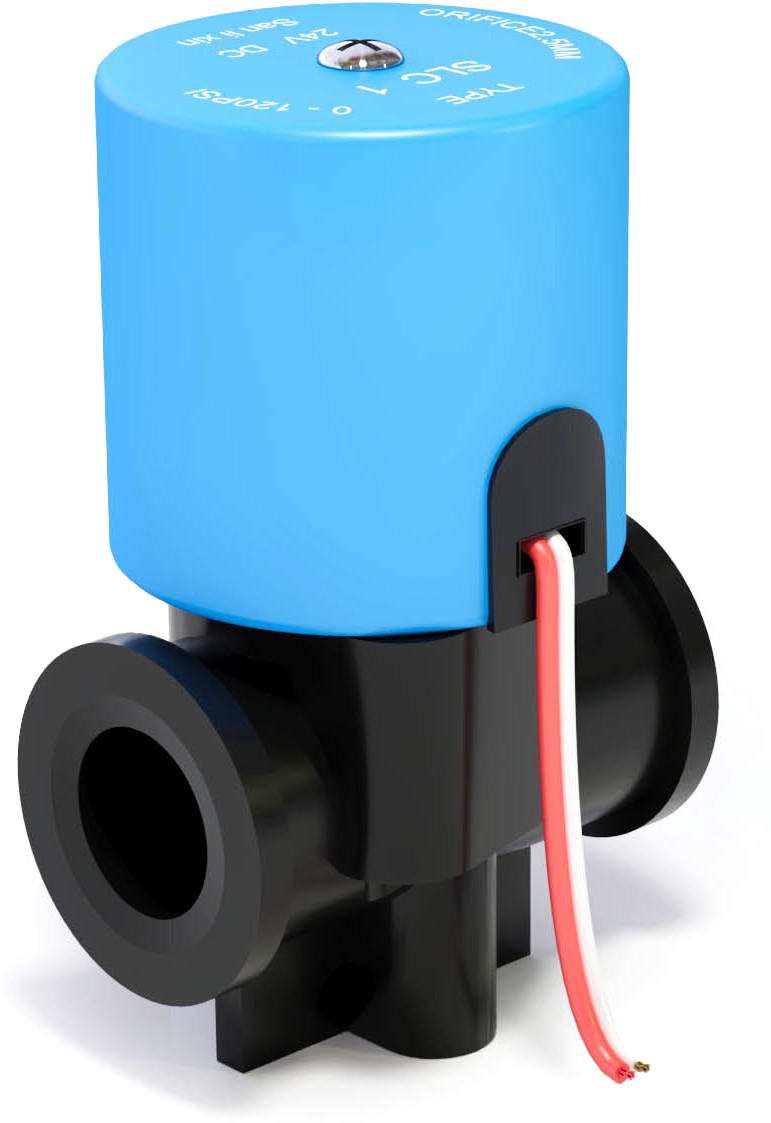

Solenoid valve 12 volts, thread G¼”, normally closed 2/2 series SV-FP-ES-22NC-08-DC12V

Solenoid Electromagnetic Valve 12v 2/2 NC series SV-FP-ES-22NC-08-DC12V is a two-line two-position normally closed cut-off valve with single-side electronic control — meaning the solenoid valve keeps the flow closed until power is supplied to the solenoid coil 12 V (DC12V). To connect to a pipeline, the electromagnetic valve series SV-FP-ES-22NC-08-DC12V has an input-output opening with internal pipe cylindrical thread G¼". There is also a wire about 30 cm long for connection to a direct current circuit.

The electromagnetic valve SV-FP-ES-22NC-08-DC12V is universal and used for various hydraulic fluids and gases — for water, air, carbon dioxide CO₂, oxygen and other substances, that are compatible with the valve's materials — the plastic valve is made from polypropylene, copper, and EDPM. These materials are non-toxic for food and drink products.

Most often, electromagnetic valves SV-FP are purchased for welding semi-automatics, for osmosis and pumps, where they have proven themselves well. Operating parameters depend on the medium used — when working with air, the valves are designed for pressure up to 8 bar and flow rate up to 200 l/min.
