Solenoid valve 24 volts, thread - G⅛″, normally closed 2/2 series SV-FP-ES-22NC-06-DC24V

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Solenoid valve 24 volts, thread - G⅛″, normally closed 2/2 series SV-FP-ES-22NC-06-DC24V

Name: Solenoid valve 24 volts, thread - G⅛″, normally closed 2/2 series SV-FP-ES-22NC-06-DC24V
Brand: Specialist
SKU: SV-FP-ES-22NC-06-DC24V
Price: 382.02 UAH
Availability: InStock

In Stock

Power Voltage

DC24V

Thread size

G ⅛

Model

Manufacturer

Specialist

from 382,02 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SV-FP-ES-22NC-06-DC24V

Solenoid valve 24 volts, thread - G⅛″, normally closed 2/2 series SV-FP-ES-22NC-06-DC24V

Power Voltage=DC24V Thread size=G ⅛

SV-FP-ES-22NC-06-DC24V

382,02 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G ⅛"

Coil voltage

DC24V

Nominal diameter

TWO 6

Тип контролю

Electromagnetic

Description

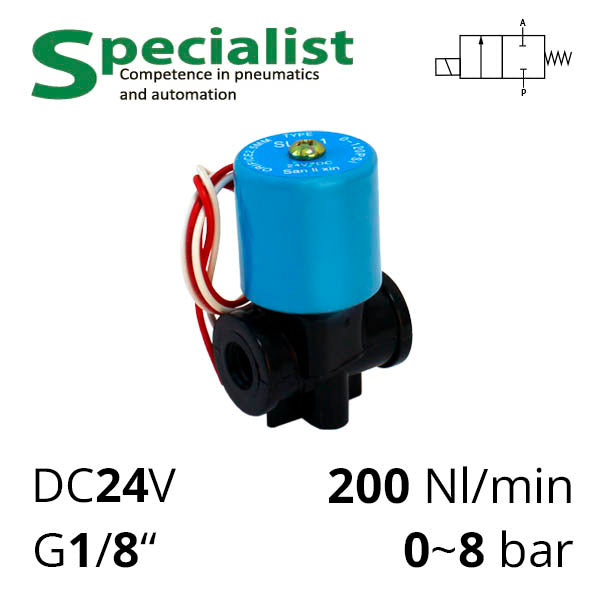

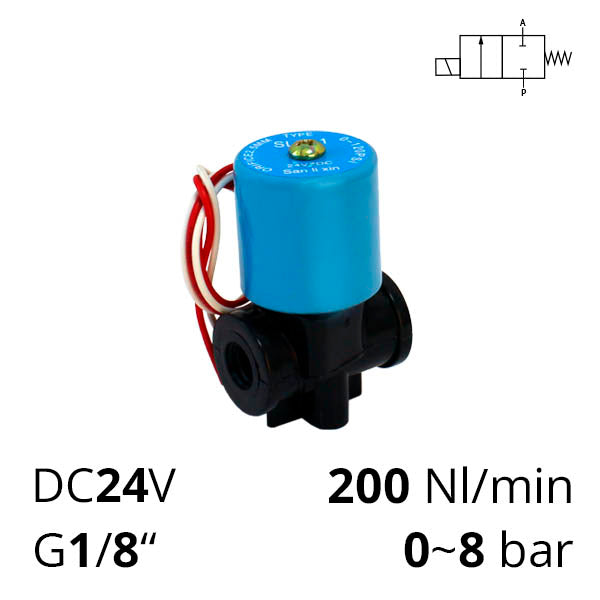

24V Solenoid Electromagnetic Valve, 2/2 (NC), series SV-FP-ES-22NC-06-DC24V is a two-way two-position normally closed cut-off valve with one-way electro-control — that is, the solenoid valve keeps the flow blocked until power is supplied to the solenoid coil 24 V (DC24V). For pipeline connection, the electromagnetic valve series SV-FP-ES-22NC-06-DC24V features an input-output port with internal pipe cylindrical thread G⅛”. A wire approximately 30 cm long is also available for connection to a DC circuit.

The electromagnetic air valve SV-FP-ES-22NC-06-DC24V is universal and used for various hydraulic fluids and gases — for water, air, carbon dioxide CO₂, oxygen, and other substances, compatible with the valve materials — the plastic valve is made of polypropylene, copper, and EPDM. These materials are non-toxic for food and drink products.

Most often, electromagnetic valves SV-FP are purchased for welding semi-automatics, osmoses, and pumps, where they have proven themselves well. The working parameters depend on the medium used — when working with air, the valves are designed for a pressure up to 8 bar and a flow up to 200 l/min.
