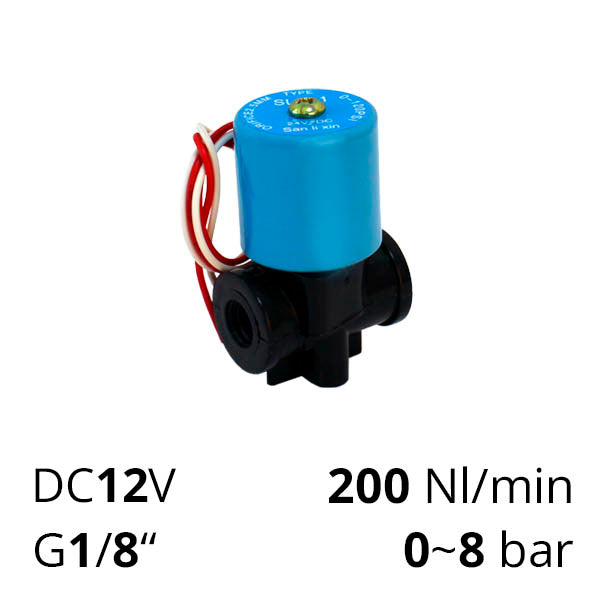

Solenoid valve 12v, G⅛ thread, normally closed 2/2 series SV-FP-ES-22NC-06-DC12V

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Solenoid valve 12v, G⅛ thread, normally closed 2/2 series SV-FP-ES-22NC-06-DC12V

Name: Solenoid valve 12v, G⅛ thread, normally closed 2/2 series SV-FP-ES-22NC-06-DC12V
Brand: Specialist
SKU: SV-FP-ES-22NC-06-DC12V
Price: 382.02 UAH
Availability: InStock

In Stock

Product Code:

SV-FP-ES-22NC-06-DC12V

Brand:

Specialist

382,02 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Connection type

With internal thread

Thread

G &frac18;

Coil voltage

DC12V

Матеріал диску

Polypropylene

Матеріал ущільнення

EPDM

Body material

Polypropylene

Тип засувки

Valve

Nominal diameter

DN 6

Тип контролю

Electromagnetic

Description

Solenoid Electromagnetic Valve 12V, 2/2 NC series SV-FP-ES-22NC-06-DC12V is a two-way, two-position normally closed switch valve with single-side electronic control — meaning the solenoid valve remains closed until power is supplied to the solenoid coil 12 V (DC12V). For pipeline connection, the electromagnetic valve of series SV-FP-ES-22NC-06-DC12V has an inlet-outlet hole with an internal pipe thread G⅛”. There is also a wire about 30 cm long for connection to a DC circuit.

The Electromagnetic Valve SV-FP-ES-22NC-06-DC12V is versatile and used for various hydraulic fluids and gases — for water, air, carbon dioxide CO₂, oxygen, and other substances that are compatible with the valve's materials — the plastic valve is made of polypropylene, copper, and EDPM. These materials are non-toxic for food and beverages.

Electromagnetic valves SV-FP are most often purchased for semi-automatic welding machines as argon welding valves; for osmosis and pumps, where they perform well. Operating parameters depend on the medium used — when working with air, the valves are designed for pressure up to 8 bar and flow rate up to 200 l/min.
