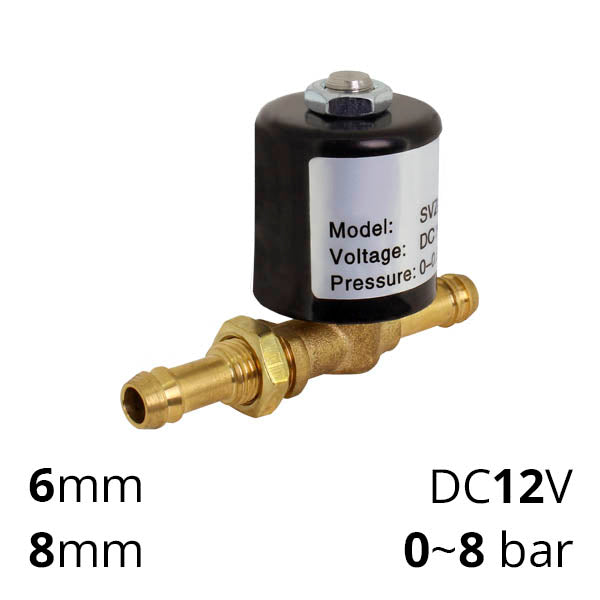

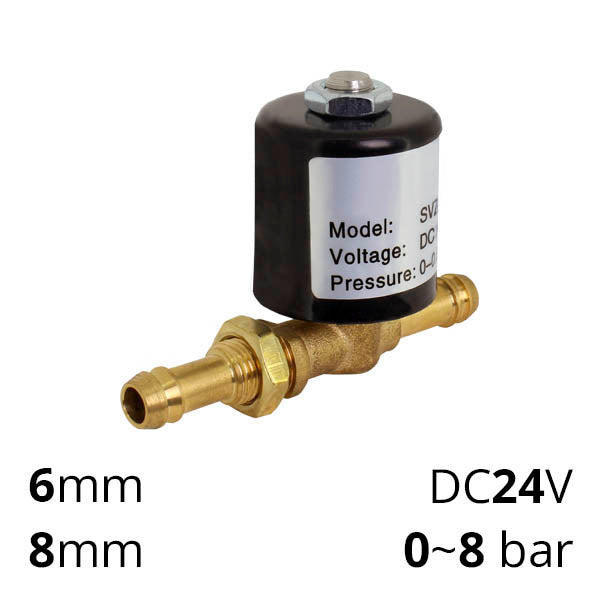

SV-WZ-ES-22NC-2.2-B6(8) is an electromagnetic cut-off valve specialised for semi-automatic and automatic welding machines in a CO2 environment, capable of working with many gas mixtures in air-plasma cutting installations.
The feature of welding valves SV-WZ-ES-22NC-2.2-B6(8) is a reliable bronze body, its high corrosion resistance and the valve's ability to withstand high temperatures (up to 90° C) and pressures (up to 8 bar) of the working medium. The nominal passage diameter is 2.2 mm to ensure optimal protective gas flow for welding. The gas valve SV-WZ operates as a two-way two-position normally closed valve (2/2 NC) and does not allow gas to the torch when the electromagnetic coil is unpowered. The valve starts passing gas from the inlet to the outlet upon a DC signal and remains open until the coil's power supply is turned off.
| Construction | Two-way two-position normally closed valve with single-side electric control | |
|---|---|---|
| Materials | Bronze, NBR (VITON) | |
| Connection | B6 | 6 mm |
| B8 | 8 mm | |
| Operating Temperature Range | -5~80 °C (with dry air without moisture) | |
| Power Supply Voltage | DC12V, DC24V, AC220V 50/60 Hz | |
| Working Medium | Neutral gases and liquids | |
| Operating Pressure | Air | up to 6 bar |
| Max Pressure | Air | 8 bar |
