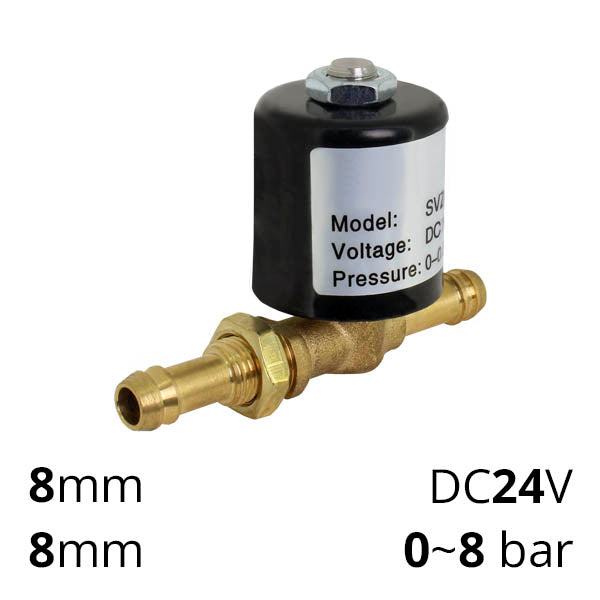

Solenoid valve carbon dioxide remote control 1.5 mm for welding machines SV-WZ-ES-22NC-1.5-B8

Do you have any questions about the product?
We will be happy to answer them in messengers

Solenoid valve carbon dioxide remote control 1.5 mm for welding machines SV-WZ-ES-22NC-1.5-B8

Name: Solenoid valve carbon dioxide remote control 1.5 mm for welding machines SV-WZ-ES-22NC-1.5-B8
Brand: Specialist
SKU: SV-WZ-ES-22NC-1.5-B8-DC24V
Price: 577.92 UAH
Availability: InStock

In Stock

Product Code:

SV-WZ-ES-22NC-1.5-B8-DC24V

Brand:

Specialist

577,92 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Connection type

Tree

Coil voltage

DC24V

Nominal diameter

DN 1.5

Тип контролю

Electromagnetic

Delivery time

60 днів

Description

SV-WZ-ES-22NC-1.5-B8 is an electromagnetic shut-off valve specialized for semi-automatic and automatic welding in a CO2 environment, capable of working with many gas mixtures in air-plasma cutting installations.

The feature of welding valves SV-WZ-ES-22NC-1.5-B8 is a robust bronze body, high corrosion resistance, and the ability of the valve to withstand high temperatures (up to 90° C) and pressures (up to 8 bar) of the working medium. The nominal diameter of the passage is 1.5 mm to ensure optimal protective gas flow for welding. The gas valve SV-WZ operates as a two-way two-position normally closed valve (2/2 NC) and does not allow gas to flow to the torch when there is no voltage on the electromagnetic coil. The valve begins to allow gas flow from the inlet to the outlet upon receiving a DC signal and remains in the open position until the power supply to the coil is switched off.

Technical specifications of the 2/2 NC series valve SV-WZ-ES-22NC-1.5-B8
Construction		Two-way two-position normally closed valve with unidirectional electrical control
Materials		Bronze, NBR (VITON)
Connection		8 mm
Operating temperature range		-5~80 °C (with dry air without moisture)
Power supply voltage		DC12V, DC24V, AC220V 50/60 Hz
Working medium		Neutral gases and fluids
Working pressure	Air	up to 6 bar
Max pressure	Air	8 bar
