Solenoid valve for semi-automatic 8-6 mm remote control 2.2 mm series SV-WZ-ES-22NC-2.2-C-DC24V

Do you have any questions about the product?
We will be happy to answer them in messengers

Solenoid valve for semi-automatic 8-6 mm remote control 2.2 mm series SV-WZ-ES-22NC-2.2-C-DC24V

Name: Solenoid valve for semi-automatic 8-6 mm remote control 2.2 mm series SV-WZ-ES-22NC-2.2-C-DC24V
Brand: Specialist
SKU: SV-WZ-ES-22NC-2.2-C-DC24V
Price: 577.98 UAH
Availability: InStock

In Stock

Приєднання

8 та 6 мм

Diameter of conditional passage

2.2

Power Voltage

DC24V

Model

Manufacturer

Specialist

from 577,98 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SV-WZ-ES-22NC-2.2-C-DC24V

Solenoid valve for semi-automatic 8-6 mm remote control 2.2 mm series SV-WZ-ES-22NC-2.2-C-DC24V

Diameter of conditional passage=2.2 Power Voltage=DC24V Приєднання=8 та 6 мм

SV-WZ-ES-22NC-2.2-C-DC24V

577,98 UAH

In Stock

Technical specifications

Приєднання

8 та 6 мм

Connection type

Tree

Coil voltage

DC24V

Nominal diameter

TWO 2.2

Nominal diameter

2.2

Тип контролю

Electromagnetic

Description

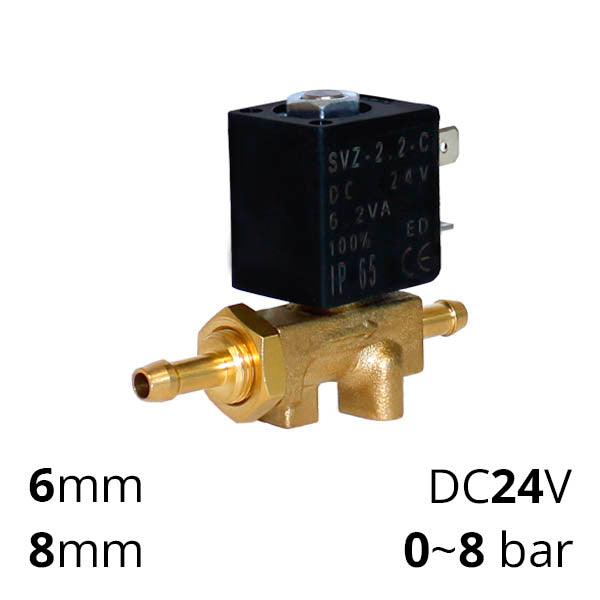

Electromagnetic Valve for Welding Semi-automatic DC24V Series SV-WZ-ES-22NC-2.2-C-DC24V (Type C) with a nominal diameter of 2.2 mm ensures the supply of the optimal amount of carbon dioxide shielding gas for welding or air-plasma cutting. The carbon dioxide valve features a reliable brass body with a plug for connections 8 and 6 mm. It is corrosion-resistant and can withstand high temperatures up to 90°C and pressure up to 8 bar.

The SV-WZ-ES-22NC-2.2-C-DC24V welding valve operates as a two-line, two-position normally closed valve (2/2 NC), preventing gas flow to the torch in the absence of voltage to the solenoid coil. When a 24 Volt DC signal is received, the valve opens the supply and remains open until the solenoid power is disconnected.

The electromagnetic valve can be used with other inert non-aggressive gases compatible with the materials, if necessary.

Specifications of the Solenoid Valve for Welding Semi-automatic SV-WZ-ES-22NC-2.2-C-DC24V
Construction	Two-line two-position normally closed valve with single-sided electronic control
Materials	Bronze, NBR (VITON)
Connection	8 mm and 6 mm
Operating Temperature Range	-5~80°C (with dry air only)
Power Supply Voltage	DC24V
Operating Medium	Neutral gases and liquids
Operating Pressure (air)	up to 6 bar
Max Pressure (air)	8 bar
