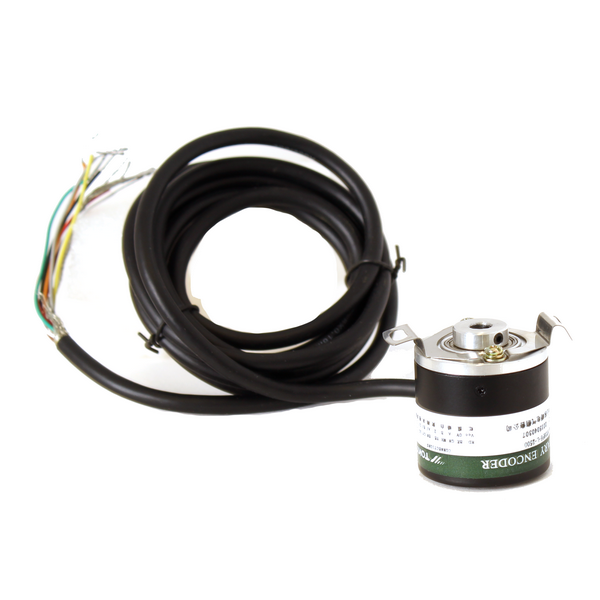

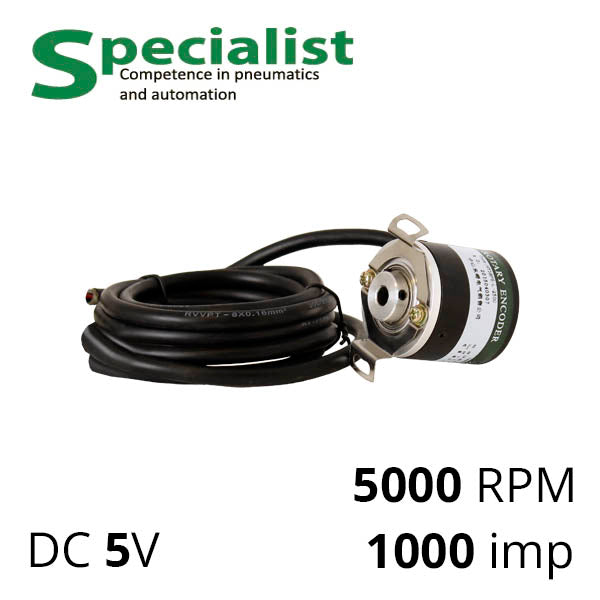

Optical incremental encoder with hollow shaft SPLC-SEN-HY-38P6-L5AR-2500
In Stock
Product Code:
Brand:
Specialist
6 480,00 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
The encoder model SPLC-SEN-HY-38P6-L5AR-2500 is an optical rotary quadrature incremental encoder with a hollow shaft, delivering a DC 5V (RS422) linear driver 2500 pulses per revolution with rotational direction indication.
The optical rotary sensor can be applied to any type of drive: asynchronous, synchronous, stepper motor, and servo motors with a rotation speed of up to 5000 rpm. The sensor device is attached to a shaft 6 mm through a through-hole. Includes a radial cable 2 m long.
| Model | SPLC-SEN-HY-38P6-L5AR-2500 |
|---|---|
| Output Type | Linear output driver DC 5V |
| DC Supply Voltage | ≥5 V |
| Consumed Current | ≤150 mA |
| Output Voltage UH | ≥0.7 Vcc V |
| Output Voltage UL | ≤0.5 V |
| Pulses per Revolution | 2500 |
| Pulse Rise | ≤1000 ns |
| Pulse Fall | ≤1000 ns |
| Operating Frequency | from 0 to 100 kHz |
| Max Rotation Speed | 5000 rpm |
| Starting Torque | 2×10−3 N⋅m |
| Allowable Acceleration | 10'000 rad/s2 |
| Max Radial Force | 9.8 |
| Max Axial Force | 9.8 |
| Moment of Inertia | 4×10−7 kg/m2 |
| Weight | 0.12 kg |
| Operating Temperature | from −10 to 60° C |
| Storage Temperature | from −20 to 80° C |
| Shock Resistance | 980 m/s2 (XYZ — direction for each, duration 6 ms for each direction) |
| Vibration Resistance | 50 m/s2 (10-200 Hz on each axis XYZ 1 for 2) |
Encoder Connection and Output Diagram
Wire color for output of electromagnetic encoder type "L5" (RS-422)
- Vcc: red
- OV: black
- A: green
- ¬A: blue
- B: white
- ¬B: brown
- Z: yellow
- ¬Z: orange
- G: screen
ABZ encoders can be connected to PLCs and frequency converters with FVC mode operation, featuring a board for the processing of high-speed encoder pulses (can be ordered separately).
