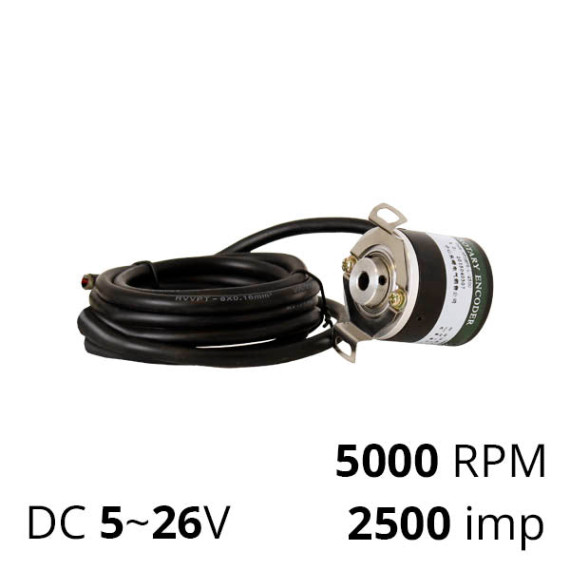

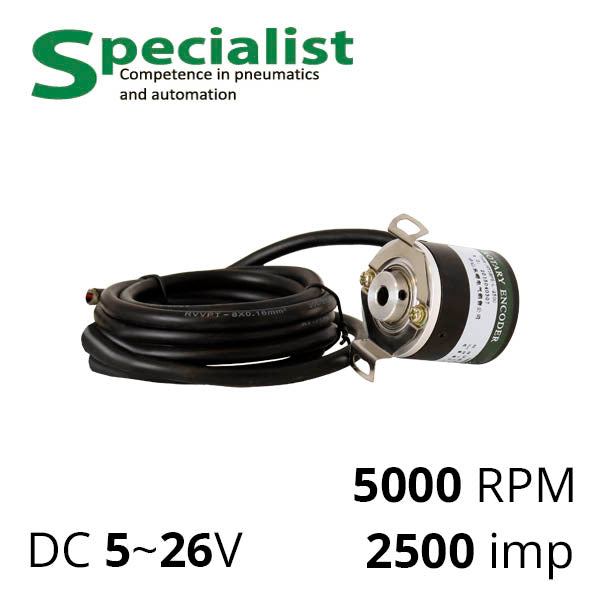

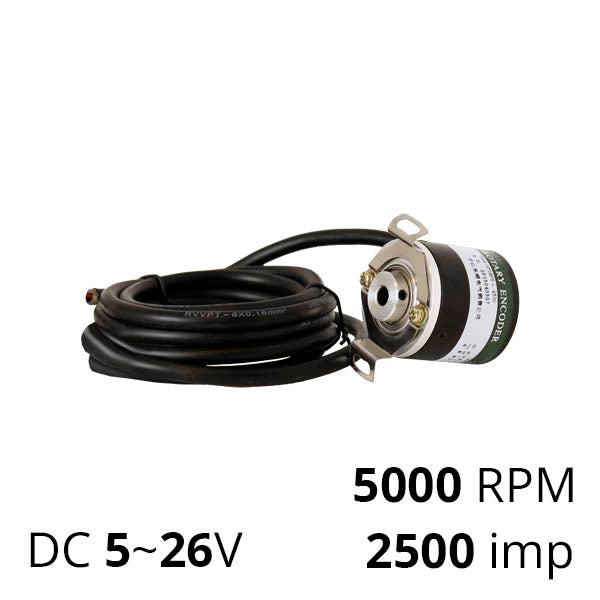

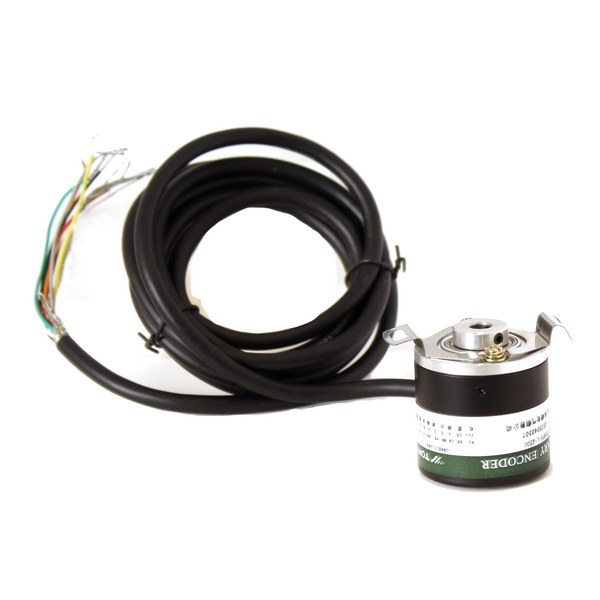

Optical incremental encoder with hollow shaft SPLC-SEN-HY-38P6-E4AR-2500
In Stock
Product Code:
Brand:
Specialist
6 192,00 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
The optical encoder model SPLC-SEN-HY-38P6-E4AR-2500 is an incremental rotary sensor with a hollow shaft (through hole for shaft), which outputs a potential ABZ-signal type at voltage DC 5…26 V and provides 2500 pulses per drive revolution.
The photoelectric encoder can be used for any type of drive: asynchronous, synchronous, step motor and servo motors with rotation speed up to 5000 rpm. The encoder sensor is mounted on a shaft 6 mm. The kit includes a radial cable with a length of 2 m.
| Model | SPLC-SEN-HY-38P6-E4AR-2500 |
|---|---|
| Output Type | Potential encoder output at voltage (E4) |
| Supply Voltage DC | DC 5…26V |
| Current Consumption | ≤60 mA |
| Output Voltage UH | ≥0.7 Vcc V |
| Output Voltage UL | ≤0.5 V |
| Pulses per Revolution | 2500 |
| Pulse Rise Time | ≤1000 ns |
| Pulse Fall Time | ≤1000 ns |
| Operating Frequency | from 0 to 100 kHz |
| Maximum Rotation Speed | 5000 rpm |
| Starting Torque | 2×10−3 N⋅m |
| Allowable Acceleration | 10'000 rad/s2 |
| Max. Radial Force | 9.8 |
| Max. Axial Force | 9.8 |
| Moment of Inertia | 4×10−7 kg/m2 |
| Weight | 0.12 kg |
| Operating Temperature | from −10 to 60° C |
| Storage Temperature | from −20 to 80° C |
| Shock Resistance | 980 m/s2 (XYZ — direction for each, time 6 ms for each direction) |
| Vibration Resistance | 50 m/s2 (10-200 Hz for each XYZ axis 1 for 2) |
Output and Connection Diagram of Encoder Type "E4"
Wire colours for electromagnetic encoder type "E4" (potential output)
- Vcc: red
- OV: black
- A: green
- B: white
- Z: yellow
- G: screen
ABZ encoders can be connected to PLCs and frequency inverters with FVC operating mode, equipped with a board for high-speed pulse processing of the encoder (available separately).
