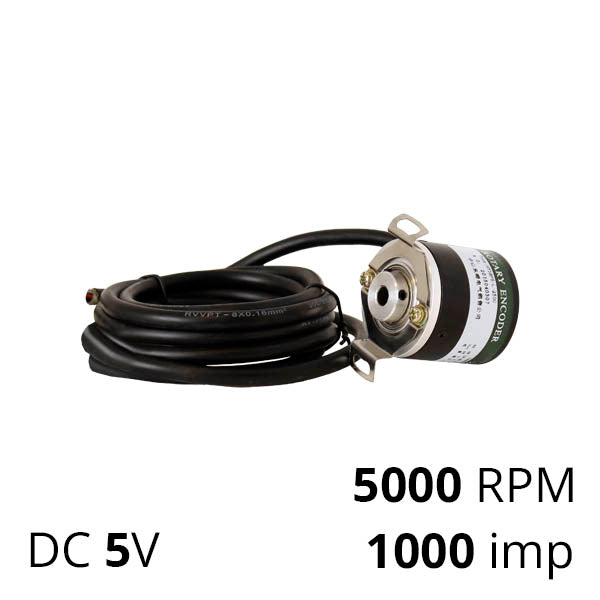

Optical incremental encoder with hollow shaft SPLC-SEN-HY-38P6-L5AR-1000
In Stock
Product Code:
SPLC-SEN-HY-38P6-L5AR-1000
Brand:
Specialist
5 478,58 UAH
0%
5 478,54 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description

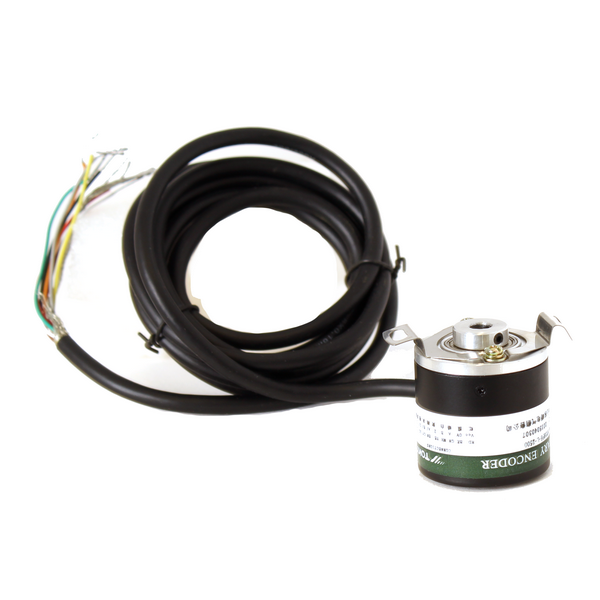

The encoder model SPLC-SEN-HY-38P6-L5AR-1000 is an optical rotary quadrature incremental encoder with a hollow shaft, outputting a linear driver DC 5V (RS422) 1000 impulses per revolution, indicating the direction of rotation.
The optical shaft position sensor can be used for any type of drive: asynchronous, synchronous, step motor, and servo motors with a rotational speed up to 5000 rpm. The sensor device is connected to a 6 mm shaft through a through-hole in it. The kit includes a radial cable of length 2 m.
| Model | SPLC-SEN-HY-38P6-L5AR-1000 |
|---|---|
| Output Type | Output linear driver DC 5V |
| DC Supply Voltage | ≥5 V |
| Current Consumption | ≤150 mA |
| Output Voltage UH | ≥0.7 Vcc V |
| Output Voltage UL | ≤0.5 V |
| Number of Pulses per 1 Revolution | 1000 |
| Pulse Rise Time | ≤1000 ns |
| Pulse Fall Time | ≤1000 ns |
| Operating Frequency | from 0 to 100 kHz |
| Maximum Rotational Speed | 5000 rpm |
| Starting Torque | 2×10−3 Nm |
| Allowable Acceleration | 10'000 rad/s2 |
| Max. Radial Force | 9.8 |
| Max. Axial Force | 9.8 |
| Moment of Inertia | 4×10−7 kg/m2 |
| Weight | 0.12 kg |
| Operating Temperature | from −10 to 60° C |
| Storage Temperature | from −20 to 80° C |
| Shock Resistance | 980 m/s2 (XYZ — direction for each, duration of 6 ms for each direction) |
| Vibration Resistance | 50 m/s2 (10-200 Hz along each axis XYZ 1 for 2) |
Encoder Connection and L5 Output Scheme
Wire Colours for Electromagnetic Encoder Type "L5" (RS-422)
- Vcc: Red
- OV: Black
- A: Green
- ¬A: Blue
- B: White
- ¬B: Brown
- Z: Yellow
- ¬Z: Orange
- G: Shield
ABZ encoders can be connected to PLCs and frequency converters with FVC operating mode with a high-speed impulse encoder processing board (can be ordered separately).
