Expansion board FC1000-PG-T11-01 for connecting FC1000 frequency converter encoder
On order
Product Code:
SPLC-FC1000-PG-T11-01
Brand:
Specialist
1 125,00 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description

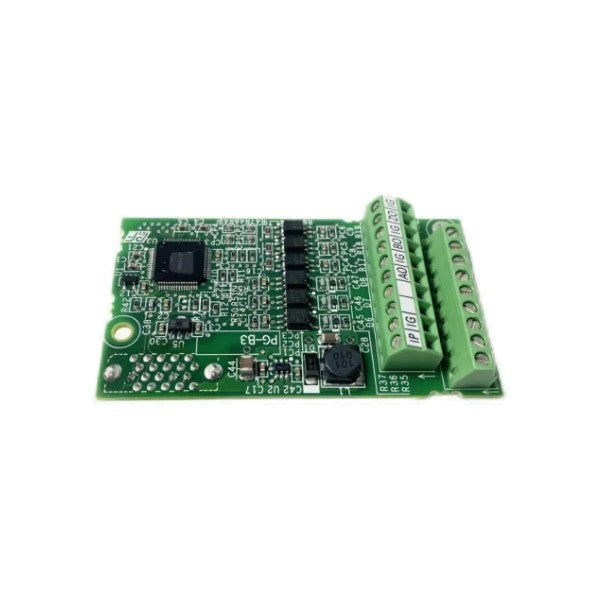

PG-T11-01 is an expansion board for connecting an encoder to the FC1000 series frequency inverter. The expansion board allows connecting incremental encoder ABZ signals to the inverter input — optical, capacitive, or mag-inductive speed sensors, tracking engine rotation direction and speed.
Connecting the encoder board to the FC1000 vector frequency inverter enables closed-loop motor control, enhancing speed frequency regulation accuracy, motor torque control, and operation with permanent magnet synchronous motors.
Expansion Board Features
- Connection via terminals
- Contact center distance — 3.81 mm
- Wire connection with conductor cross-section diameter from 0.15 to 1.29 mm
- Maximum frequency — 500 kHz
- Input differential signal amplitude — not more than 7 V
| Terminal | Function |
|---|---|
| A+ | Encoder output signals A, responsible for shaft rotation direction |
| A- | |
| B+ | Encoder output signals B, for shaft angular position tracking |
| B- | |
| Z+ | Encoder output signals Z for zero position determination |
| Z- | |
| 5V | 5 V, 100 mA power |
| GND | Power ground |
