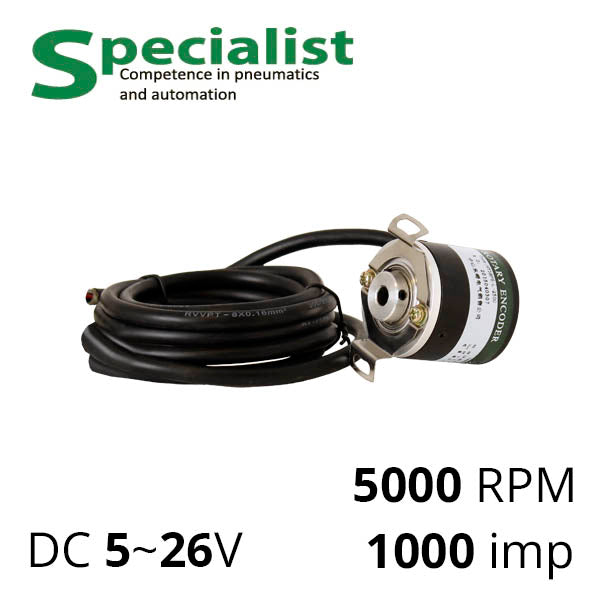

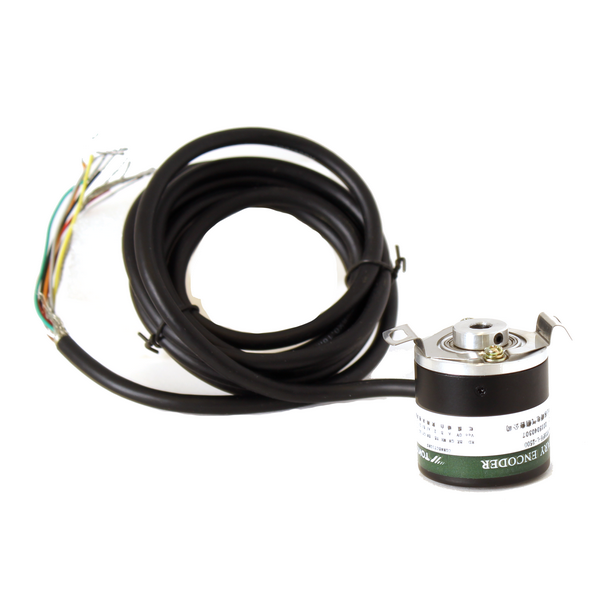

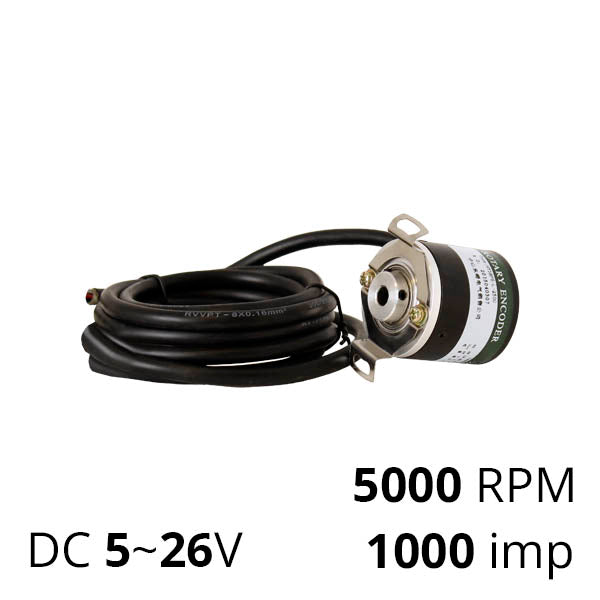

Optical incremental encoder with hollow shaft SPLC-SEN-HY-38P6-E4AR-1000
In Stock
Product Code:
Brand:
Specialist
5 400,00 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Optical encoder model SPLC-SEN-HY-38P6-E4AR-1000 is an incremental rotary angle sensor with a hollow shaft (through-hole under the shaft), which provides a potential ABZ signal type output at a voltage of DC 5…26V and delivers 1000 impulses per drive rotation.
Photoelectric shaft encoder can be used for any type of drive: asynchronous, synchronous, stepper motors, and servomotors with a rotational speed of up to 5000 rpm. The encoder sensor mounts on a shaft of 6mm. The set includes a radial cable 2m long.
| Model | SPLC-SEN-HY-38P6-E4AR-1000 |
|---|---|
| Output type | Potential encoder output by voltage (E4) |
| Power supply DC | DC 5…26V |
| Current consumption | ≤60 mA |
| Output voltage UH | ≥0.7 Vcc V |
| Output voltage UL | ≤0.5 V |
| Number of impulses per revolution | 1000 |
| Impulse rise time | ≤1000 ns |
| Impulse fall time | ≤1000 ns |
| Operating frequency | from 0 to 100 kHz |
| Maximum rotational speed | 5000 rpm |
| Starting torque | 2×10−3 N⋅m |
| Allowable acceleration | 10'000 rad/s2 |
| Max. radial force | 9.8 |
| Max. axial force | 9.8 |
| Moment of inertia | 4×10−7 kg/m2 |
| Weight | 0.12 kg |
| Operating temperature | from −10 to 60° C |
| Storage temperature | from −20 to 80° C |
| Shock resistance | 980 m/s2 (XYZ — direction per each, time 6 ms per each direction) |
| Vibration resistance | 50 m/s2 (10-200 Hz per each axis XYZ 1 per 2) |
Encoder output and connection scheme type "E4"
Wire colours for electromagnetic encoder type "E4" (potential output)
- Vcc: red
- OV: black
- A: green
- B: white
- Z: yellow
- G: shield
ABZ encoders can be connected to PLCs and frequency inverters with FVC operation mode, featuring a board for processing high-speed impulses of the shaft encoder (can be ordered separately).
