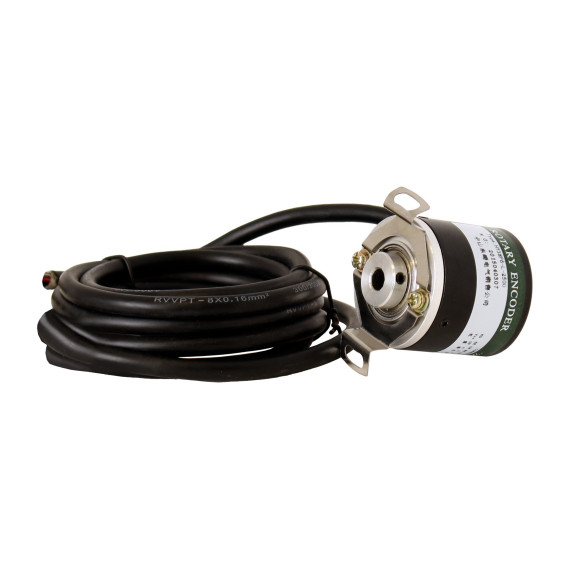

Optical incremental encoder with hollow shaft SPLC-SEN-HY-38P6-E4AR-100

Do you have any questions about the product?
We will be happy to answer them in messengers

Optical incremental encoder with hollow shaft SPLC-SEN-HY-38P6-E4AR-100

Name: Optical incremental encoder with hollow shaft SPLC-SEN-HY-38P6-E4AR-100
Brand: Specialist
SKU: SPLC-SEN-HY-38P6-E4AR-100
Price: 5400.00 UAH
Availability: BackOrder

On order

Product Code:

SPLC-SEN-HY-38P6-E4AR-100

Brand:

Specialist

5 400,00 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Description

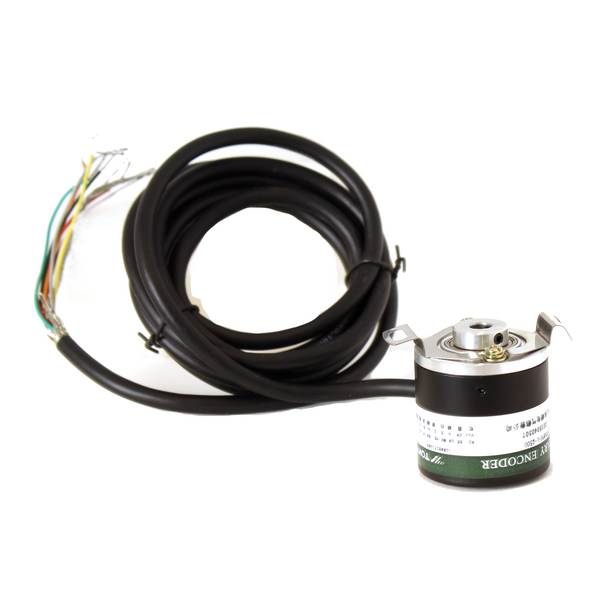

The SPLC-SEN-HY-38P6-E4AR-100 optical encoder is an incremental angle sensor with a hollow shaft (through-hole for the shaft), which outputs a potential ABZ signal by voltage DC 5…26 V and provides 100 pulses per drive revolution.

The photoelectric encoder can be used for any type of drive: asynchronous, synchronous, stepper motor, and servo motors with a rotational speed up to 5000 rpm. The encoder sensor fits onto a shaft 6 mm. The package includes a radial cable 2 m long.

Table of technical parameters of magnetic encoder SPLC-SEN-HY-38P6-E4AR-100
Model	SPLC-SEN-HY-38P6-E4AR-100
Output Type	Potential encoder output by voltage (E4)
DC Supply Voltage	DC 5…26V
Consumed Current	≤60 mA
Output Voltage UH	≥0.7 Vcc V
Output Voltage UL	≤0.5 V
Number of Pulses per Revolution	100
Rise Time of Pulse	≤1000 ns
Fall Time of Pulse	≤1000 ns
Operating Frequency	from 0 to 100 kHz
Maximum Rotational Speed	5000 rpm
Starting Torque	2×10⁻³ N⋅m
Allowable Acceleration	10'000 rad/s²
Max. Radial Load	9.8
Max. Axial Load	9.8
Moment of Inertia	4×10⁻⁷ kg/m²
Weight	0.12 kg
Operating Temperature	from −10 to 60° C
Storage Temperature	from −20 to 80° C
Impact Resistance	980 m/s² (XYZ — direction for each, time 6 ms per direction)
Vibration Resistance	50 m/s² (10-200 Hz on each XYZ axis for 1 of 2)

Output and Connection Diagram for Encoder Type "E4"

Diagram of incremental encoder with voltage signal Specialist

Wire colors for the electromagnetic encoder of type "E4" (potential output)

Vcc: red
OV: black
A: green
B: white
Z: yellow
G: screen

ABZ encoders can be connected to PLCs and frequency inverters with FVC operation mode, which have a board for high-speed pulse processing of the encoder (may be ordered separately).
