Optical Incremental Encoder with 6mm Shaft with Fox SPLC-SEN-HY-38A6-L5AR-4096
In Stock
Product Code:
SPLC-SEN-HY-38A6-L5AR-4096
Brand:
Specialist
6 431,94 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description

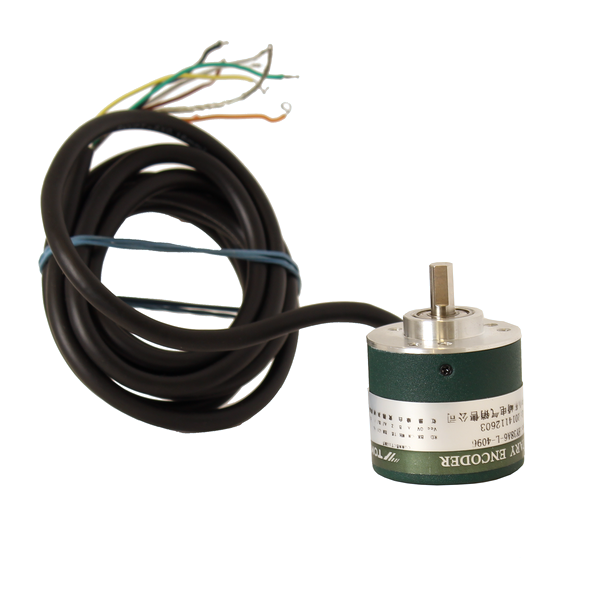

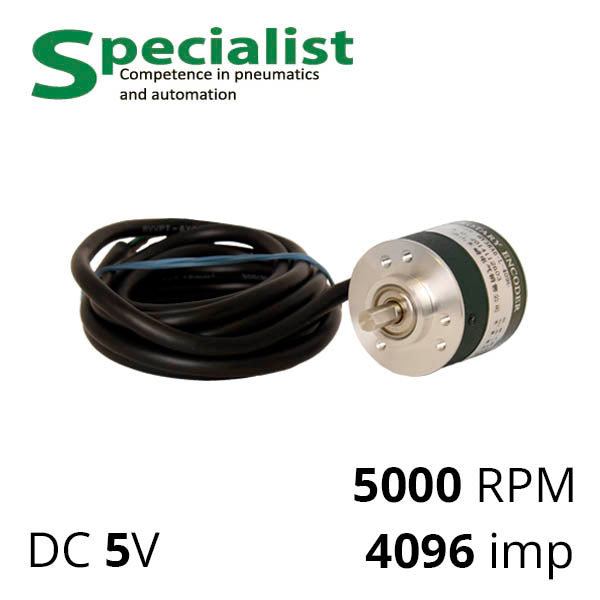

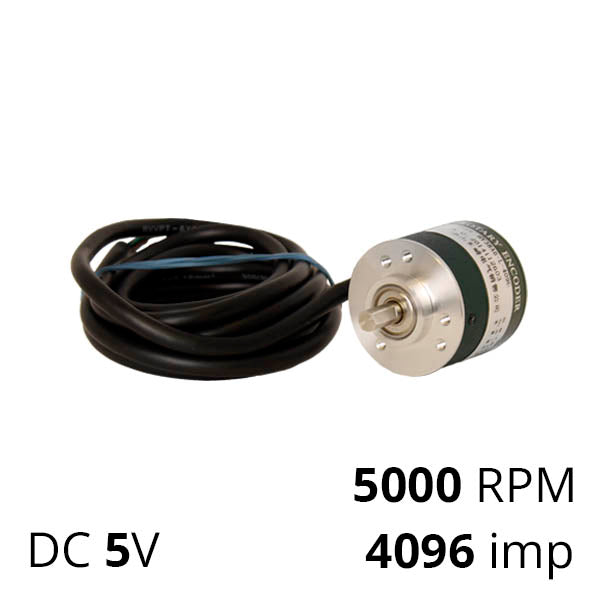

Motor rotation angle sensor model SPLC-SEN-HY-38A6-L5AR-4096 is an optical rotary quadrature incremental encoder with 6mm shaft and keyway. The rotation sensor has a DC 5V output (RS422, line driver) and outputs 4096 pulses/rev with direction detection.
The photoelectric encoder can be used with any type of drive: asynchronous, synchronous, stepper motors and servomotors with a rotation speed of up to 5000 rpm. For example, for automation of CNC machines, 3D printers, and other machinery.
A 2-metre cable is included with the optical encoder.
| Model | SPLC-SEN-HY-38A6-L5AR-4096 |
|---|---|
| Output type | Line driver output DC 5V |
| DC supply voltage | ≥5 V |
| Current consumption | ≤150 mA |
| Output voltage UH | ≥0.7 Vcc V |
| Output voltage UL | ≤0.5 V |
| Number of pulses per revolution | 4096 pulses |
| Pulse rise time | ≤1000 ns |
| Pulse fall time | ≤1000 ns |
| Operating frequency | from 0 to 100 kHz |
| Maximum rotation speed | 5000 rpm |
| Starting torque | 2×10−3 N⋅m |
| Allowed acceleration | 10,000 rad/s2 |
| Max radial force | 9.8 |
| Max axial force | 9.8 |
| Moment of inertia | 4×10−7 kg/m2 |
| Weight | 0.12 kg |
| Operating temperature | from −10 to 60° C |
| Storage temperature | from −20 to 80° C |
| Shock resistance | 980 m/s2 (XYZ — direction in each, time 6 ms for each direction) |
| Vibration resistance | 50 m/s2 (10-200 Hz on each axis XYZ 1 to 2) |
Encoder Connection and Output Diagram
Output wire colour of "L5" type electromagnetic encoder (RS-422)
- Vcc: red
- OV: black
- A: green
- ¬A: blue
- B: white
- ¬B: brown
- Z: yellow
- ¬Z: orange
- G: shield

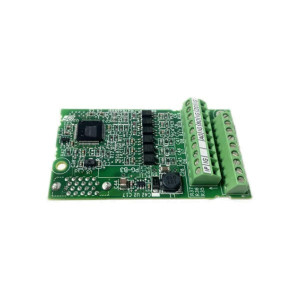

ABZ encoders can be connected to PLCs and frequency converters with FVC operating mode which have a board for processing high-speed encoder pulses (can be ordered separately).
