Proximity sensor inductive NPN, M12, distance 4 mm (TL series)

Do you have any questions about the product?
We will be happy to answer them in messengers

Proximity sensor inductive NPN, M12, distance 4 mm (TL series)

Name: Proximity sensor inductive NPN, M12, distance 4 mm (TL series)
Brand: Specialist
SKU: SE-SEN-TL-12N4B/12NC4B
Price: 271.50 UAH
Availability: InStock

On order

Type

NPN NO NPN NC

Model

SE-SEN-TL-12N4B/12NC4B

Manufacturer

Specialist

from 271,50 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

SE-SEN-TL-12N4B

Proximity sensor inductive NPN, M12, distance 4 mm (TL series)

Type=NPN NO

SE-SEN-TL-12N4B

271,50 UAH

In Stock

SE-SEN-TL-12NC4B

Proximity sensor inductive NPN, M12, distance 4 mm (TL series)

Type=NPN NC

SE-SEN-TL-12NC4B

271,50 UAH

In Stock

Technical specifications

Transistor output type

NPN NO, NPN NC

Sensitivity distance (Sn)

4 mm

Case type

M12

Description

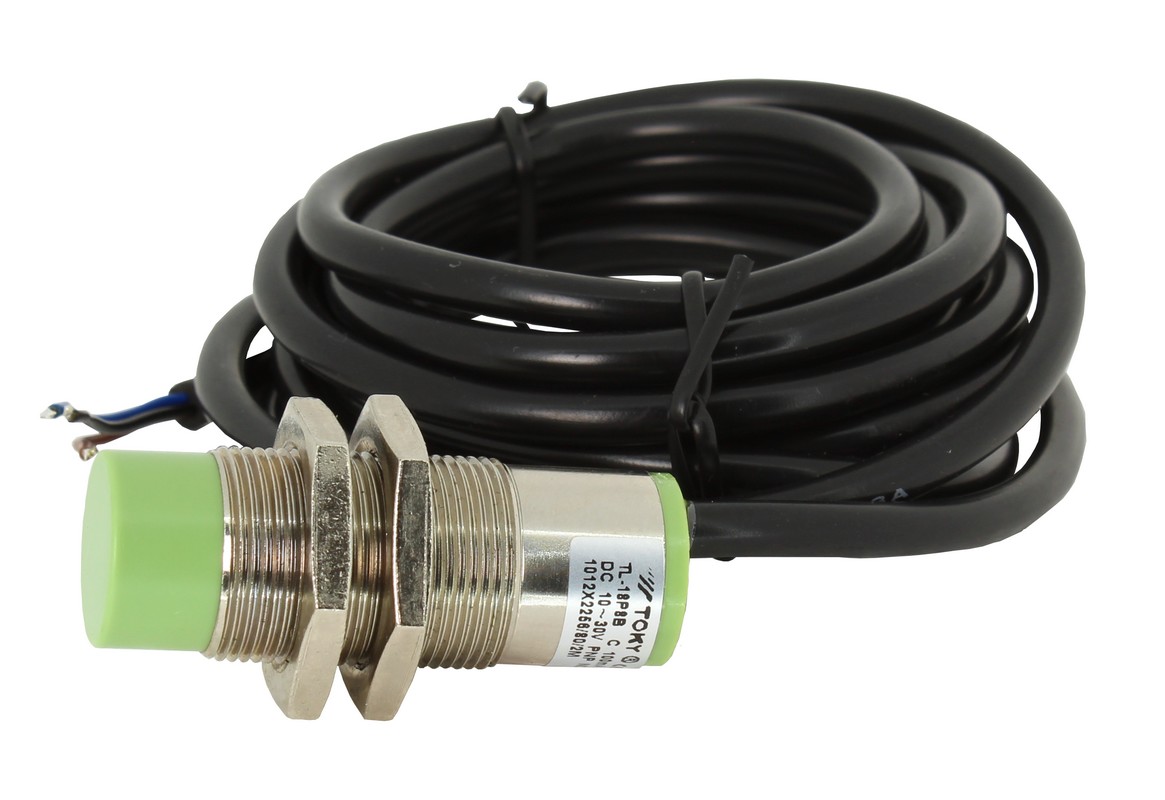

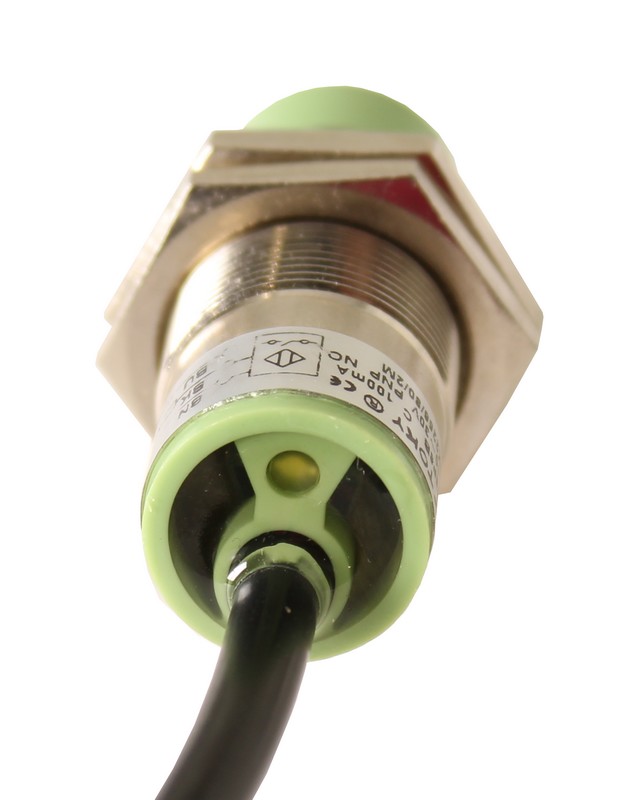

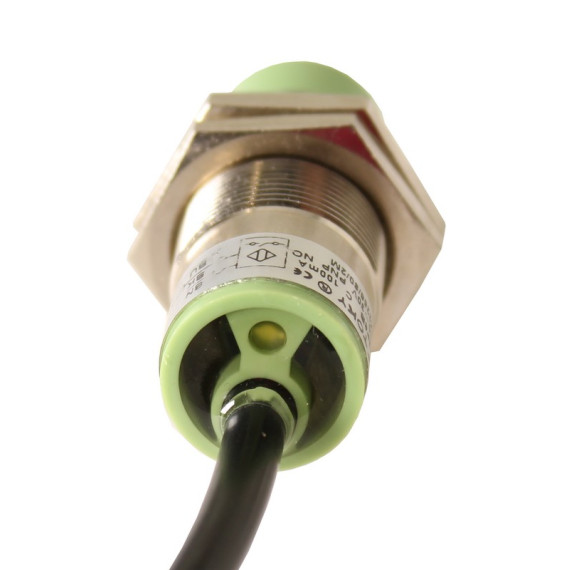

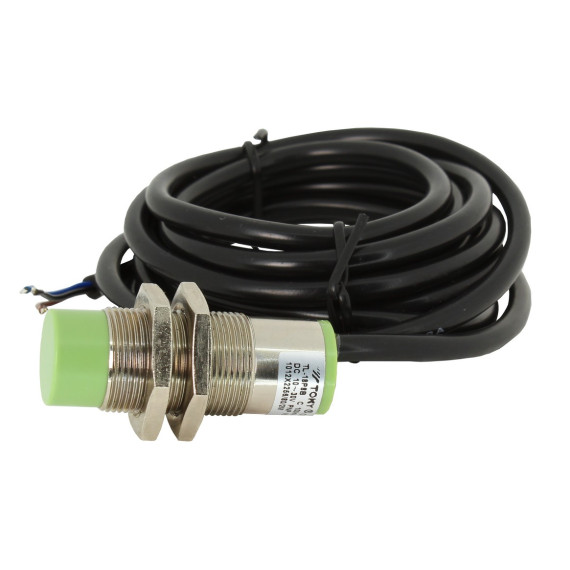

Non-contact inductive sensor NPN series SE-SEN-TL-12N(C)4B is a NCIS (non-contact inductive switch) used for detecting proximity, position control, counting, determining the speed of various target metal objects. The triggering distance is a maximum of 4 mm. The output is a three-wire normally open or closed transistor NPN, switched DC circuit less than 100 mA power supply from 10 to 30 V. The electrical sensor has a cylindrical shape with external metric mounting thread M12 and a rear LED. The body protection degree is IP66.

Technical parameters of the inductive sensor SE-SEN-TL-12N(C)2B
Output Type	3-wire NPN NO - standard NC - on request
Detection	Metal sensor: iron, stainless steel, chrome, nickel, aluminium, copper etc.
Standard detection object	Iron plate 12x12x1 mm
Standard detection distance	Sn≤4 mm
Effective distance	3.2 mm
Power supply	24V (from 10 to 30 Volts)
Load current	100 mA
Frequency	400 Hz
Body	Threaded cylinder with M12 thread
Cord	Non-removable cable 2 m
Protection degree	IP66
