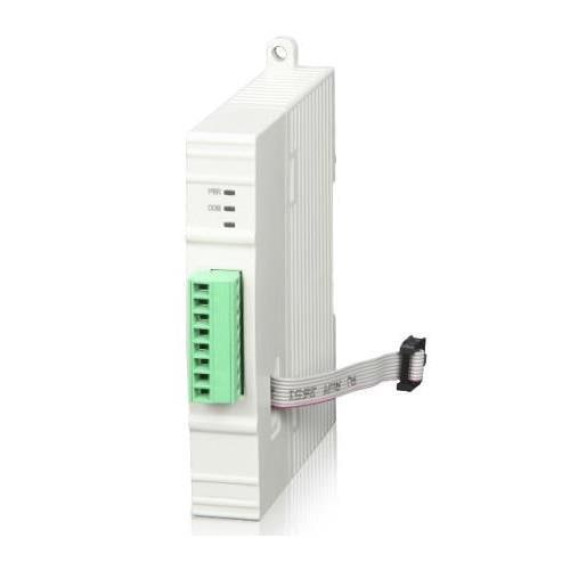

Expansion module SPLC-XD-2AD2PT-A-ED up to 2 inputs and 2 voltage outputs for XD series controllers

Do you have any questions about the product?
We will be happy to answer them in messengers

Expansion module SPLC-XD-2AD2PT-A-ED up to 2 inputs and 2 voltage outputs for XD series controllers

Name: Expansion module SPLC-XD-2AD2PT-A-ED up to 2 inputs and 2 voltage outputs for XD series controllers
Brand: Xinje
SKU: SPLC-XD-2AD2PT-A-ED
Price: 2350.02 UAH
Availability: InStock

In Stock

Product Code:

SPLC-XD-2AD2PT-A-ED

Brand:

Xinje

2 350,02 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Description

SPLC-XD-2AD2PT-A-ED type ED extension modules connect on the left to Xinje PLC XD series, which operate on XDPPro software. This ED module has the function of analogue-digital and digital-analogue conversion, allowing the addition of up to 2 analogue inputs and 2 outputs. The module has the following features:

Narrow compared to right-hand modules, thus occupying less space
Supports analogue input signal type PT100 thermoresistor and output current — 0…20 or 4…20 mA;
One ED module can be connected to one XD series PLC (except XD1 series).

Technical Specification Table of Digital Extension Module SPLC-XD-2AD2PT-A-ED
Module Power Supply		24 V±10% DC 150 mA
Input	Number of Inputs	2 input channels
	Type of Input Signals	PT100 thermoresistor
	Temperature Range	from -100 to 500° C
	Digital Output Range	from -1000 to 5000
	Resolution	0.1° C
	Full Accuracy	±0.8% of full measurement range
Output	Number of Outputs	2 output channels
	Type of Output Signals	current 0…20 mA/4…20 mA;
	Output Resolution	1/1023 (10 bits)
	Full Conversion Accuracy	±1%
Conversion Speed (all channels)		10 ms
