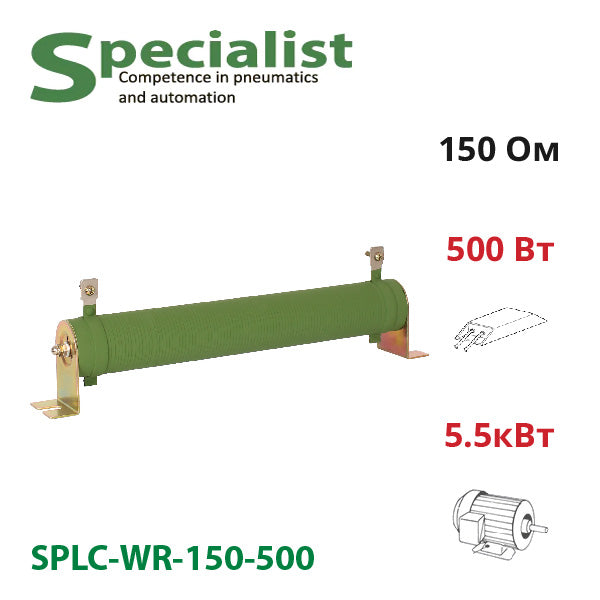

Braking resistor 150 Ohm 500 W SPLC-WR-150-500 for frequency converter 5.5 kW
In Stock
Product Code:
SPLC-WR-150-500
Brand:
Specialist
724,98 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
The ceramic resistor model SPLC-WR-150-500 is most commonly used as a brake resistor for frequency converter 5.5 kW for three-phase motors 380 V — when choosing, rely on the manufacturer's recommended inverter characteristics and calculated engine braking power. This wire wound resistor has a resistance of 500 W and power of 150 Ohm.
Brake resistors of the WR series are made from a ceramic tube, over which is wound iron-chromium-aluminium alloy wire (by default) or nichrome (on request). The ceramic body serves as an insulator and heat dissipator, resistant to high temperatures and corrosion. The wire has high specific electrical conductivity, allowing efficient heat dissipation generated during motor braking.
| Model | SPLC-WR-150-500 |
|---|---|
| Rated Power | 500 W |
| Rated Resistance | 150 Ohm |
| Resistance Tolerance | ±5% (type J) ±10% (type K) |
| Rated Load | 50-200 W, surface temperature less than 275°C; more than 200 W — 350°C |
| Short-term Overload | without visible damage ΔR ≤ ±(5%R + 0.05 Ohm) |
| Insulation Resistance | ΔR ≥ 1000 MOhm 1 min, constant current 1000 V |
| Withstand Voltage | Without visible damage, no arc discharge ΔR ≤ ±(0.1%R + 0.05 Ohm), alternating current 3000 V, 5 s |
| Terminal Strength | No visible damage, 45 N 30 s |
| Material | 0Cr25AL5/Cr20Ni80 |
| Protection Class | IP00 |
| Storage Temperature | from -40 to 50°C (without moisture) |
