Inductive proximity sensor PNP, M30, distance up to 15 mm (TKI/TKL series)

Do you have any questions about the product?
We will be happy to answer them in messengers

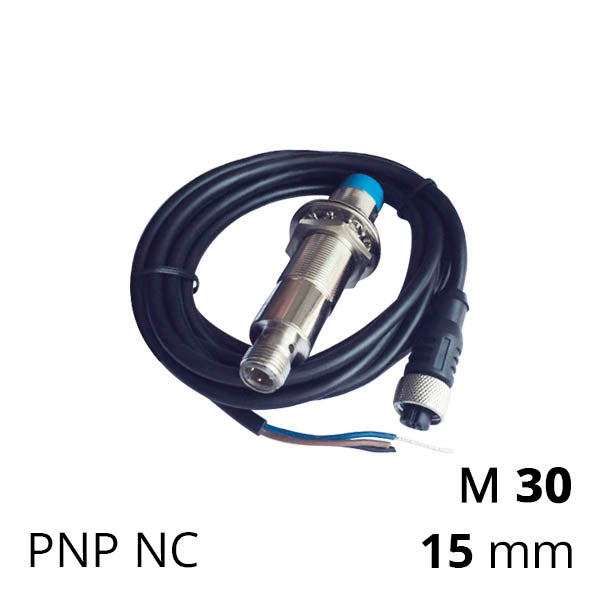

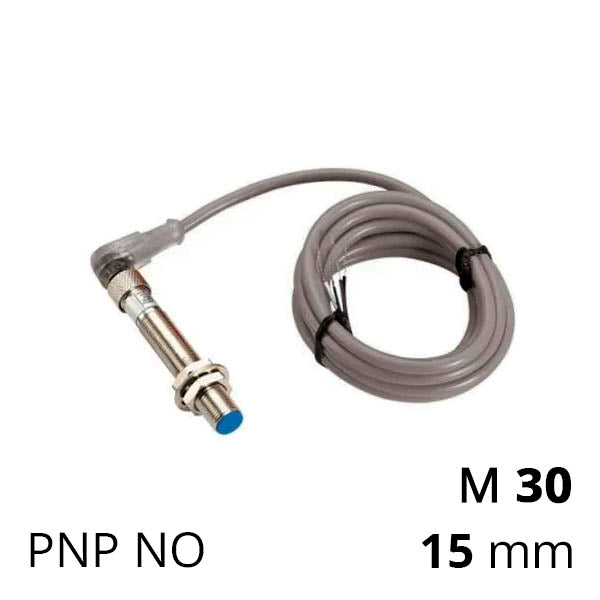

Inductive proximity sensor PNP, M30, distance up to 15 mm (TKI/TKL series)

Name: Inductive proximity sensor PNP, M30, distance up to 15 mm (TKI/TKL series)
Brand: Specialist
SKU: SPLC-TKI/TKL-30P15C/30PC15C
Price: 831.90 UAH
Availability: BackOrder

On order

Type of transistor output

PNP NC PNP NO

Роз'єм

Кутовий Прямий

Model

SPLC-TKI/TKL-30P15C/30PC15C

Manufacturer

Specialist

1 280,42 UAH

-35%

from 831,90 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 4 variants


Name

Model Price Availability Qty

Action

SPLC-TKI-30P15C

Inductive proximity sensor PNP, M30, distance up to 15 mm (TKI/TKL series)

Type of transistor output=PNP NO Роз'єм=Прямий

SPLC-TKI-30P15C

1 280,42 UAH 831,90 UAH

Pre-Order

SPLC-TKL-30P15C

Inductive proximity sensor PNP, M30, distance up to 15 mm (TKI/TKL series)

Type of transistor output=PNP NO Роз'єм=Кутовий

SPLC-TKL-30P15C

1 280,40 UAH 831,90 UAH

Pre-Order

SPLC-TKI-30PC15C

Inductive proximity sensor PNP, M30, distance up to 15 mm (TKI/TKL series)

Type of transistor output=PNP NC Роз'єм=Прямий

SPLC-TKI-30PC15C

1 280,42 UAH 831,90 UAH

Pre-Order

SPLC-TKL-30PC15C

Inductive proximity sensor PNP, M30, distance up to 15 mm (TKI/TKL series)

Type of transistor output=PNP NC Роз'єм=Кутовий

SPLC-TKL-30PC15C

1 280,40 UAH 831,90 UAH

Pre-Order

Technical specifications

Transistor output type

PNP NC, PNP NO

Роз'єм

Кутовий, Прямий

Delivery time

60 днів

Description

A non-contact inductive sensor 24V DC of the PNP-type SE-SEN-TKІ(L)-30P(C)15C is used for proximity detection, position control, counting, and speed determination of metal target objects. The distance of operation on metals — up to 15 mm. This model features a transistor and electronic components that withstand external load up to 200 mA, high resistance to electromagnetic interference due to optimally selected frequency of 100 Hz, moisture-resistant body IP66, visible 360-degree light indication, round pin-3 or pin-4 connector for wire connection — high-quality three-wire signal cable length 2 m included.

Technical specifications table of magnetic-inductive proximity sensor SE-SEN-TKІ(L)-30P(C)15C
Output Type	3-wire PNP NO or PNP NC
Detector	Metal Detection (steel, stainless steel, chrome, nickel, copper, aluminium etc.)
Standard Detection Object	Iron plate 30×30×1 mm
Detection Distance	Sn = 15 mm
Effective Working Distance	from 0 to 12 mm
Frequency	≤100 Hz
Power Supply	DC 10…30 Volts
Max. Load	≤200 mA
Housing	Screw-fit cylindrical body with M30 threads
Connection	Cable length 2 meters
IEC Protection Rating	IP66

PNP Type Sensor Connection Diagram
