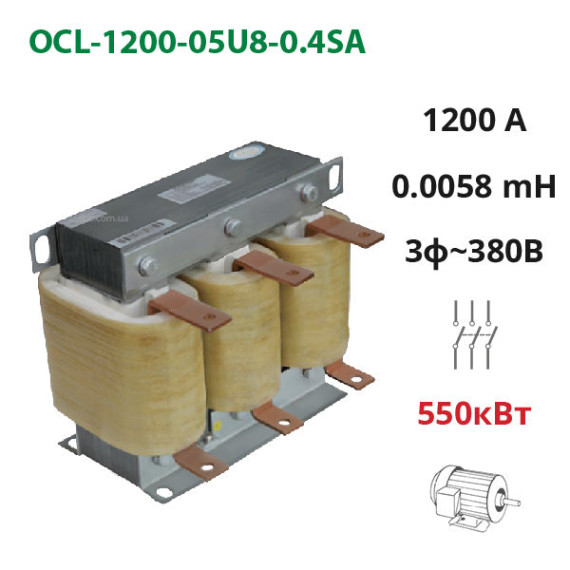

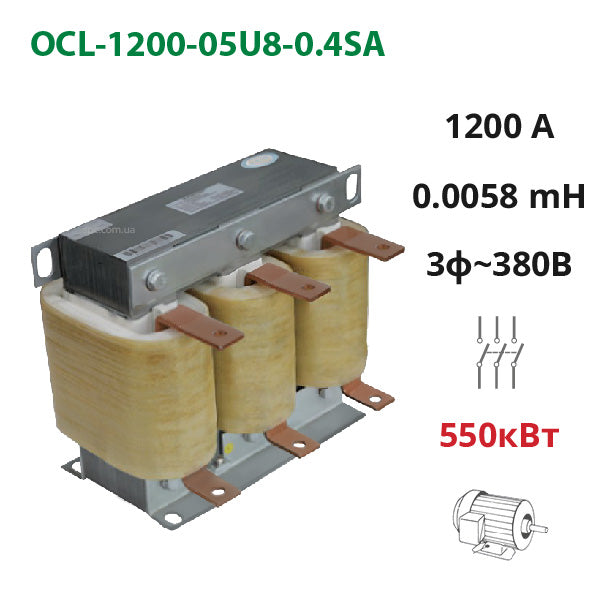

Motor (output) choke 1200A, 380V, 550 kW, 0.0058 mH (OCL-1200-05U8-0.4SA)
In Stock
Product Code:
SPLC-OCL-1200-05U8-0.4SA
Brand:
Specialist
106 727,28 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Three-phase motor choke 1200A, 380V, 550 kW, 0.0058 mH OCL-1200-05U8-0.4SA is installed at the output of the frequency converter to filter the current supplied to the three-phase electric motors 380 V motor. The purpose of the output choke is as follows:
- Creating inductive resistance that limits the engine power current and thereby prevents its overload and damage;
- Preventing sudden current surges during engine start-up, which can damage equipment;
- Cleansing the current sine wave from unwanted high harmonics (high-frequency noise) that occur in the electric drive.
Use the AC output choke in the circuit between the frequency converter and the asynchronous motor to improve the power supply quality of the drive, as well as ensure the safe and long-term operation of the equipment.
Technical characteristics of the motor output choke OCL-1200-05U8-0.4SA
| Operating Voltage | 3 phases 380 V |
|---|---|
| Voltage Drop | 1% for 380 V (less than 4%) |
| Operating Frequency | 50/60 Hz |
| Operating Current | 1200 A |
| Maximum Current | may exceed operating by no more than 150% for 60 sec |
| Inductance | 0.0058 mH |
| Insulation Class | F, H |
| Protection Class | IP00 - IP22 |
| Noise | ≤65 dB |
| Temperature Rise | ≤85 K |
| Dielectric Penetration | AC 3000 V/50 Hz/5 mA/10 sec |
| Insulation Resistance | 100 VDC, ≤100 MOhm |
| Ambient Operating Temperature | -25 ~ +45℃ |
Operating Conditions of the Motor Choke (Line Reactor) OCL-1200-05U8-0.4SA
- Within a temperature range from minus 10 to 45℃ the nominal parameters of the choke are tabular. At temperatures above 55℃, the nominal current decreases by approximately 2% for each additional +1℃.
- The altitude above sea level should not exceed 2000 m.
- Air humidity less than 90%.
- Environment: no harmful gases, flammable items, availability of good ventilation.
When placing the choke in a cabinet, ensure ventilation for adequate equipment cooling.
