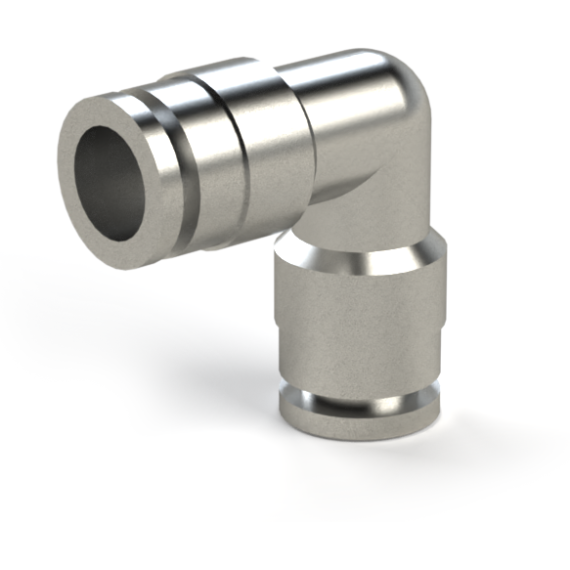

Bronze fitting SF-MPV series corner collet adapter

Do you have any questions about the product?
We will be happy to answer them in messengers

Bronze fitting SF-MPV series corner collet adapter

Name: Bronze fitting SF-MPV series corner collet adapter
Brand: Specialist
SKU: SF-MPV 4
Price: 105.54 UAH
Availability: InStock

In Stock

Tube O.D.

12 mm 10 mm 8 mm 6 mm

Час доставки

60 днів 1 день

Model

Manufacturer

Specialist

from 105,54 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 4 variants


Name

Model Price Availability Qty

Action

SF-MPV 6

Bronze fitting SF-MPV series corner collet adapter

Tube O.D.=6 mm Час доставки=1 день

SF-MPV 6

105,54 UAH

In Stock

SF-MPV 8

Bronze fitting SF-MPV series corner collet adapter

Tube O.D.=8 mm Час доставки=1 день

SF-MPV 8

131,88 UAH

In Stock

SF-MPV 10

Bronze fitting SF-MPV series corner collet adapter

Tube O.D.=10 mm Час доставки=60 днів

SF-MPV 10

105,54 UAH

In Stock

SF-MPV 12

Bronze fitting SF-MPV series corner collet adapter

Tube O.D.=12 mm Час доставки=60 днів

SF-MPV 12

130,56 UAH

In Stock

Technical specifications

Tube O.D.

6 мм, 8 мм, 10 мм, 12 мм

Connection type

Collet fitting

Body material

Bronze

Variations

The connector is straight through

Delivery time

1 день, 60 днів

Fitting type

Angular 90°

Description

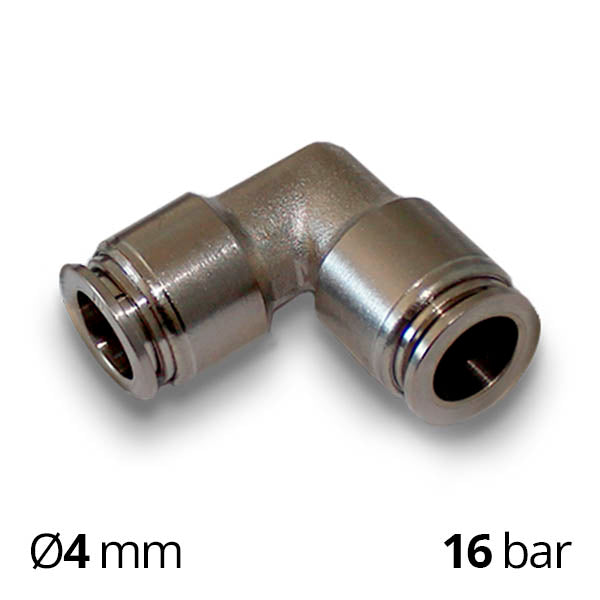

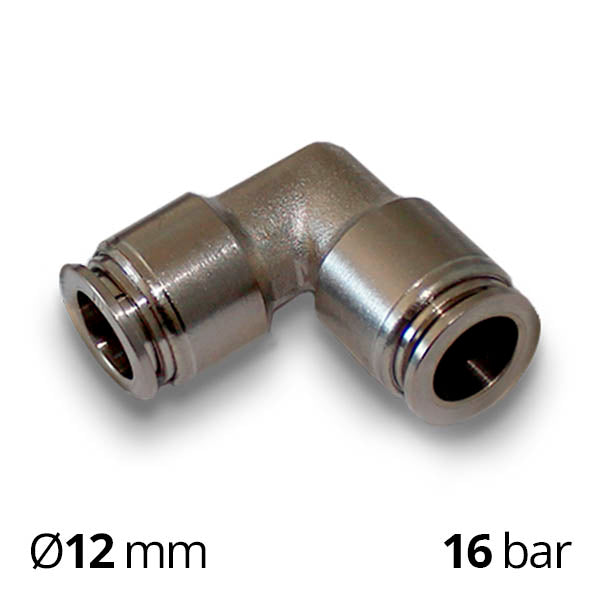

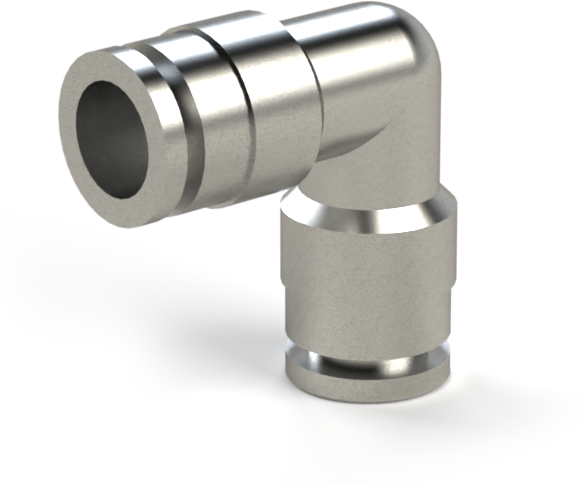

The Bronze SF-MPV Series Quick-Release Fitting is an L-shaped elbow adapter with a metal body and push fittings on both sides. The fitting is suitable for repeated and quick connections of flexible polyethylene, polyurethane, and polyamide tubes, where compressed air, water, and other compatible liquids or gases with NBR seals will flow.

SF-MPV Series fittings have identical inlets and outlets:

Push-in quick-release connection for pneumatic tubing with an outer diameter of 4, 6, 8, 10, or 12 mm.

Nickel-plated bronze is used for the production of metal fittings. An NBR o-ring is used for sealing the push-in. Metal fittings are designed for use with compressed air at a pressure of 0-10 bar, with a maximum allowable pressure of up to 16 bar.

Table — Operating Parameters and Materials of SF-MPV Fittings
Fitting Type	Angled 90°, L-shaped
Outer Tube Diameter	4, 6, 8, 10 or 12 mm
Operating Medium	Compressed air, water
Working Pressure Range (air)	0-10 bar
Maximum Pressure (air)	16 bar
Body and Push-in Material	Nickel-plated bronze
Seal Material	NBR

Advantages:

Quick-release push-in connections reduce installation and maintenance time for pneumatic systems;
When using the push-in clamp, the tube retains its shape, and can be immediately reused for subsequent connections;
Compared to SF-EPV plastic fittings, metal SF-MPV withstand higher compressed air pressure (up to 16 bar);
Bronze fittings with NBR seals are compatible with various liquids and gases.
