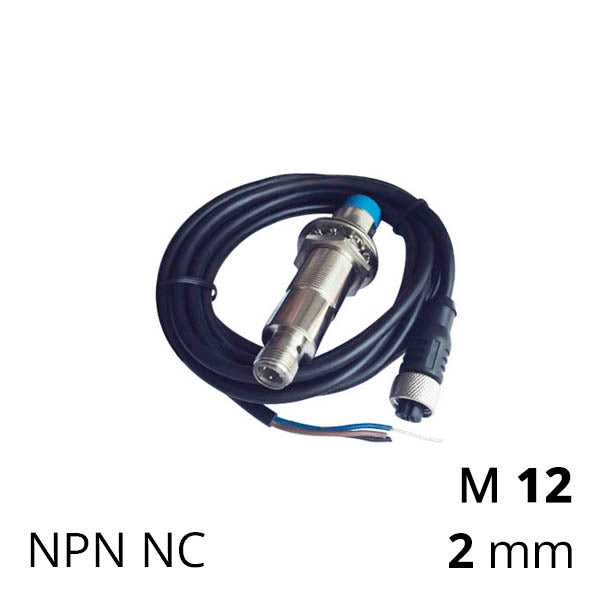

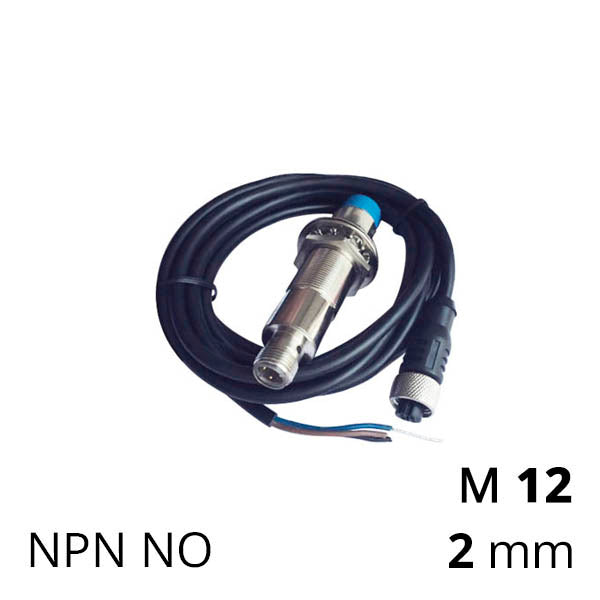

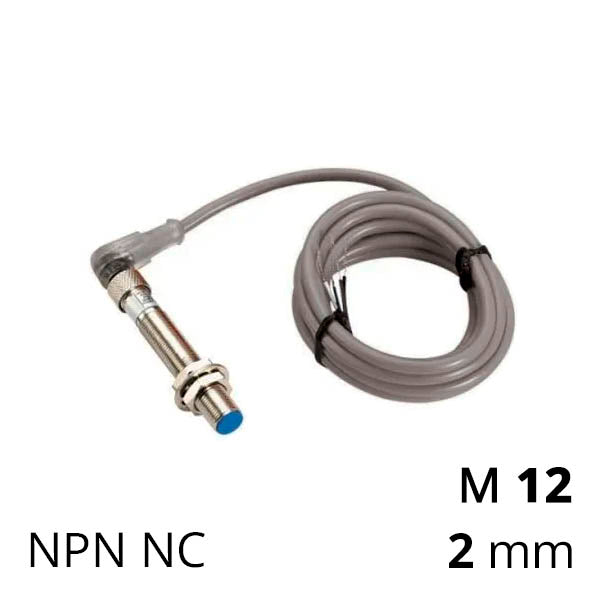

Non-contact inductive sensor 24V DC NPN type SE-SEN-TKI(L)-12N(C)2C is used for proximity detection, position control, counting, determining the speed of metal target objects. The activation distance of the end switch for metals is up to 2mm. This sensor model has a transistor and electronic components that withstand external loads up to 200mA, high resistance to electromagnetic interference thanks to an optimally selected frequency of 600Hz, moisture-resistant IP66 casing, a visible 360-degree light indicator, a round pin-3 or pin-4 connector for wiring — a high-quality SWP three-wire signal cable length of 2m included.
| Output Type | 3-wire NPN NO or NPN NC |
|---|---|
| Detector | Metal Detection (steel, stainless steel, chrome, nickel, copper, aluminium etc.) |
| Standard Detection Target | Iron plate 12×12×1mm |
| Detection Distance | Sn = 2mm |
| Effective Operating Distance | 0 to 1.6mm |
| Frequency | ≤600Hz |
| Power Supply | DC 10…30 Volt |
| Max. Load | ≤200mA |
| Casing | Threaded M12 cylindrical screw |
| Connection | Cable length 2 metres |
| IEC Protection Rating | IP66 |
Inductive NPN end sensors can be connected in series:
Or parallel connection:
