Specialist compressors of the SCC-ZAY-30 series are a ready-made assembly of an oil-filled screw compressor for stationary installation. Designed for generating high air pressure — from 7 to 10 bar (by default), up to 12 bar — on request.
The compressor is managed via a controller with a touch screen display that supports Cyrillic. By connecting through Wi-Fi, you can view compressor parameters and receive notifications about filter replacements on a mobile device or computer. The housing is rated for dust and moisture protection IP23.

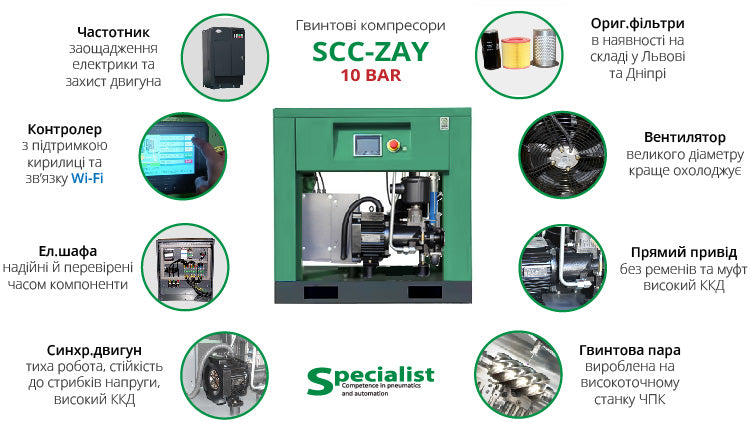

The feature of this series is the built-in frequency converter for the ability to not only adjust the discharge pressure but also the compressor's performance. This saves electricity and increases the compressor’s service life.
When selecting a model, take into consideration that the performance of any compressor depends on the outlet air pressure. Use the table to purchase the SCC-ZAY screw compressor with the required power.
| Model | SCC-ZAY-30 | ||
|---|---|---|---|
| Power, kW | 22 | ||
| Performance at Specified Discharge Pressure | 0.7 MPa | 3.8 m3/min | 3800 L/min |
| 0.8 MPa | 3.6 m3/min | 3600 L/min | |
| 1.0 MPa | 3.2 | 3200 L/min | |
| 1.2 MPa* | 2.9 m3/min* | 2900 L/min* | |
The single-stage compressor includes the following main elements:
Compared to counterparts in the Ukrainian market, Specialist industrial screw compressors are assembled from high-quality and durable components. We have filters and spare parts available for post-warranty service in stock.

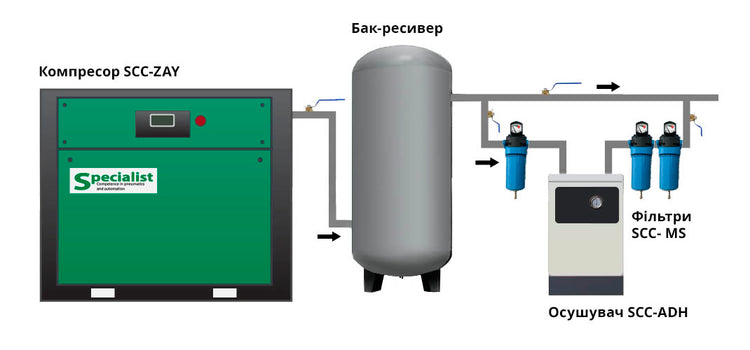

We supply screw compressors of the SCC-ZAY-30 series, which are ready for connection and operation. For power supply, the compressor must be connected to a three-phase alternating current network with a voltage of 380 V and a frequency of 50 Hz. To the air duct — with a fitting with a cylindrical pipe thread (size depends on the model).
More detailed installation requirements (room ventilation, distances to walls) are provided in the manual.
Some compressor models SCC-ZAY are available in stock at the "Specialist" in Ukraine, others we offer for delivery on order within 60 days. Our company also supplies both individual compressors and a complete set of equipment for working with compressed air — receivers, dryers, filters, pressure boosters, valves, regulators, distributors, cylinders, etc.
Contact us to receive a commercial offer with price and a detailed presentation of the equipment we can offer per your request.
