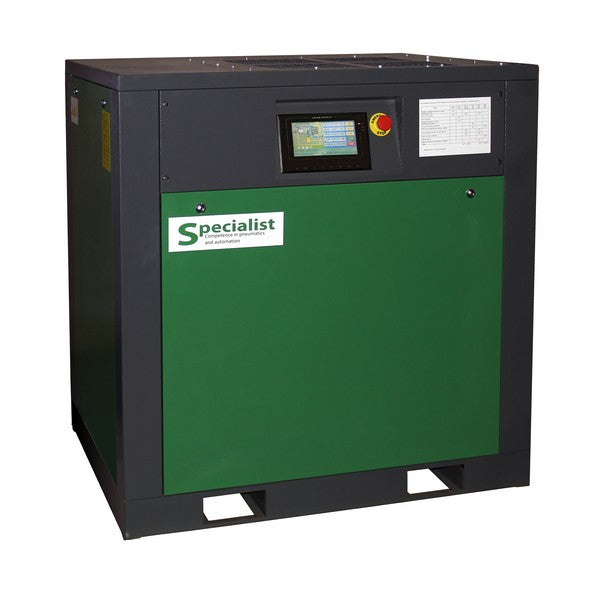

Screw compressor 6200 l/min, 10 bar, 37 kW (SCC-ZA-50)

The SCC-ZA-50 is a 37 kW screw compressor with a performance of 6200 l/min from Specialist, designed as a complete assembly for stationary installation. Intended for high air pressure supply — from 7 to 10 bar (default), up to 12 bar — on request.

The compressor is controlled through a controller with a Touch Screen display supporting Cyrillic script. Parameters can be monitored and filter replacement notifications received via a mobile device or computer through Wi-Fi connection. The case has a dust and moisture protection level of IP23.

Performance of SCC-ZA-50 Series Screw Compressors

The performance of any compressor depends on the output air pressure

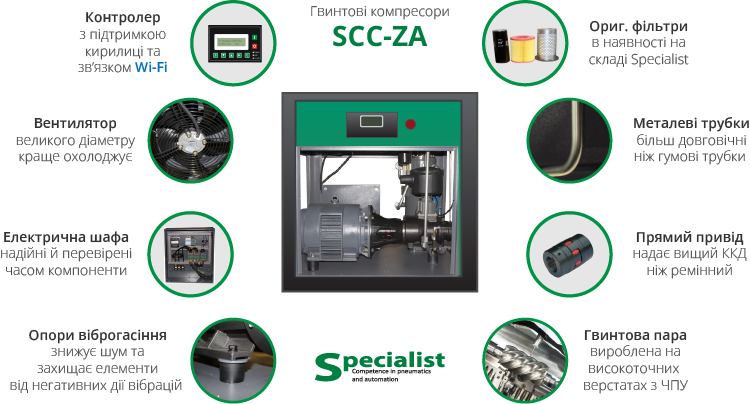

Design and Benefits of SCC-ZA Screw Compressor

This single-stage compressor consists of the following main elements:

• screw block (pair)
• electric motor with direct drive
• air-oil separator
• oil piping system
• cooling system
• air piping system
• electrical control system (controller and integrated control cabinet)

Compared to other models available in Ukraine, the industrial screw compressors from Specialist are built with high-quality and durable components. We have filters and spare parts available for post-warranty service.

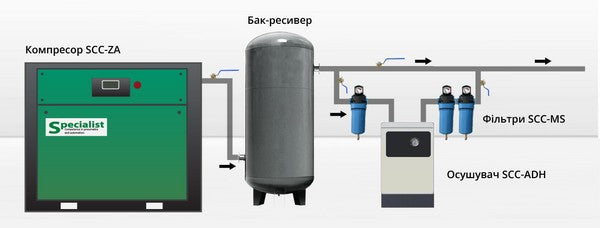

Connecting the SCC-ZA Compressor

We supply SCC-ZA series screw compressors ready for connection and operation. The compressor must be connected to a three-phase AC power network with a voltage of 380 V and a frequency of 50 Hz. Connection to the air pipeline is made via a fitting with a cylindrical pipe thread (size depends on the model).

More detailed installation requirements (room ventilation, distance to walls) are provided in the manual.
