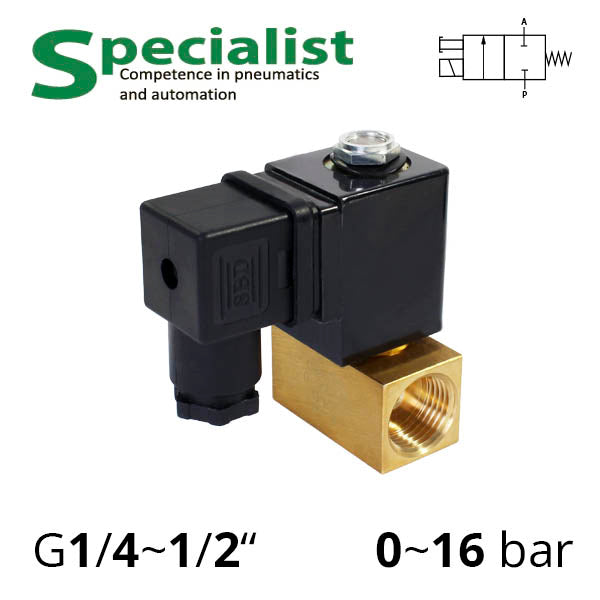

Solenoid valve remote control 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Solenoid valve remote control 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V

Name: Solenoid valve remote control 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V
Brand: Specialist
SKU: SV-FD-ES-22NC-08-AC220V
Price: 1980.24 UAH
Availability: InStock

In Stock

Power Voltage

AC220V DC24V

Thread size

G ½ G ¼ G ⅜

Model

Manufacturer

Specialist

from 1 980,24 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 6 variants


Name

Model Price Availability Qty

Action

SV-FD-ES-22NC-08-AC220V

Solenoid valve remote control 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V

Power Voltage=AC220V Thread size=G ¼

SV-FD-ES-22NC-08-AC220V

1 980,24 UAH

In Stock

SV-FD-ES-22NC-08-DC24V

Solenoid valve remote control 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V

Power Voltage=DC24V Thread size=G ¼

SV-FD-ES-22NC-08-DC24V

1 980,24 UAH

In Stock

SV-FD-ES-22NC-10-AC220V

Solenoid valve remote control 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V

Power Voltage=AC220V Thread size=G ⅜

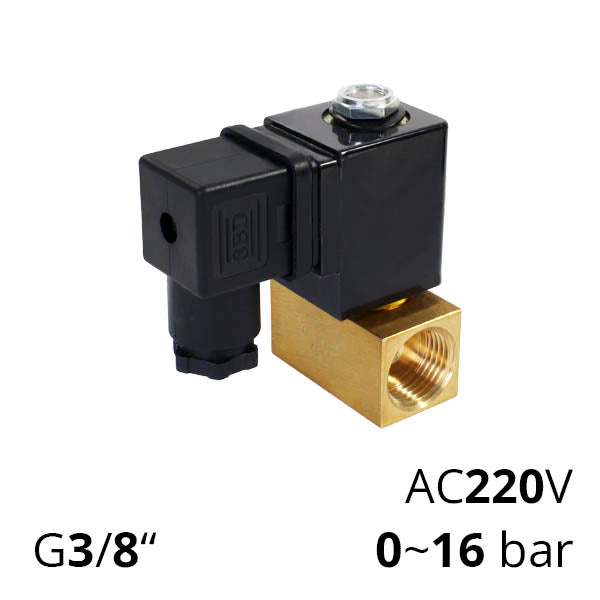

SV-FD-ES-22NC-10-AC220V

1 980,24 UAH

In Stock

SV-FD-ES-22NC-10-DC24V

Solenoid valve remote control 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V

Power Voltage=DC24V Thread size=G ⅜

SV-FD-ES-22NC-10-DC24V

1 980,24 UAH

In Stock

SV-FD-ES-22NC-15-AC220V

Solenoid valve remote control 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V

Power Voltage=AC220V Thread size=G ½

SV-FD-ES-22NC-15-AC220V

1 980,24 UAH

In Stock

SV-FD-ES-22NC-15-DC24V

Solenoid valve remote control 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V

Power Voltage=DC24V Thread size=G ½

SV-FD-ES-22NC-15-DC24V

1 980,24 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G ½", G ¼", G ⅜"

Coil voltage

AC220V, DC24V

Nominal diameter

TWO 1.9

Тип контролю

Electromagnetic

Description

Drain electromagnetic valve of the SV-FD-ES-22NC series is used for draining condensate from screw and piston compressor receivers, as well as in automatic irrigation systems. This valve is 2/2 normally closed — it will block the flow in the absence of power.

The set includes a solenoid (coil) AC220V or DC24V. FD series solenoid valves have a reliable construction, increased nominal diameter and a wide range of operating pressures.

2-way normally closed timer valve coding

Model		SV-FD-ES-22NC...AC220V	SV-FD-ES-22NC...DC24V
Construction		Two-position two-way normally closed valve with direct electric control
Material		Bronze (stainless steel), NBR
Connection	SV-FD-ES-22NC-08	G1/4"
	SV-FD-ES-22NC-10	G3/8"
	SV-FD-ES-22NC-15	G1/2"
Mounting		Any position
Working Pressure Range		up to 16 bar (standard) 25, 40 or 80 bar (on order)
Operating Temperature Range		-20... + 60 °C
Adjustable Drain Time		0.5...10 sec	0.5...99 sec
Adjustable Interval Between Drain Impulses		0.5...45 min	0.5...99 min
Nominal Diameter		1.9...4.5 mm
Protection Grade, Insulation Class		Class F, IP65 (with connector)
Power Supply Voltage		AC24V, AC110V, AC220V, DC24V
