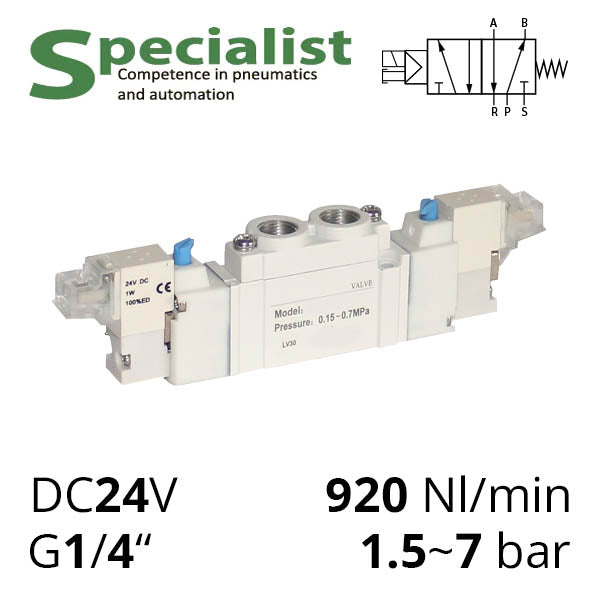

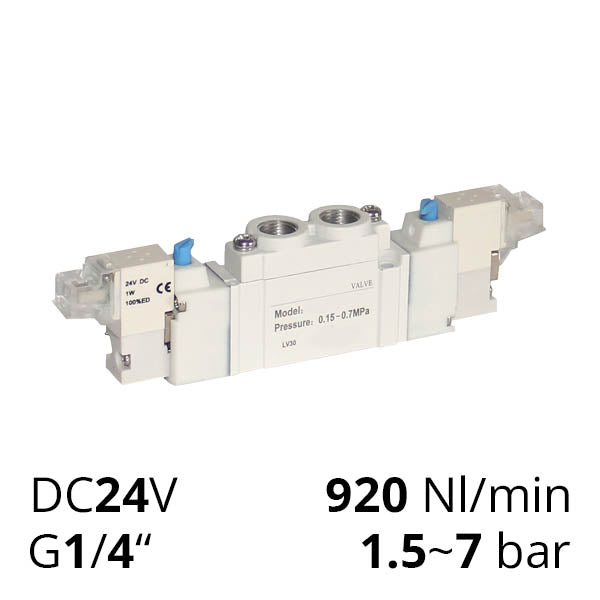

Pneumatic distributor 5/2 with electromagnetic control analog SMC SY7120

The model SV-X70-ES-52-08 from Specialist is an analogue of the pneumatic valve SMC SY7120 (series SY7000) with threaded ports 1/4″ and air flows up to 920 l/min.

These five-line two-position pneumatic valves are very compact when mounted in a group on a plate and have coil connections to DC 24V via a 2-pin connector (included in the set price). Electropneumatic control and construction allow the use of an efficient low-power coil, minimizing electricity consumption.

With the electropneumatic valve SV-X70-ES-52-08-DC24V, you can switch compressed air lines from 1.5 to 7 bar for controlling a double-acting pneumatic cylinder, etc. The control method is monostable, meaning there is a return spring in the construction, which fixes the slide valve in the position P→B (air supply from the entrance P to the outlet B) and simultaneously A→R (air release from outlet A) when there is no power supply to the electrical coil. With the application of 24 Volts, the device switches to the position P→A and B→S (supplying air to outlet A, pressure release from outlet B) as soon as the 24 VDC signal is cut, the spring returns the valve to its initial state.
