″Daddy″ quick coupling 1/4″ external thread (SF-KM-M-1/4-B)

Do you have any questions about the product?
We will be happy to answer them in messengers

″Daddy″ quick coupling 1/4″ external thread (SF-KM-M-1/4-B)

Name: ″Daddy″ quick coupling 1/4″ external thread (SF-KM-M-1/4-B)
Brand: Specialist
SKU: SF-KM-M-1/2-B
Price: 126.00 UAH
Availability: InStock

In Stock

Product Code:

SF-KM-M-1/2-B

Brand:

Specialist

126,00 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Connection type

Male euro quick release, With external thread

Thread

G 1/2"

Body material

Nickel-plated bronze

Inlet pressure

25 bar

Variations

Union

Fitting type

Direct

Description

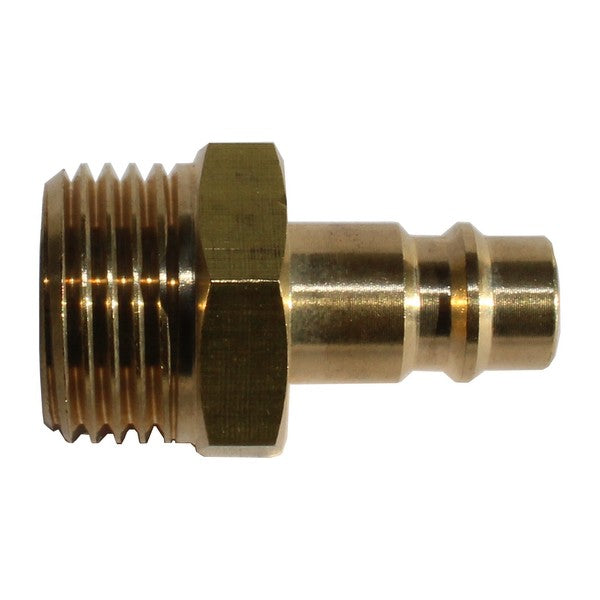

The "male" connector with external thread 1/2″ SF-KM-M-1/2-B is a euro quick-release for pneumatic tools. This threaded plug screws into the handle of pneumatic wrenches, pneumatic hammers, spray guns, and other guns with a half-inch air inlet to easily connect pneumatic tools to hoses through a quick disconnect coupling (BRS).

The pneumatic coupling with "male" thread model SF-KM-M-1/2-B is made of bronze, has a nominal diameter of 7.6 mm and allows up to 2100 nl/min flow rate. This quick-release fitting is designed to operate in vacuum and compressed air pipelines under high pressure up to 25 bar. 2.5 MPa. Operating temperature - from -20 to +100°C.

Parameters of the Quick Connector SF-KM-M-1/2-B
Connection	external thread 1/2 inch
Nominal Passage Diameter	7.6 mm
Normal Air Flow	2100 nl/min
Max Operating Pressure	25 bar
Operating Temperature Range	-20 ~ 100°C
