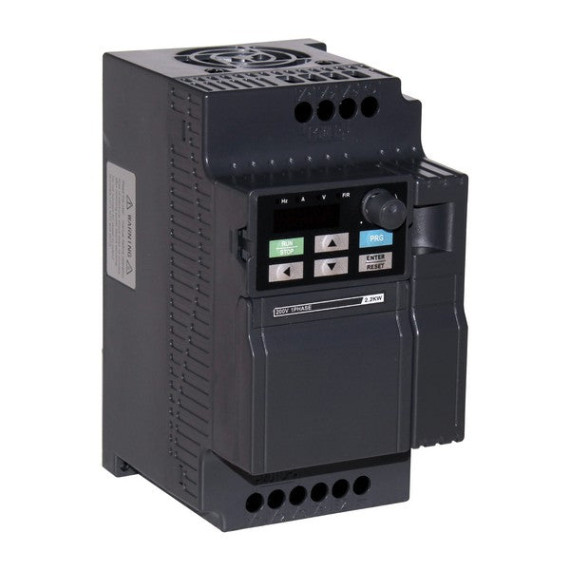

Scalar frequency converter 0.75 kW, 220 V (SPLC-NZE-0R7G2)

Nietz SPLC-NZE-0R7G2 Scalar Frequency Inverter is designed for controlling the rotation speed of low-power single-phase asynchronous motors. The nominal supply voltage of the connected single-phase motor should be 220V, and the power should not exceed 0.75 kW (depending on the model).

The scalar frequency inverter can be configured and start-stop commands can be issued using the RS-485 interface, external terminals, or directly on the operator panel, which includes an LED display, 4 indicators, 6 buttons, and a built-in potentiometer. The operator panel is removable and for convenience can be relocated to the front wall of the converter cabinet (you need to buy a connector as it is not included in the standard kit).

The Nietz NZE series inverter uses scalar control U/f, and also has a motor slip compensation function to improve performance at low rotor speeds. The output frequency can be achieved in the range from 0.1 to 400 Hz with a setting accuracy of 0.01 Hz. The device provides warnings and errors, as well as protective shutdown in case of overheating, overcurrent and voltage, low voltage, short circuit, etc.

The case of the SPLC-NZE-0R7G2 scalar control converter has a IP20 dust and moisture protection rating, so the devices must be installed indoors, inside a protective cabinet. Provision is made for NZE frequency converters to be wall-mounted on a standard 35 mm DIN rail.

In our Specialist store you can purchase scalar inverters for engines. We offer a wide range of new devices, available for delivery to any city in Ukraine.

To buy the appropriate scalar inverter, you need to consider its main characteristics, such as manufacturer, series, number of phases, etc. You can do this yourself using the filters on our website, or contact our specialists for assistance.
