Screw compressor with receiver 1600 l/min, 7~10 bar, 11 kW SCC-ZAIY-15

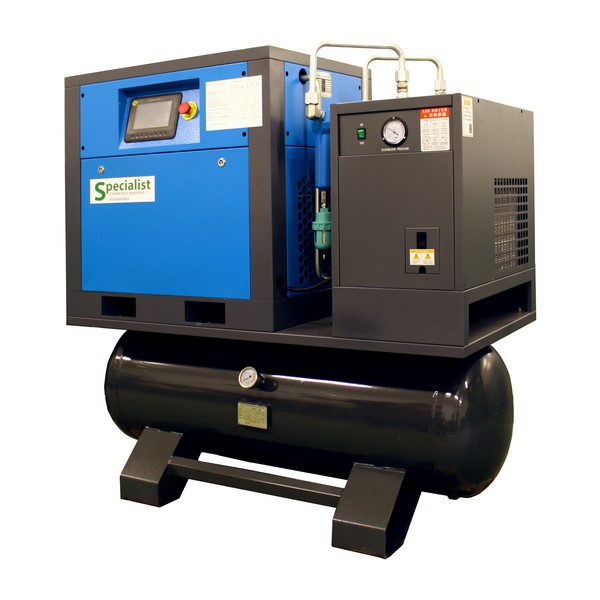

Specialist series compressors SCC-ZAIY-15 are ready-to-use screw oil-filled compressors 11 kW equipped with a dryer and separator moisture separators, mounted on a 300 l receiver to save space.

This assembly performs several functions:

• air compression with adjustable output pressure from 7 to 10 bar (default) or up to 12 bar (on request);
• cooling and efficient air moisture removal contained in the atmospheric air;
• accumulating air reserves in the receiver and equalising pressure pulsations in the pneumatic system.

The compressor is controlled via a touch screen controller. Model SCC-ZAIY-15 has frequency regulation, allowing adjustment of the compressor motor speed to the required air consumption and saving electricity.

Connecting via Wi-Fi allows viewing compressor parameters and receiving filter replacement notifications on a mobile device or computer. The housing is rated with dust and moisture protection IP23.

The nominal air output volume is 1600 l/min (1.6 cubic meters per minute). Actual performance, like any compressor, depends on the set output air pressure value.

* — parameters at an output pressure of 1.2 MPa only for custom models supporting an output pressure of 12 bar.

Compressor assembly "4 in 1" consists of the following main components:

• compressor
• refrigeration type air dryer
• separator-moisture separator group
• receiver

Compressor components:

• screw block (pair)
• direct-drive electric motor
• air-oil separator
• oil pipeline system
• cooling system
• air duct system
• electric control system (controller and inbuilt electrical cabinet with frequency converter)

Compared to analogues in the Ukrainian market, Specialist industrial screw compressors are assembled from quality and durable components. We have in stock filters and spare parts for after-warranty service.

We supply single-stage screw compressors of the series SCC-ZAIY-15, ready for connection and operation. For power supply, the compressor must be connected to a three-phase alternating current network with a voltage of 380 V and frequency of 50 Hz. To the air duct — using a pipe fitting with cylindrical thread (size depends on the model).

More detailed installation requirements (room ventilation, distances to walls) are given in the instructions.

This assembly is supplied on order in 60 days. Our company also supplies compressors and a set of equipment for operating on compressed air separately — receivers, dryers, filters, pressure boosters, valves, regulators, distributors, cylinders, etc.

Contact us to get a detailed commercial offer with price and equipment manufacturing times as per your request.
