Pneumatic distributor 5/3 with electromagnetic control, thread 1/2″ SV-E2-EE-53E-15-V series

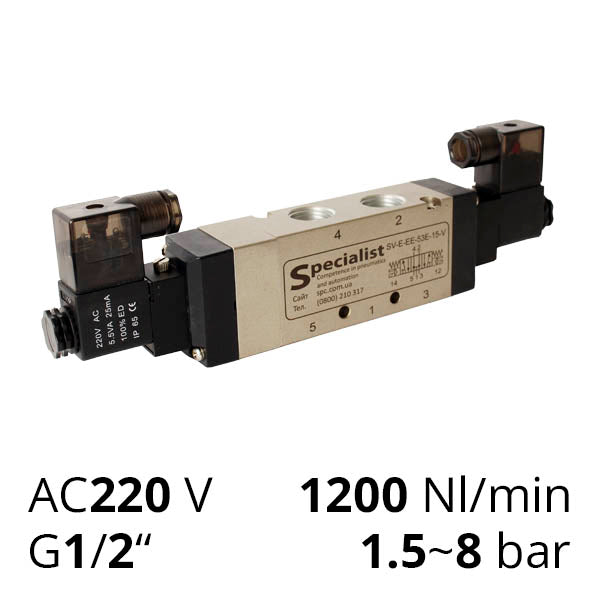

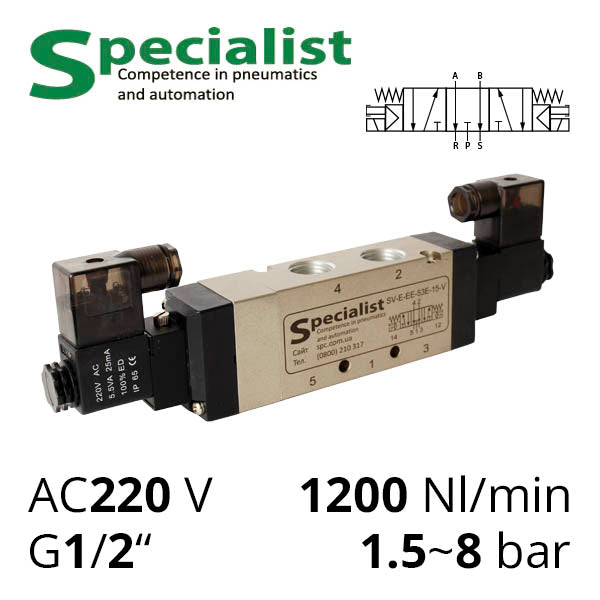

The pneumatic distributor 5/3 with electromagnetic control series SV-E2-EE-53E-15-V is a five-line three-position monostable pneumatic air distributor with a closed centre and bilateral electropneumatic control, designed for use with compressed air at operating pressures of 1.5-8.5 bar. They can be used to control double-acting pneumatic cylinders or other applications.

Five-line pneumatic distributors have five ports with internal cylindrical pipe thread 1/2″ inch on the body, marked with numbers or letters:

1. "P" — the inlet port for connecting compressed air supply
2. "A" — outlet port 1
3. "S" or "ExA" — exhaust port for relieving pressure from outlet 1
4. "B" — outlet port 2
5. "R" or "ExB" — exhaust port for relieving pressure from outlet 2

In the absence of control signals or simultaneous voltage supply to both coils, the pneumatic distributor will assume a position when all lines are closed.

The customer has the opportunity to order electromagnetic coils with necessary electrical characteristics:

• DC12V — direct current, voltage 12V
• DC24V — direct current, voltage 24V
• AC220V — alternating current, voltage 220V

Other coils, including explosion-proof types, are installed on the pneumatic distributor only upon customer request.
