Nominal diameter
150~200, 250~300
Do you have any questions about the product?
We will be happy to answer them in messengers
Adapter for mounting a pneumatic drive on a shut-off valve
In Stock
Diameter of conditional passage
Model
SC-BV2-6JA-150-RAT-Bracket (150-200)
Manufacturer
Specialist
from 1 229,22 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Models
Found 2 variants
Name
Model
Price
Availability
Qty
Action

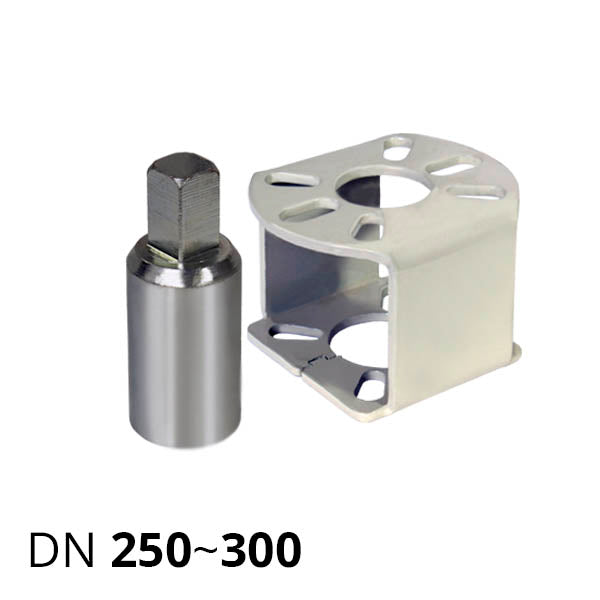

SC-BV2-6JA-300-RAT-Bracket (250-300)
Adapter for mounting a pneumatic drive on a shut-off valve
Diameter of conditional passage=250~300
SC-BV2-6JA-300-RAT-Bracket (250-300)
1 502,10 UAH
In Stock

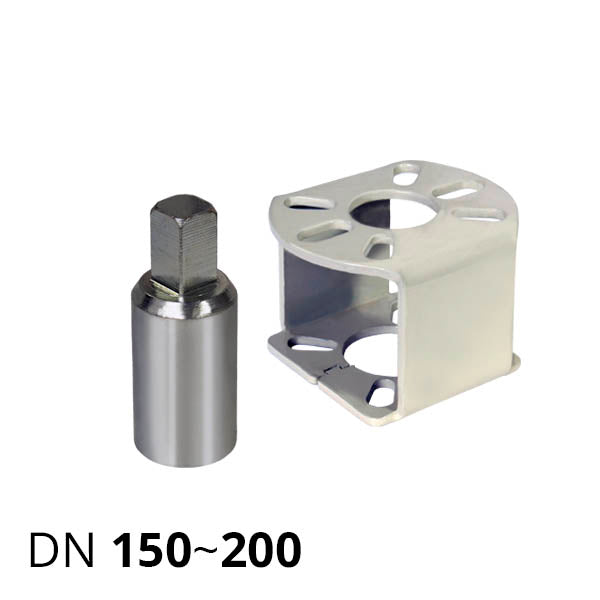

SC-BV2-6JA-150-RAT-Bracket (150-200)
Adapter for mounting a pneumatic drive on a shut-off valve
Diameter of conditional passage=150~200
SC-BV2-6JA-150-RAT-Bracket (150-200)
1 229,22 UAH
In Stock
Request a variant
Fill in the form and we will get back to you regarding this variant.
Technical specifications
Description
The adapter for mounting pneumatic actuators on shut-off valves is used to install a rotary actuator on butterfly valves of the SCBF-BV2 series for bulk products. The adaptor consists of two parts:
- painted metal mounting flange (platform for pneumatic actuator) ISO 5211
- adaptor-extension of the output shaft, featuring a groove for a spline connection on the shaft side and a square 14 or 17 mm on the actuator connection side
There are two sizes of these adapters that need to be selected according to the nominal diameter of the valve (DN).
| DN for BV2 | 150-200 | 200-250 |
|---|---|---|
| Platform ISO 5211 | F04/F07 | F07/F10 |
| Drive Square | 14 | 17 |
