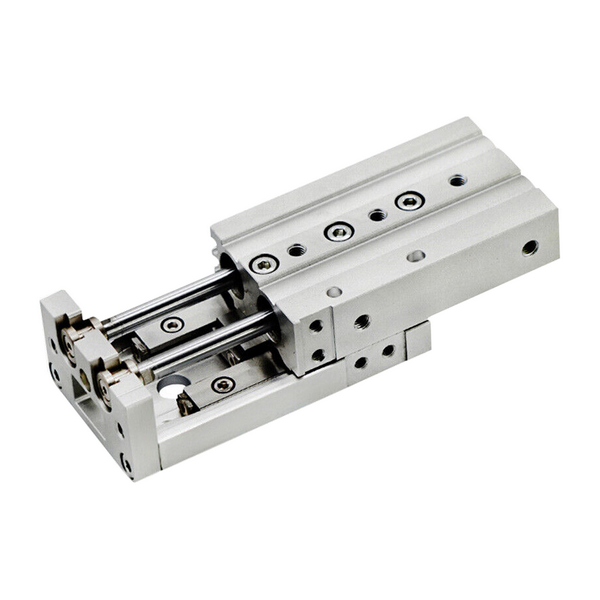

Name: Pneumatic carriage of the SC-MXS series
Brand: Specialist
SKU: SC-MXS6x10

All about the product
Technical specifications
Reviews (0)
Similar Products

Technical specifications

Діаметр поршню

from 6 to 25 mm

Довжина ходу

from 10 to 150 mm

Delivery time

from 60 to 90 days

Description

The SC-MXS series pneumatic slide table is a short-stroke air cylinder with dual rods and a slide bearing platform, specifically created for precise positioning tasks. Its design allows the pneumatic slide table to be mounted on a pneumatic actuator like the SC-CXSW or other pneumatic cylinder models to enable movement along more than one axis simultaneously. Additionally, the mounting holes allow for securing loads from the top or bottom of the SC-MXS pneumatic slide table body.

Specifications of the SC-MXS Pneumatic Cylinder-Slide Table
Model	SC-MXS6	SC-MXS8	SC-MXS12	SC-MXS16	SC-MXS20	SC-MXS25
Piston Diameter, mm	Ø6×2	Ø8×2	Ø12×2	Ø16×2	Ø20×2	Ø25×2
Equivalent Piston Diameter, mm	8	11	17	22	28	35
Operational Environment	Air (after 40 μm filtration)
Action Type	Double action
Max Operating Pressure	7 bar
Min Operating Pressure	1.5 bar
Operating Temperature Range	-10…+60°C (with dry air without moisture)
Damping	Rubber pads (standard)
Lubrication	Not required
Air Connection Thread	M3×0.5	M5×0.8			Rc1/8″
