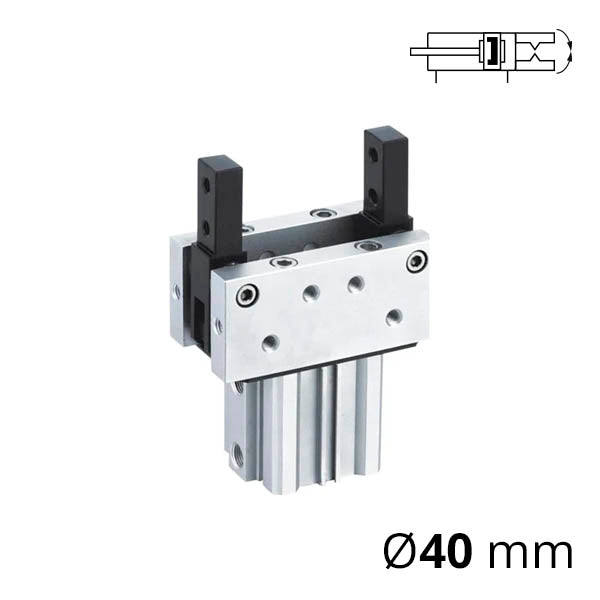

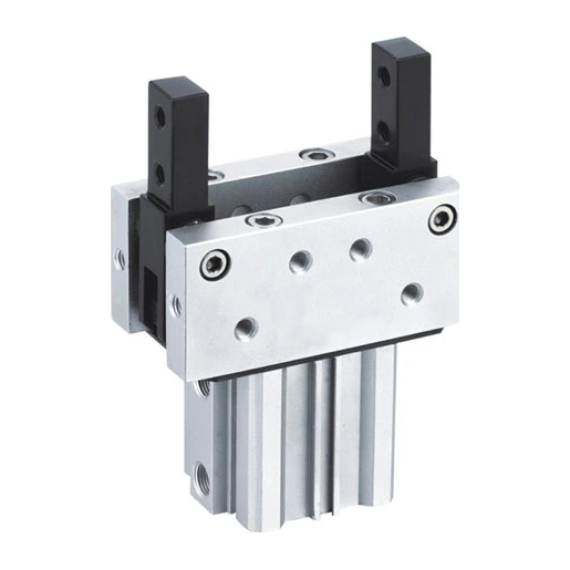

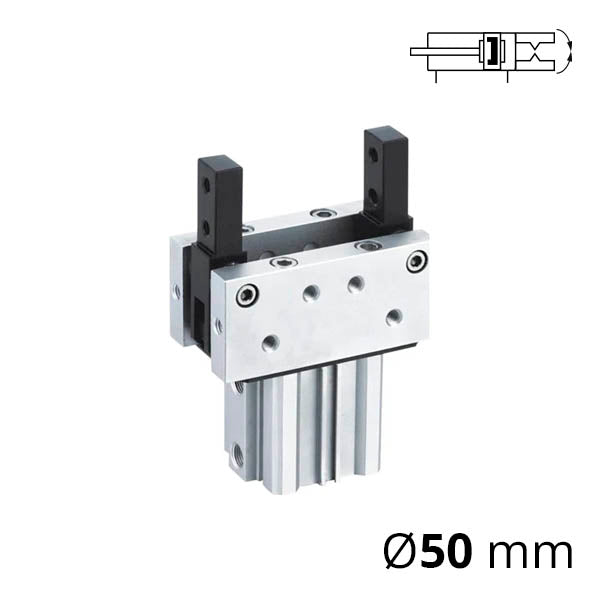

The SC-MHT2 pneumatic radial gripper has an opening angle from –3° to +28° and is available with piston diameters from 32 to 63 mm.
| Diameter, mm | 32 | 40 | 50 | 63 |
|---|---|---|---|---|
| Operating medium | Compressed air | |||
| Action | Double acting | |||
| Operating pressure range | from 1 to 6 bar | |||
| Ambient temperature | from 5 to 60° C | |||
| Lubrication | Not required (Use ISO VG32 oil if lubrication is needed) | |||
| Air supply ports | Rc 1/8″ | Rc 1/8″ | Rc 1/4″ | Rc 1/4″ |
| Opening and closing angle of fingers | −3°…28° | −3°…27° | −2°…23° | −2°…23° |
| Weight, kg | 0.80 | 1.09 | 1.93 | 2.08 |
| Holding torque at 5 bar, N⋅m | 12.4 | 36.0 | 63.0 | 106 |
Internal structure of the SC-MHT2 gripper's elbow joints
Example of using the SC-MHT2 pneumatic gripper
Installation and mounting methods for the SC-MHT2 pneumatic gripper
