Solenoid valve 2/2 normally open with thread G 1″ (inch) series SV-ZS11-ES-22NO-25

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Solenoid valve 2/2 normally open with thread G 1″ (inch) series SV-ZS11-ES-22NO-25

Name: Solenoid valve 2/2 normally open with thread G 1″ (inch) series SV-ZS11-ES-22NO-25
Brand: Specialist
SKU: SV-ZS11-ES-22NO-25-DC24V
Price: 3407.10 UAH
Availability: InStock

In Stock

Power Voltage

AC220V DC24V

Thread size

G 1

Model

Manufacturer

Specialist

from 3 407,10 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

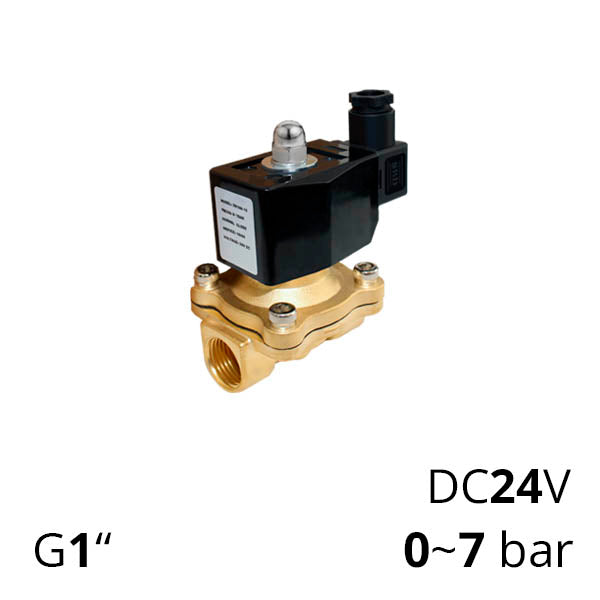

SV-ZS11-ES-22NO-25-DC24V

Solenoid valve 2/2 normally open with thread G 1″ (inch) series SV-ZS11-ES-22NO-25

Power Voltage=DC24V Thread size=G 1

SV-ZS11-ES-22NO-25-DC24V

3 407,10 UAH

In Stock

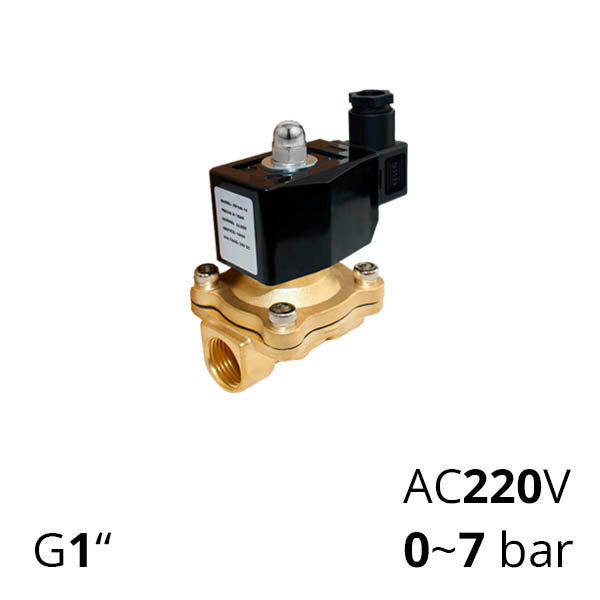

SV-ZS11-ES-22NO-25-AC220V

Solenoid valve 2/2 normally open with thread G 1″ (inch) series SV-ZS11-ES-22NO-25

Power Voltage=AC220V Thread size=G 1

SV-ZS11-ES-22NO-25-AC220V

3 407,10 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1"

Coil voltage

AC220V, DC24V

Nominal diameter

TWO 25

Тип контролю

Electromagnetic

Description

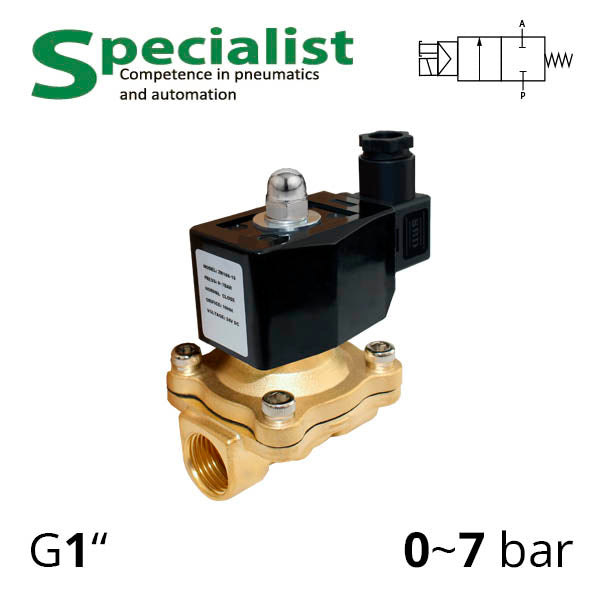

Electromagnetic Valve G1″ (inch) Series SV-ZS11-ES-22NO-25 is a two-position (2/2) normally open (NO) diaphragm valve with unidirectional pilot control. This solenoid valve is open when no electrical signal is applied, allowing the working medium to pass through it freely. Sending an electrical signal to the coil (220v or 24v) causes it to close.

Normally Open Solenoid Valve features a coil available in power supply voltage AC 220 Volts or DC 24 Volts, making the valve convenient for various systems. These electromagnetic valves are suitable for use with water, air, hydraulic fluids, oils with viscosity up to 20 CTS, gas, and other media compatible with the valve's shut-off materials — bronze body and NBR seals. Custom orders can provide normally open (NO) valves with stainless steel body and VITON seals, expanding the range of applications.

Normally Open Shut-Off Valve Series SV-ZS11-ES-22NO-25 with G 1″ (inch) thread size is an optimal choice for water supply, pneumatics, hydraulics, and other industrial applications due to its versatility and reliability. It comes with threaded connection allowing easy integration into any piping system.

Technical Specifications of Solenoid Valves 2/2 NO Series SV-ZS11-ES-22NO-25
Design	Two-line two-position normally open valve with one-way pilot control
Material	Bronze, NBR (standard) Stainless steel AISI304 or AISI316, VITON (optional)
Connection	G1” (inch)
Mounting	Vertical
Operating Temperature Range	from −5 to +80 °C (dry air without moisture)
Power Supply Voltage	AC220V, DC24V
Allowable Voltage Variation	±10%
Working Medium	Air, water, oils (viscosity up to 20CTS), gas
Operating Pressure Range	0—5 bar (water), 0—7 bar (air), 0—5 bar (oil)
