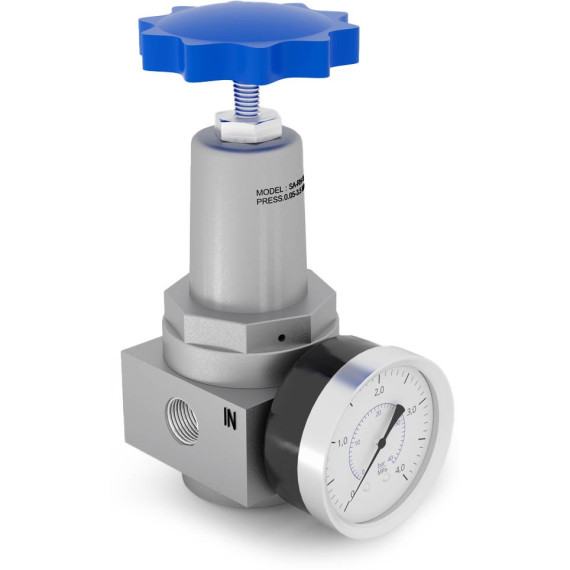

Air pressure regulator with pressure gauge 1/2″~1″, 35 bar, up to 7600 l/min (SA-RH series)
In Stock
Thread size
Model
SA-RH-15
Manufacturer
Specialist
from 3 028,86 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Models
Found 2 variants
Name
Model
Price
Availability
Qty
Action

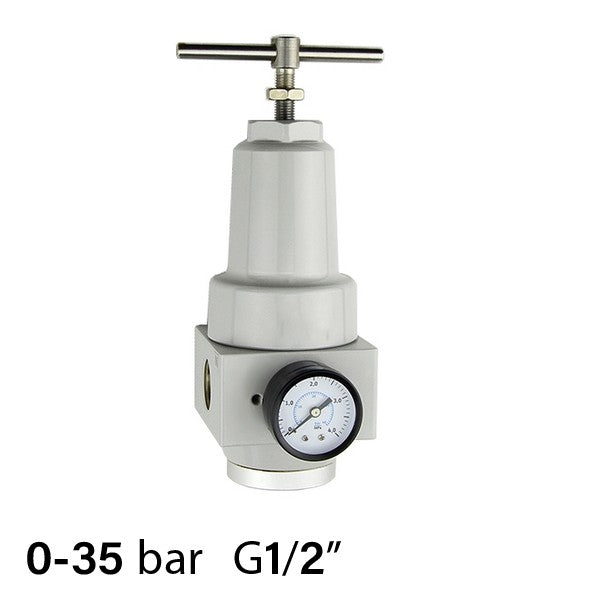

SA-RH-15
Air pressure regulator with pressure gauge 1/2″~1″, 35 bar, up to 7600 l/min (SA-RH series)
Thread size=G 1/2
SA-RH-15
3 028,00 UAH
In Stock

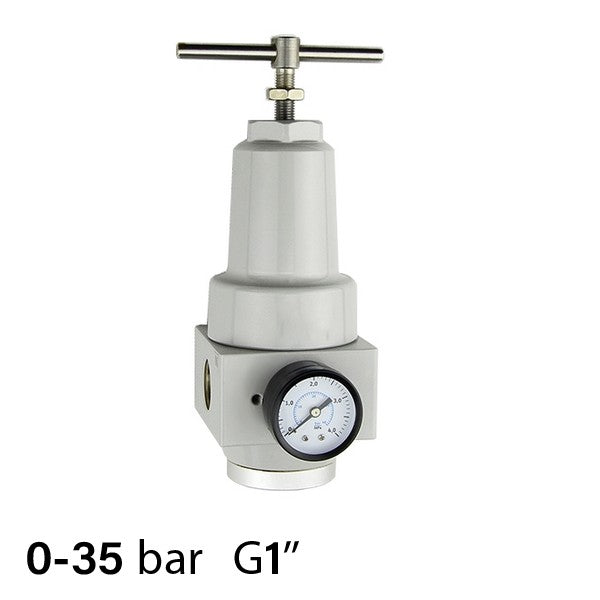

SA-RH-25
Air pressure regulator with pressure gauge 1/2″~1″, 35 bar, up to 7600 l/min (SA-RH series)
Thread size=G 1
SA-RH-25
7 845,00 UAH
In Stock
Request a variant
Fill in the form and we will get back to you regarding this variant.
Technical specifications
Description

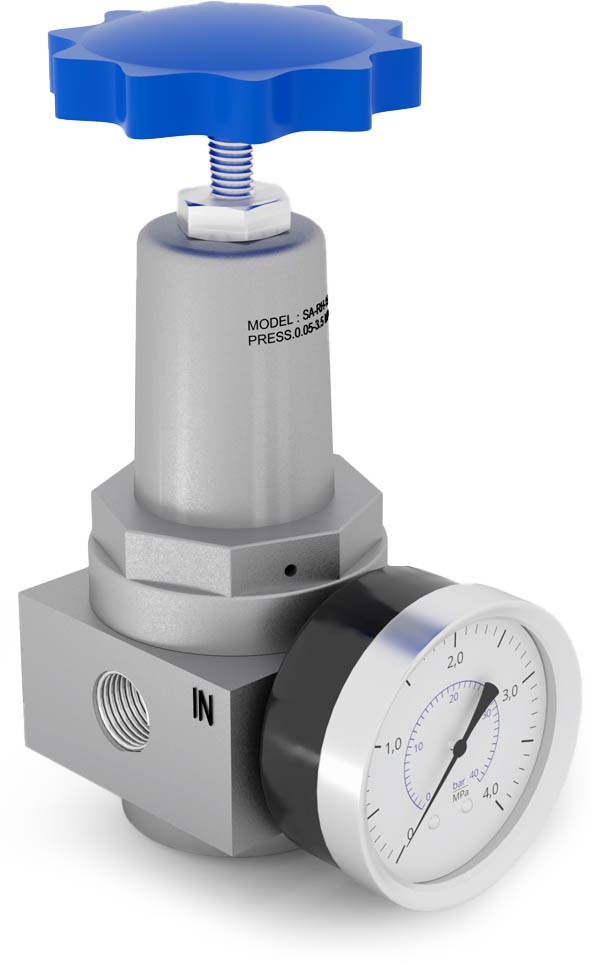

High-pressure regulators SA-RH are used when compressed air pressure in the pneumatic network is up to 40 bar (4 MPa) and allow you to set the output pressure within 1.5-35 bar. Adjustment is manual based on the readings of the mechanical gauge included in the package. These regulators are most commonly used in blow moulding machines for PET containers.
Delivery package:
- Piston type high-pressure regulator
- High-pressure gauge.
Advantages of the SA-RH regulator:
- Sturdy and reliable design, allowing operation under high air pressure.
- Absence of plastic elements.
| RH-15 | RH-25 | |
| Connection thread | G1/2″ | G1″ |
| Gauge thread | G1/4″ | |
| Working medium | Compressed air | |
| Max input pressure, Bar | 40 | |
| Output pressure range, Bar | 1.5 - 35 | |
| Max flow rate, l/min | 2500 | 7600 |
| Construction | Piston regulator with overpressure relief valve | |
| Materials used | Aluminium, steel, nylon, NBR | |
| Installation | In any position | |
| Operating temperature range, °C | 0-60 (up to -10 with dry air) | |
Additional Information
Please note that this regulator has an overpressure relief valve on the consumer side, hence these regulators are not designed for water pressure regulation.
