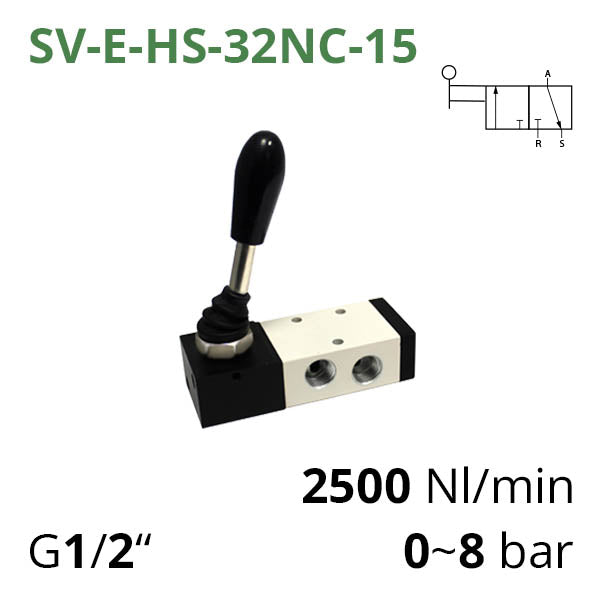

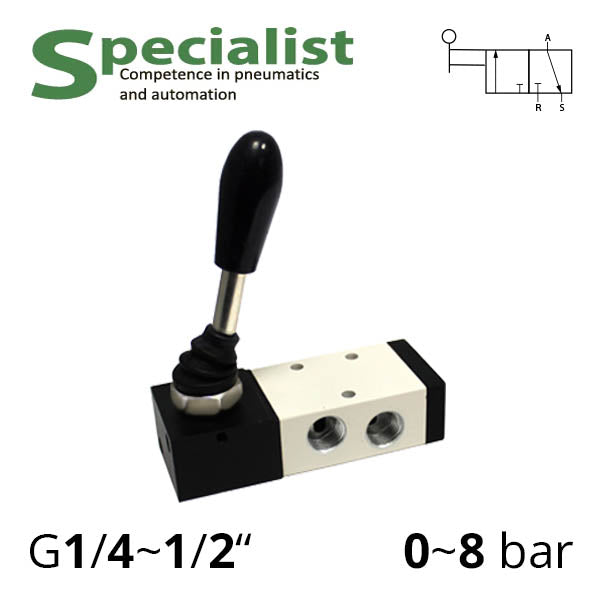

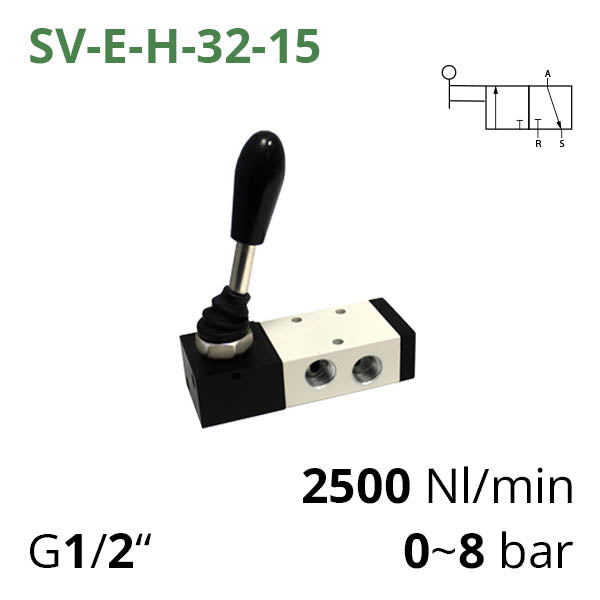

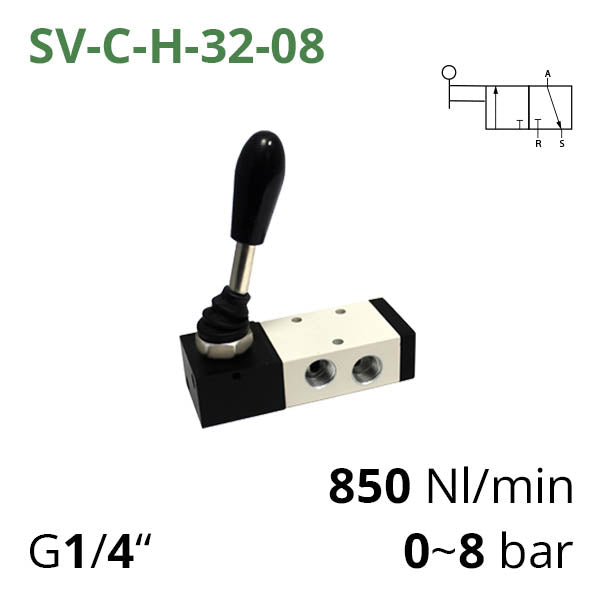

| Model | SV-C-H_-32__-08 | SV-D-H_-32__-10 | SV-E-H-32__-15 |
|---|---|---|---|
| Number of Lines/Positions | 3/2 | 3/2 | 3/2 |
| Effective Cross-Sectional Area | 16 mm2 (CV=0.89) | 30 mm2 (CV=1.67) | 50 mm2 (CV=2.79) |
| Inlet Connection | G1/4" | G3/8" | G1/2" |
| Outlet Connection | G1/4" | G3/8" | G1/2" |
| Exhaust Outlet | G1/4" | G3/8" | G1/2" |
| Nominal Flow Rate | 850 L/min | 1400 L/min | 2500 L/min |
| Working Medium | Air, Filtration Fineness not less than 40 Micron | ||
| Control Type | Manual Control (Manual Lever) | ||
| Operating Pressure Range | 0-8 bar | ||
| Max. Inlet Pressure | 12 bar | ||
| Operating Temperature Range | -5...+50 °C (in Dry Air without Moisture) | ||
