Thread
G 1/2", G 1"
Do you have any questions about the product?
We will be happy to answer them in messengers

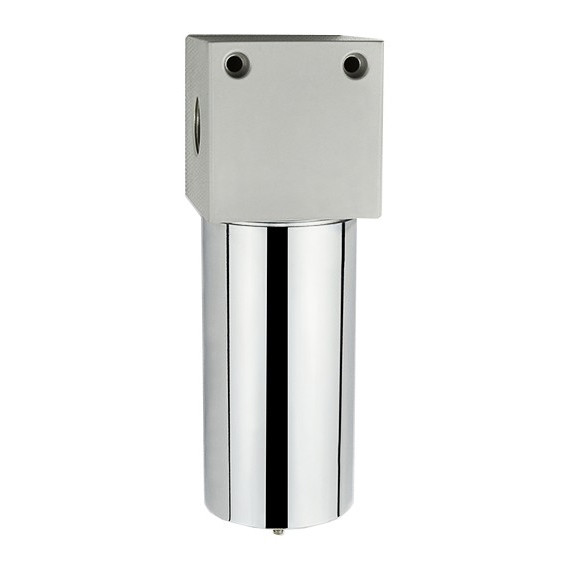

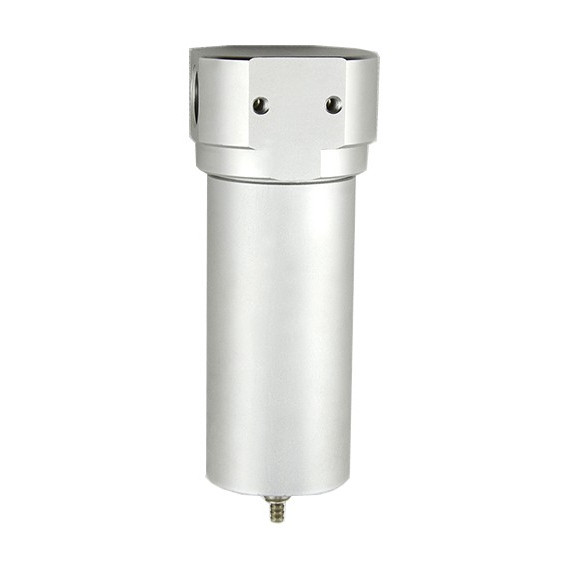

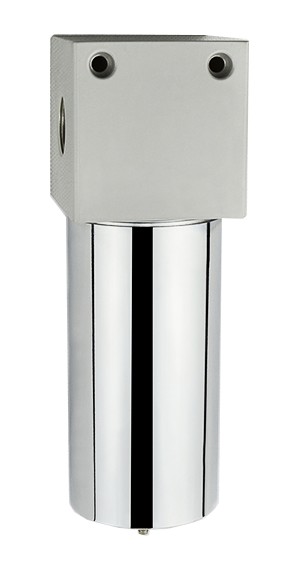

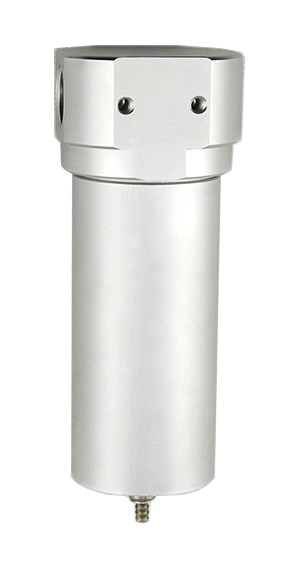

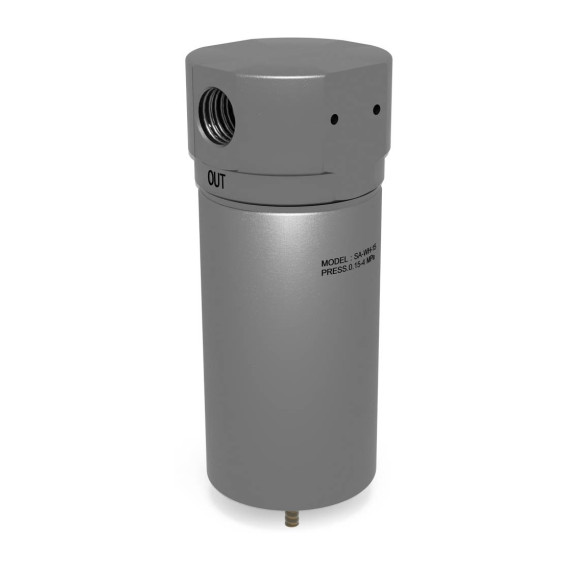

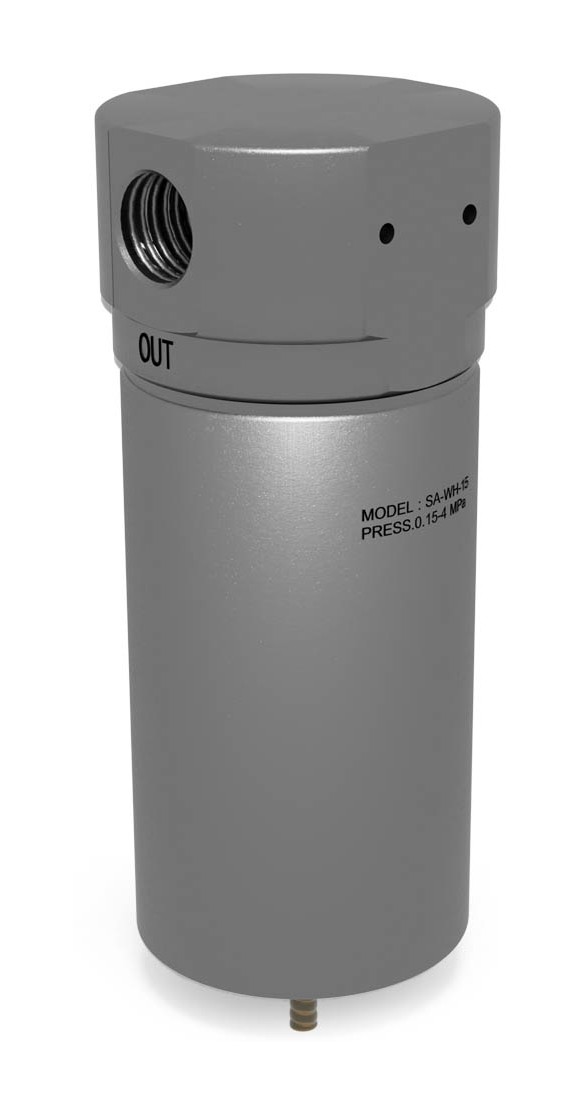

High pressure compressed air filter 25 µm, 35 bar, 1/2″~1″ (SA-FH)
In Stock
Entrance-exit
Model
SA-FH-15
Manufacturer
Specialist
from 3 634,08 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Models
Found 2 variants
Name
Model
Price
Availability
Qty
Action
SA-FH-25
High pressure compressed air filter 25 µm, 35 bar, 1/2″~1″ (SA-FH)
Entrance-exit=G 1
SA-FH-25
7 276,50 UAH
In Stock
SA-FH-15
High pressure compressed air filter 25 µm, 35 bar, 1/2″~1″ (SA-FH)
Entrance-exit=G 1/2
SA-FH-15
3 634,08 UAH
In Stock
Request a variant
Fill in the form and we will get back to you regarding this variant.
Technical specifications
Description
Industrial air filters of the SA-FH series are designed to clean compressed air from moisture and solid particles. They are notable for their ability to operate in systems with high pressure — up to 40 bar (4 MPa). These air filters are often used in equipment for blowing PET containers, where the pressure is about 25-40 bar.
The filters have a semi-automatic condensate drain — when the air supply is stopped and the pressure drops below 2 bar, the drain valve opens and moisture is released from the bowl.
SA-FH Delivery Set:
- High pressure filter of the SA-FH series
- Mounting
Advantages of the SA-FH Series Filters
- FH series filters withstand high pressure compared to conventional FM, FU, FN series filters;
- The filter is user-friendly and connects to the pneumatic line via threaded connections;
- Optimal balance of price and reliability.
| Working Medium | Air |
| Design | Cyclonic Type |
| Connection | G3/8”- G1” |
| Mounting | Vertical |
| Maximum Input Pressure | 40 bar |
| Working Pressure Range | from 0 to 35 bar |
| Filtration Fineness | 25 μm |
| Working Temperature Range | 0~60 °C |
| Condensate Drainage | Semi-automatic |
