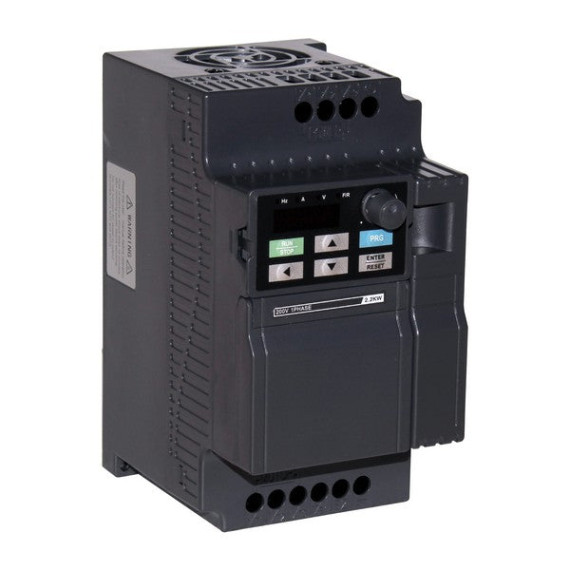

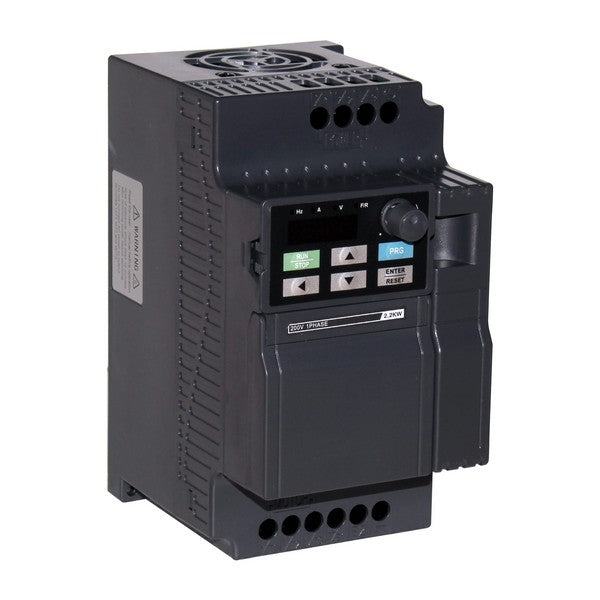

Vector frequency converter 220 to 380, 1.5 kW of the SPLC-NZ2200 series is designed for controlling the speed of three-phase asynchronous motors with a power up to 1.5 kW.
The feature of this converter is the built-in block for increasing the output voltage. The inverter is connected to a regular single-phase network 220 V, and to the working output - a three-phase motor 380 V with a "star" connection scheme of windings (necessary for maintaining the nominal torque on the shaft).
This model of frequency converter SPLC-NZ2200-1R5GS2 has protection degree IP20. Therefore, it is recommended to install it on a DIN-rail in specialized cabinets for protection from dust and moisture.
The control panel, if necessary, can be removed and brought to the front panel of the cabinet. Cable and mounting are not included in the price, supplied by order.
Table — Main technical parameters of the inverter SPLC-NZ2200-1R5GS2
| Input Voltage |
1ph 220 V
|
| Output Voltage |
3ph 380 V
|
| Output Power |
1.5 kW
|
| Output Frequency Range |
from 1 to 800.0 Hz
|
| Protection Degree EN 60529
|
IP20 |
Additional Information
Power circuit of frequency converters SPLC-NZ2200-1R5GS2:
- Input power from single-phase network 1ph 220 V AC 50/60 Hz;
- Output to motor - 3ph, line output voltage is from 0 to 380 V, and frequency - in the range from 1 to 800 Hz;
- Permissible overload for 60 s - up to 150% of nominal current value (in constant load mode)
Control circuit SPLC-NZ2200-1R5GS2:
- 6DI — six digital inputs, the function of which can be determined independently by selecting in the menu. For example, a digital input can be used for start command, forward run, reverse, stop, skipping JOG frequency, switching between frequency sources X and Y, switching between 16 preset speed frequency values, switching between 4 acceleration and braking modes, remote increase/decrease frequency, timer start, activation of PID regulation, built-in controller program, etc.
- 2AI — two inputs, one of which can be switched using the J jumper and receive an appropriate analog signal with current 4…20 mA or voltage 0…10 V, and the other supports 0…10 V;
- 2DO — two multifunctional digital outputs, one of which is relay-based, which can be used for output signal ON-OFF about operational status, frequency or time counter attainment, program step or cycle completion in PLC;
- 1AO — one output that supports an analog signal with current 4…20 mA or voltage 0…10 V;
- RS485 — RS485 serial port connector for integration in industrial frequency converter set NLP, controllers, industrial PCs etc.
You can buy the frequency converter SPLC-NZ2200-1R5GS2 with a power of 1.5 kW from "Specialist" company with delivery to Kyiv, Dnipro, Kharkiv, and other cities in Ukraine. Check delivery time with store managers.
