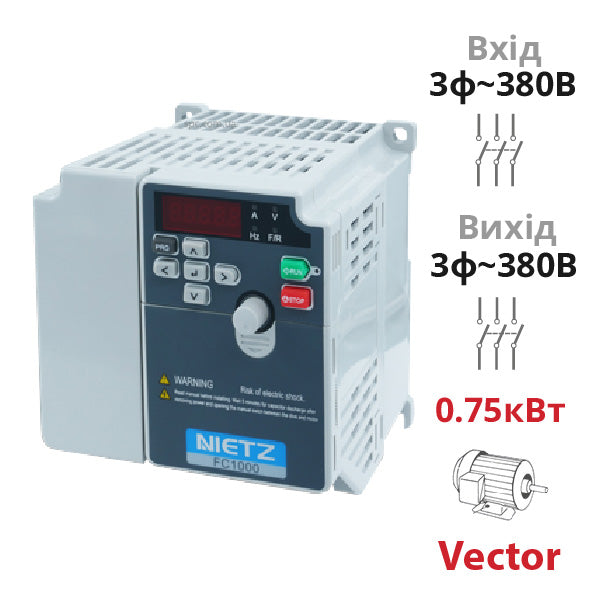

Reliable frequency converter with built-in EMC filter SPLC-FC1000-0R75G4 is powered by a three-phase network 380 V and uses vector control for three-phase asynchronous motors with power up to 0.7 kW voltage 380 V. Additionally, with an extra card, this converter can be connected to machines with permanent magnets.
SPLC-FC1000-0R75G4 supports several operating modes:
-
Vector control without encoder in open loop provides precise current vector control of asynchronous motor 0.7 kW and maintains its torque;
-
Vector control with encoder requires PG card installation. Rotational speed monitoring increases accuracy for speed control and allows precise torque control of asynchronous motor 0.7 kW. This mode supports synchronous motors up to 0.7 kW.
-
Scalar control V/F can be enabled for controlling asynchronous machine 0.7 kW with non-inertial load (small pumps and fans).
Brief overview of reliable frequency converter SPLC-FC1000-0R75G4:
- Mounting in protective cabinet on DIN rail;
- Front panel features a 5-character LED display and indicators for settings and control parameters display. Convenient input buttons and potentiometer handle for manual motor speed setting
- Option to connect an external control panel with RJ45 interface;
- Power terminals are closed to prevent accidental contact. STO jumper (safe torque off) can be used as an additional motor safety measure — while the jumper is installed, the frequency inverter's output is blocked. Earthing of power circuit provided.
Table — Main Technical Specifications of SPLC-FC1000-0R75G4 Converter
| Input Voltage |
3ph 380 V
|
| Output Voltage |
3ph 380 V
|
| Output Power |
up to 0.75 kW
|
| Range of output frequency for vector control |
from 0 to 600 Hz
|
|
| Range of output frequency for V/F control |
from 0 to 3200 Hz
|
|
| Rated Input Current |
3.8 A
|
| Rated Output Current |
2.1 A
|
| Protection Class EN 60529 |
IP20 |
Allowable overload in mode G (General) — 150% of nominal current for no more than 60 s, 180% of nominal current for no more than 3 s.

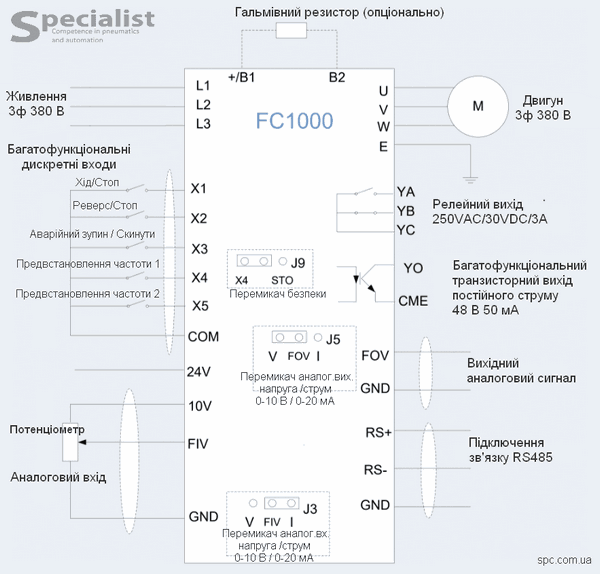

Connection schematic SPLC-FC1000-0R75G4
Control circuit for frequency inverter SPLC-FC1000-0R75G4:
- 5 discrete inputs, the function of which can be defined through a menu
- 1 analog input 0…10 V or 0…20 mA (switchable via terminal blocks J3)
- 1 relay output
- 1 transistor output, its function is set in the menu
- 1 analog output 0…10 V or 0…20 mA (switch J5)
- RS485 communication. Additional expansion boards allow installation of EtherCAT, Profibus-DP, CAN interfaces on request.
