Vector frequency converter 2.2 kW, 1F-3F 220V (SPLC-KD100-2S-2.2G)

Do you have any questions about the product?
We will be happy to answer them in messengers

Vector frequency converter 2.2 kW, 1F-3F 220V (SPLC-KD100-2S-2.2G)

Name: Vector frequency converter 2.2 kW, 1F-3F 220V (SPLC-KD100-2S-2.2G)
Brand: Specialist
SKU: SPLC-KD100-2S-2.2G
Price: 9614.46 UAH
Availability: InStock

In Stock

Product Code:

SPLC-KD100-2S-2.2G

Brand:

Specialist

9 615,96 UAH

9 614,46 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Operating mode

Scalar control

Output frequency

0.0 to 600 Hz

Output voltage

3ph 220V

Supply voltage

1ph 220V

Power

2.2 kW

Description

Compact vector frequency inverter 2.2 kW 220 Volts with effective braking from the SPLC-KD100-2S-2.2G series powered by a single-phase input of 220 V and designed for speed regulation of three-phase asynchronous motors 220 V. This frequency inverter can switch between modes and control motors in a simple to set up voltage-frequency mode, or maintain precise vector speed control with deviation of less than 0.2%. With the purchase of a PG expansion board, the device can also control torque accurately. Features of low-power frequency inverters SPLC-KD100-2S-2.2G — capability to connect an external braking resistor.

Table — Technical parameters of frequency inverters SPLC-KD100-2S-2.2G
Input Voltage	1F 220 V
Output Voltage	3F 220 V
Output Power	2.2 kW
Output Frequency Range	from 0 to 600.0 Hz
Protection Degree EN 60529	IP20

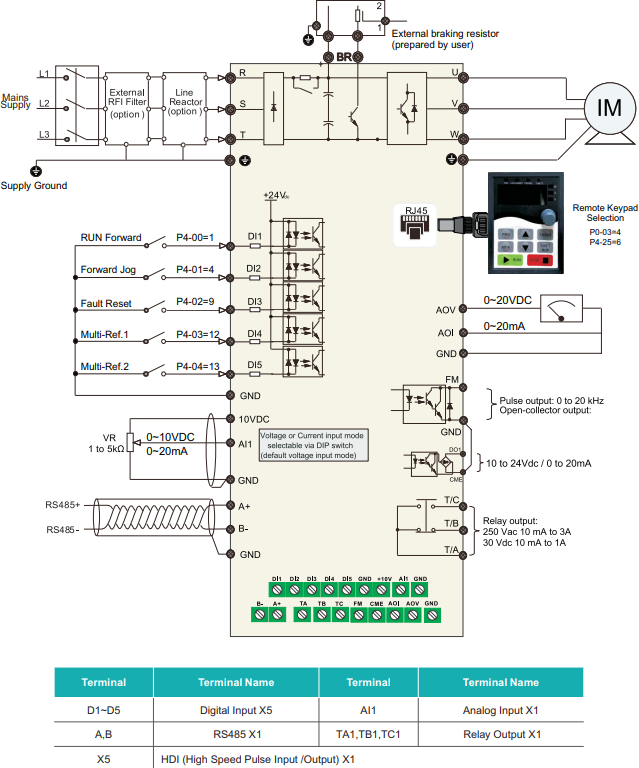

Functions of the frequency inverter SPLC-KD100-2S-2.2G:

Customizable inputs and outputs:
- 5 discrete inputs
- 1 analogue input for potentiometer (jumper placement for current or voltage input)
- 1 analogue output 0…20 mA or 0…20 V DC
- 1 high-speed pulse output 0…20 kHz (open collector)
- 1 relay output
RS485 communications port (Modbus)
Built-in braking unit (recommended resistor by manufacturer is 100 Ohm and 300 W). Acceleration and braking time up to 999 sec, linear and S-curve graphs
PID control functions, time monitoring, duration counter
Increasing starting torque to 30%
Overload capacity of 150% of nominal current for no more than 60 sec
