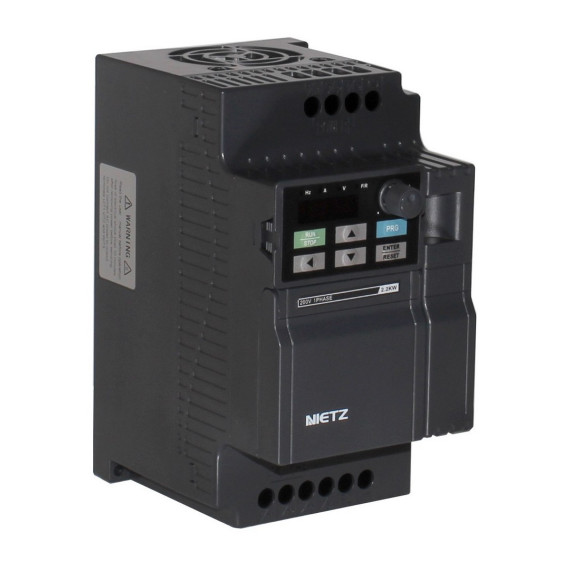

Vector frequency inverter 220 to 380, 15 kW of the SPLC-NZ2200 series is designed for controlling the rotation speed of three-phase asynchronous motors with a power of up to 15 kW.
This inverter features a built-in block for boosting output voltage. The frequency converter is powered by a standard single-phase network 220 V, and the working output is connected to a three-phase motor 380 V with a "star" winding connection scheme (necessary to maintain the rated torque on the shaft).
This model of frequency inverter SPLC-NZ2200-15GS2 has a protection degree of IP20. It is recommended to install it on a DIN rail in specialized cabinets for protection against dust and moisture.

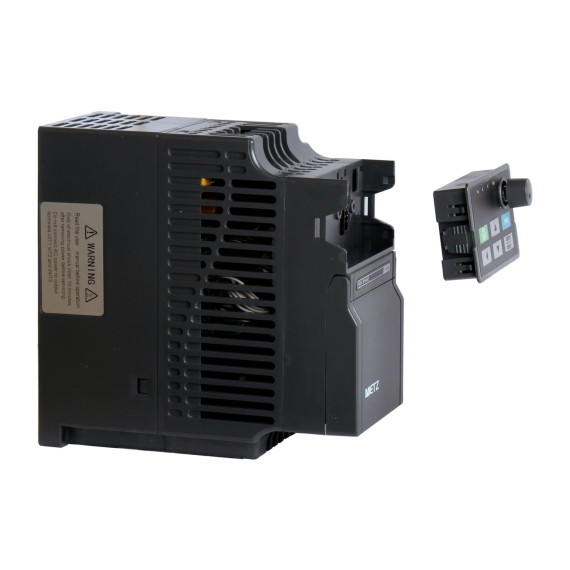

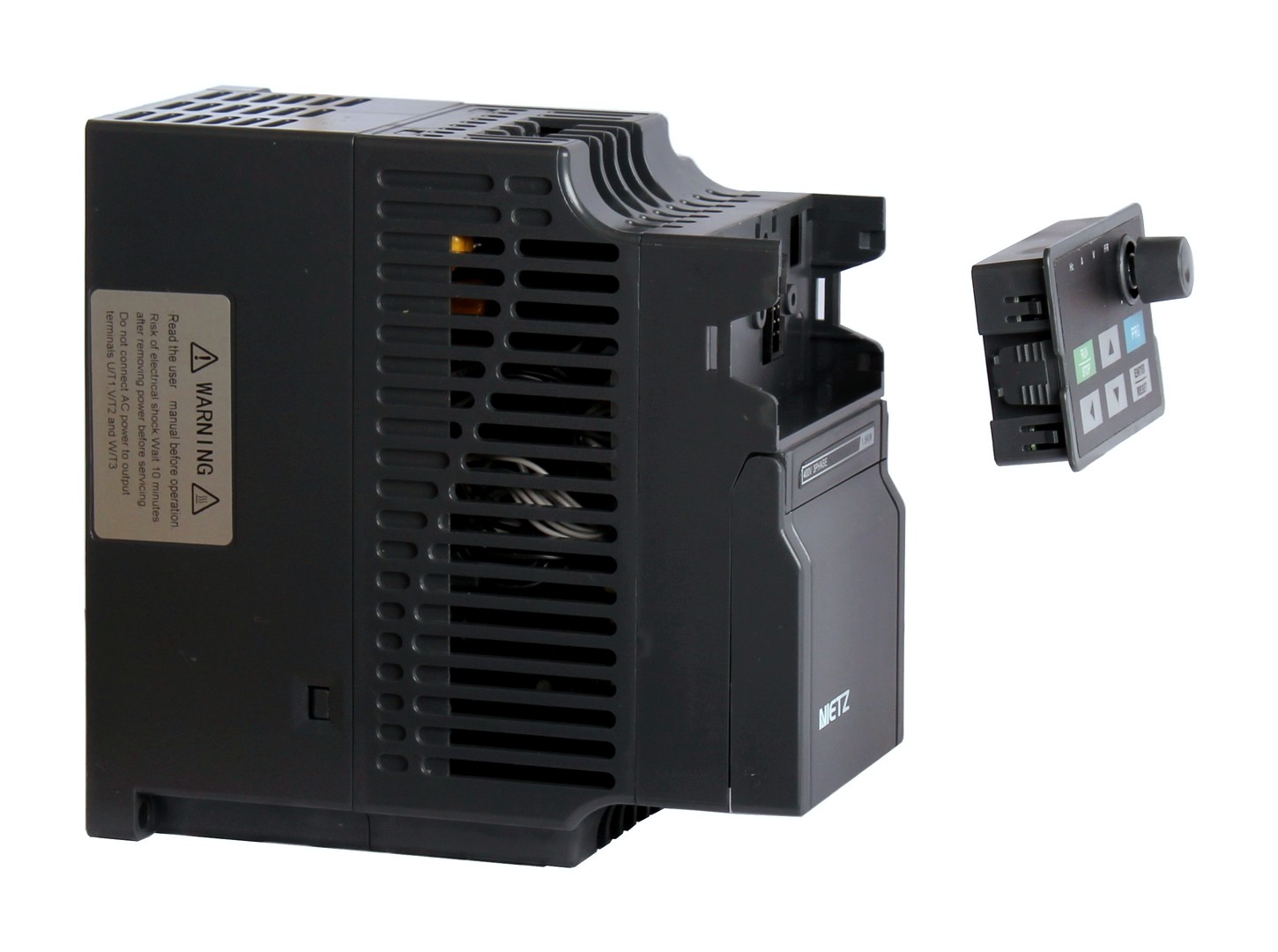

The control panel, if necessary, can be removed and mounted on the front panel of the cabinet. Cable and brackets are not included in the price, and are supplied on order.
Table — Main Technical Specifications of the Inverter SPLC-NZ2200-15GS2
| Input Voltage |
1ph 220 V
|
| Output Voltage |
3ph 380 V
|
| Output Power |
15 kW
|
| Output Frequency Range |
from 1 to 800.0 Hz
|
| Protection Degree EN 60529
|
IP20 |
Additional Information
Power Circuit of Frequency Converters SPLC-NZ2200-15GS2:
- Input power from a single-phase network 1ph 220 V AC 50/60 Hz;
- Output to the motor - 3ph, linear output voltage ranges from 0 to 380 V, and frequency - in the range from 1 to 800 Hz;
- Permissible overload for 60 s - up to 150% of the rated current value (in constant load operation mode)
Control Circuit SPLC-NZ2200-15GS2:
- 6DI — six digital inputs, whose function can be independently defined through menu selection. For instance, a digital input can be used for start command, forward run, reverse, stop, frequency hopping JOG, switching between frequency source X and Y, switching between 16 preset speed frequency values, switching between 4 acceleration and deceleration modes, remote increase/decrease of frequency, timer start, enabling PID regulation, built-in controller program, etc.
- 2AI — two inputs, one of which can be switched using jumper J to accept a relevant analog signal by current 4…20mA or voltage 0…10V, while the other supports 0…10V;
- 2DO — two multifunctional digital outputs, one of which is relay that can be used for output signal ON-OFF regarding operational status, frequency or counter achievement, step or cycle completion of the PLC program;
- 1AO — one output that supports analog signal by current 4…20mA or voltage 0…10V;
- RS485 — RS485 serial port connector for integration into the industrial set of frequency converters, NLP, controllers, industrial PCs, etc.
You can purchase the frequency inverter SPLC-NZ2200-15GS2 power 15 kW from "Specialist" with delivery to Kyiv, Dnipro, Kharkiv, and other cities in Ukraine. Check delivery time with the online store managers.
Attention! Confirm the possibility of connecting a braking resistor to this model.
In Stock
