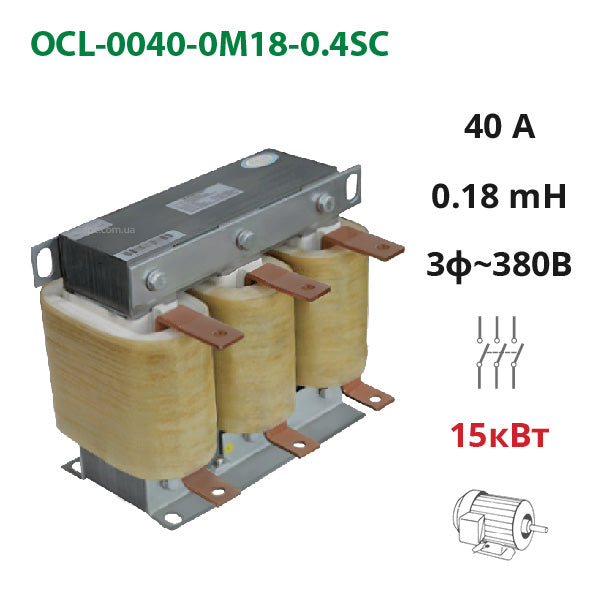

Motor (output) choke 40A, 380V, 15 kW, 0.18 mH (OCL-0040-0M18-0.4SC)
In Stock
Product Code:
SPLC-OCL-0040-0M18-0.4SC
Brand:
Specialist
7 764,78 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Three-phase Motor Choke 40A, 380V, 15 kW, 0.18 mH OCL-0040-0M18-0.4SC is installed at the output of a frequency converter to filter the current supplied to three-phase electric motors at 380V. The purpose of the output electrodime is as follows:
- Creating inductive resistance that limits the motor supply current, thus preventing overload and damage;
- Preventing sudden current surges during motor startup that can disable equipment;
- Cleaning the current sine wave from unwanted high harmonics (high-frequency noise) that occur in the electric drive.
Use the AC output choke in the circuit between the frequency converter and the asynchronous electric motor to improve the power supply quality of the drive, as well as for safe and long-term operation of the equipment.
Technical Specifications of Motor Output Choke OCL-0040-0M18-0.4SC
| Operating Voltage | 3 Phases 380 V |
|---|---|
| Voltage Drop | 1% for 380 V (less than 4%) |
| Operating Frequency | 50/60 Hz |
| Operating Current | 40 A |
| Maximum Current | can exceed operating by no more than 150% for 60s |
| Inductance | 0.18 mH |
| Insulation Class | F, H |
| Protection Class | IP00 - IP22 |
| Noise Level | ≤65 dB |
| Temperature Rise | ≤85 K |
| Dielectric Strength | AC 3000 V/50 Hz/5 mA/10 s |
| Insulation Resistance | 100 VDC, ≤100 MOhm |
| Operating Ambient Temperature | -25 ~ +45℃ |
Operating Conditions of Motor Choke (Line Reactor) OCL-0040-0M18-0.4SC
- Within a temperature range from minus 10 to 45℃ the nominal parameters of the choke are tabulated. At temperatures above 55℃, the nominal current decreases roughly by 2% with each additional +1℃.
- Altitude should not exceed 2000 meters above sea level.
- Air humidity less than 90%.
- Environment: free of harmful gases, flammable objects, with good ventilation.
When placing the choke in a cabinet, it is necessary to ensure ventilation for sufficient cooling of the equipment.
