Multi-functional frequency inverters of the SPLC-AT20-2R2G2 series are designed for connection to a single-phase network 220 V and control of three-phase asynchronous motors with power up to 2.2 kW (depending on the selected model of the frequency inverter). These frequency inverters are used to control conveyors, machine drives, and other loads where it is necessary to maintain torque over a wide range of engine speeds with low and infrequent overloads.
Frequency inverters SPLC-AT20-2R2G2 with power up to 2.2 kW use vector control mode V/f by default.

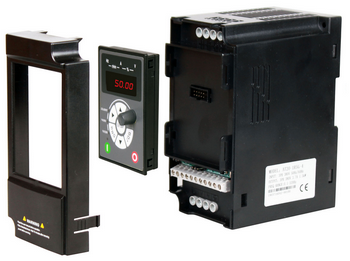

The models of frequency inverters SPLC-AT20-2R2G2 have a protection rating of IP20, so it is recommended to install them on a DIN rail in specialized cabinets for protection against dust and moisture. The removable control panel, located on the front panel of the cabinet, simplifies setup.
Table — Main technical parameters of SPLC-AT20-⬜2 inverters
| Input Voltage |
1ph 220 V
|
| Output Voltage |
3ph 220 V
|
| Output Power |
2.2 kW
|
| Output Frequency Range |
from 0 to 600.0 Hz
|
| Protection Degree EN 60529 |
IP20 |
Functions of frequency inverters SPLC-AT20:
- The specified output frequency can be a digital parameter, come in the form of an analog signal of current (or voltage), pulse. The design of the control inputs of the frequency inverter allows you to choose the type of input signal: NPN or PNP;
- Selection of the main frequency source channel X and additional Y channel, calculation operations (sum, difference, maximum, minimum), and switching between sources;
- Up to 15 digital frequency settings for timed start with a step from 0 to 6500 seconds or from 0 to 6500 hours (time unit is chosen in settings);
- Control of multiple pumps or fans in V/f mode;
- Selection of frequency characteristic V/f control: standard linear, multipoint, quadratic, or with coefficients 1.2, 1.4, 1.6, 1.8;
- Straight-line and S-curve acceleration-braking characteristics;
- Automatic and manual torque boost 0...30%;
- Stopping the engine by DC braking;
- Automatic Voltage Regulation (AVR);
- Sleep mode, activation during sleep to protect the water supply system from freezing;
- JOG mode;
- User password request function for access to inverter menu
Package contents
- Vector frequency inverter of the SPLC-AT20 series
- Removable control panel (installed on the frequency inverter)
Advantages
- AT20 series frequency converters have a high-performance processor and various functions, which allow precise control of low-power motors
Technical specifications of models
Table 1 — Frequency inverter model selection SPLC-AT20-⬜2
| Model |
Rated input current, A |
Rated output current, A |
Rated output power, kW |
| SPLC-AT20-0R4G2 |
5.4 |
2.5 |
0.4 |
| SPLC-AT20-0R7G2 |
7.2
|
5
|
0.75
|
| SPLC-AT20-1R5G2 |
10
|
7
|
1.5
|
| SPLC-AT20-2R2G2 |
16
|
11
|
2.2
|
| SPLC-AT20-3R7G2 |
17
|
16.5
|
3.7
|
