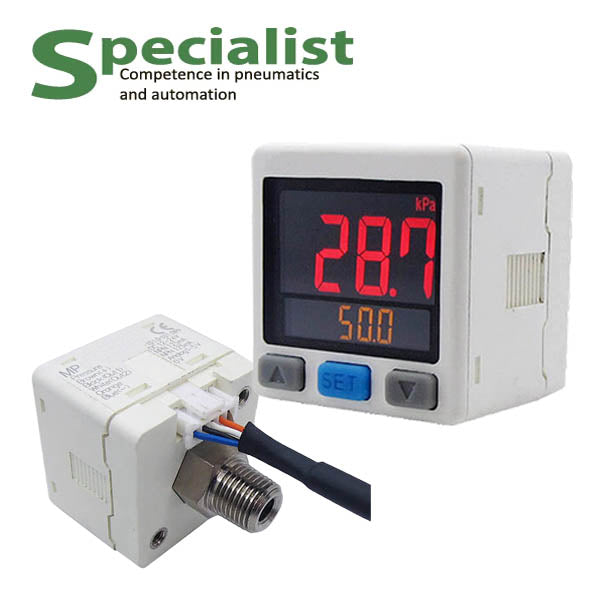

Electronic Digital Manometer SA-DPS-310GX combines the functions of a manometer with a digital display and pressure relay. It measures excess and vacuum pressure in the range of -1 to 10 bar, providing pneumo-electrical conversion of indicators and their display on a two-colour LCD. Two discrete transistor outputs NPN and PNP allow pressure control over the upper and lower set limits. This allows integration into a pneumatic system in a SCADA production management system.
The electronic vacuum gauge of the SA-DPS-310GX series can be used independently or in combination with the precision pressure regulator SA-RP.
For additional convenience, the air pressure sensor is equipped with a protective setting lock and a power-saving mode that reduces energy consumption by up to 20%.
The display of the electronic air pressure sensor (digital vacuum gauge) SA-DPS-310GX shows pressure in seven measurement units, including kPa, MPa, bar, kgf/cm², mmHg, inchHg, and psi. The industrial digital manometer has a default external pipe thread of G1/8", but other options (R 1/8", NPT 1/8") and internal M5 are available.
The digital pressure relay can be used as a vacuum switch under negative pressure. Two digital outputs (PNP and NPN), two-colour display (red/green), electrical connection: rear plug connector, cable.
Various mounting options: mounting bracket / panel mounting. The digital vacuum manometer also has a function for copying settings from one sensor to another and a button lock function to prevent unauthorized changes to settings.
Table 1 – Operating Parameters of Electronic Manometer SA-DPS-310GX
| Model |
SA-DPS-310GX |
| Measurement Range |
0.100MPa ~ 1.000MPa |
| Setting Range |
0.100MPa ~ 1.000MPa |
| Maximum Pressure |
1.500MPa |
| Working Medium |
Clean compressed air, non-corrosive non-flammable gases |
| Measurement Accuracy |
±2% of Full Scale (Ambient Temperature 25°C) |
| Temperature Error |
±3% of Full Scale (Temperature Range 0 ~ 50°C) |
| Measurement Mode |
Main Mode, Hysteresis Mode, Upper and Lower Limit Comparison Mode |
| Port Size |
External R1/8, NPT1/8, G1/8, Internal Thread M5 |
| Status Indication |
4-digit Measurement Value, Unit Indication, Output Status Indication |
| Display Mode |
Adjustable Backlight, 4 Groups of Display Models |
| Voltage Range |
12 ~ 24VDC ±10% |
| Power Consumption |
Max. 40mA (No Load) |
Table 2 - Discrete Outputs and Environmental Resistance for SA-DPS-310GX
| Model |
SA-DPS-310GX |
| Discrete Output Type |
NPN Open Collector Output and PNP Open Collector Output |
| Max. Output Current |
80mA |
| Voltage Drop |
≤1V |
| Response Time |
Adjustable: 2.5ms, 20ms, 100ms, 500ms, 1000ms, 2000ms |
| Short Circuit Protection |
Yes |
| Protection Level |
IP40 |
| Operating Temperature |
Operating Temperature 0 ~ 50°C, Storage Temperature -20 ~ 60°C |
| Operating Humidity |
Operating Humidity 35 ~ 80%RH |
| Insulation Voltage |
1000VAC 1 min |
| Insulation Resistance |
≥50MΩ (500VDC) |
